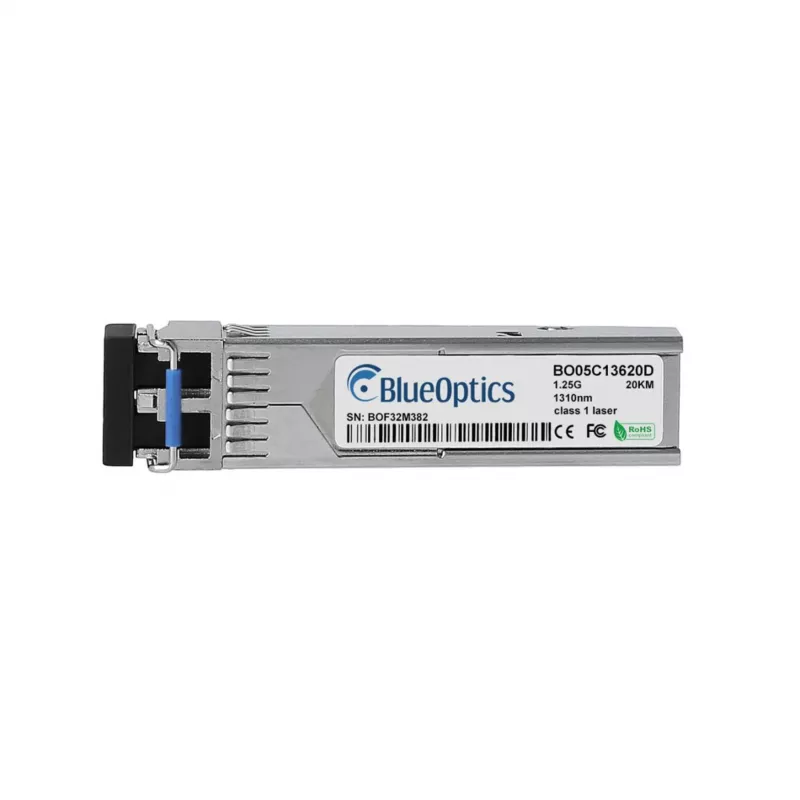

BlueOptics BO05C13620D Transceptor SFP compatible con TP-Link SFP-1G-LX-20KM, LC Dúplex, 1000BASE-LX, Monomodo, 20 km, 1310 nm

The BlueOptics BO05C13620D is a high-performance SFP transceiver designed to be fully compatible with TP-Link SFP-1G-LX-20KM equipment. It delivers reliable Gigabit Ethernet connectivity over single-mode fiber at distances up to 20 km. This hot-swappable module features an LC duplex connector, operates at a wavelength of 1310 nm, and supports Digital Diagnostic Monitoring (DDM) for real-time performance monitoring. Ideal for enterprise networks, data centers, and telecommunications, it offers a cost-effective alternative to OEM modules without compromising quality or performance.

Advantages

Cost-effective compatible alternative to TP-Link original modules, fully MSA compliant for seamless integration. Supports DDM/DOM for proactive network management. Low power consumption (<1W) and extended temperature range (0°C to 70°C) ensure reliable operation in various environments.

Suitable for

• Gigabit Ethernet connections in enterprise LANs and data centers
• Fiber Channel storage area networks
• Telecommunications and service provider networks
• Upgrading or expanding existing fiber optic infrastructure

Key specifications

• Form Factor: SFP (Small Form-Factor Pluggable)
• Data Rate: 1.25 Gbps
• Standard: 1000BASE-LX
• Connector: LC Duplex
• Fiber Type: Single-Mode (OS2)
• Max Distance: 20 km
• Wavelength: 1310 nm
• DDM/DOM: Yes
• Hot-Pluggable: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: <1W
• Compliance: MSA, RoHS, CE, FCC

Recommendations

For optimal performance, use with single-mode fiber (OS2) and ensure proper cleaning of LC connectors. This module is a direct replacement for TP-Link SFP-1G-LX-20KM and is backed by BlueOptics' quality guarantee.
