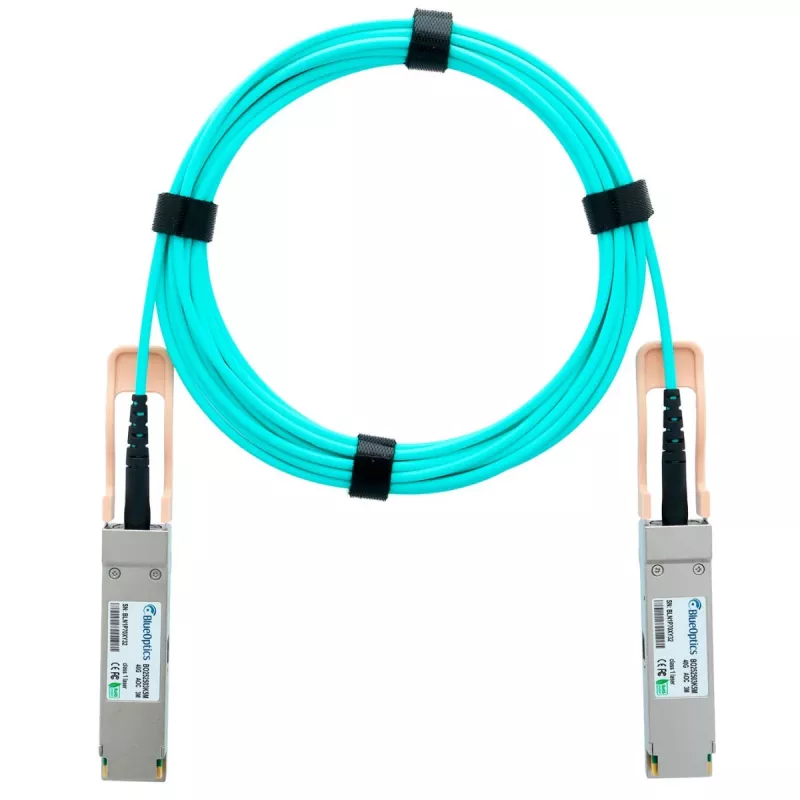

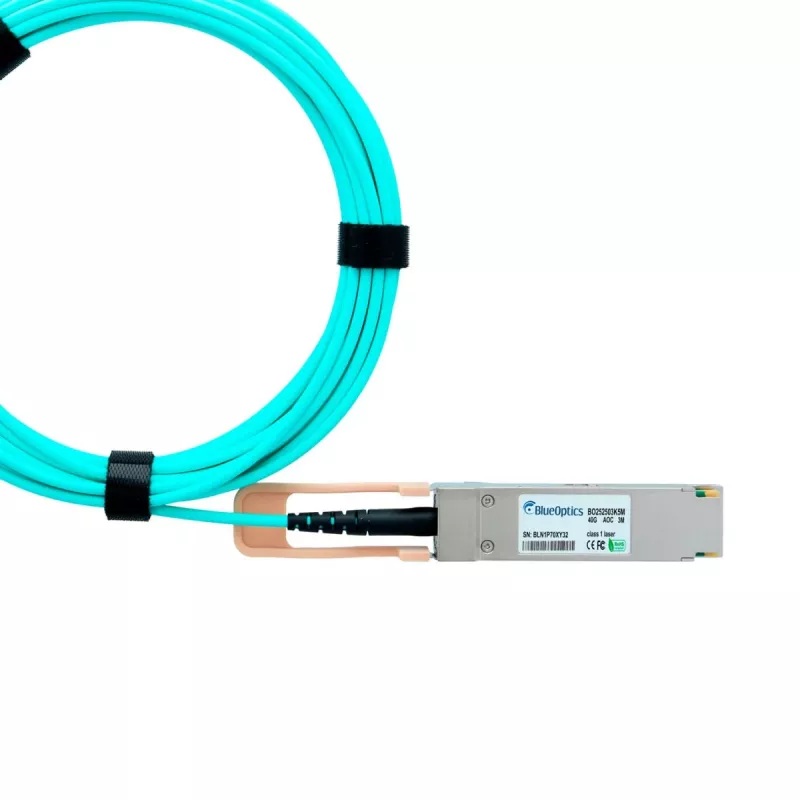

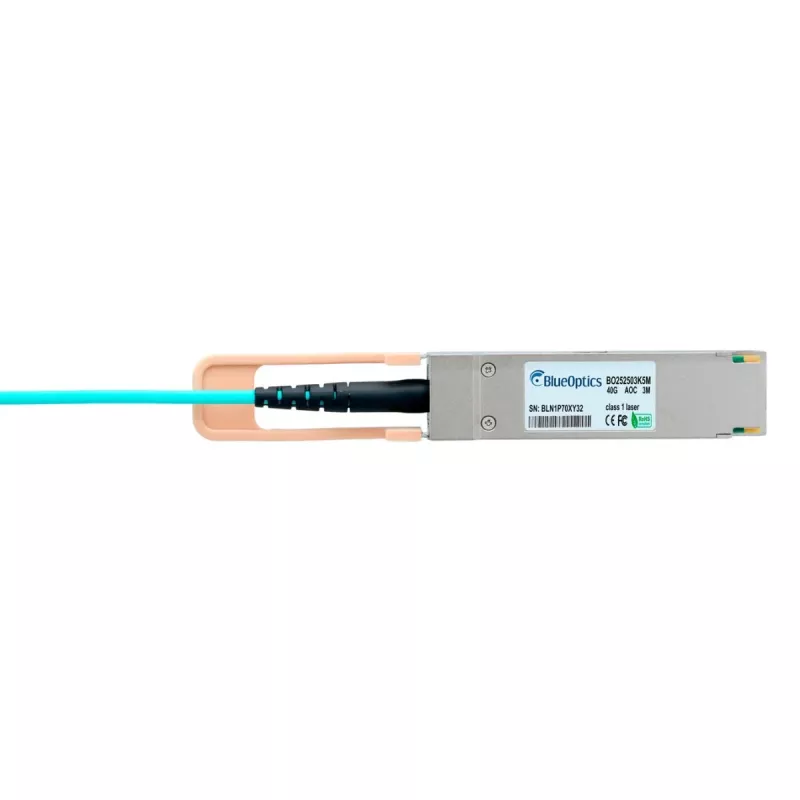

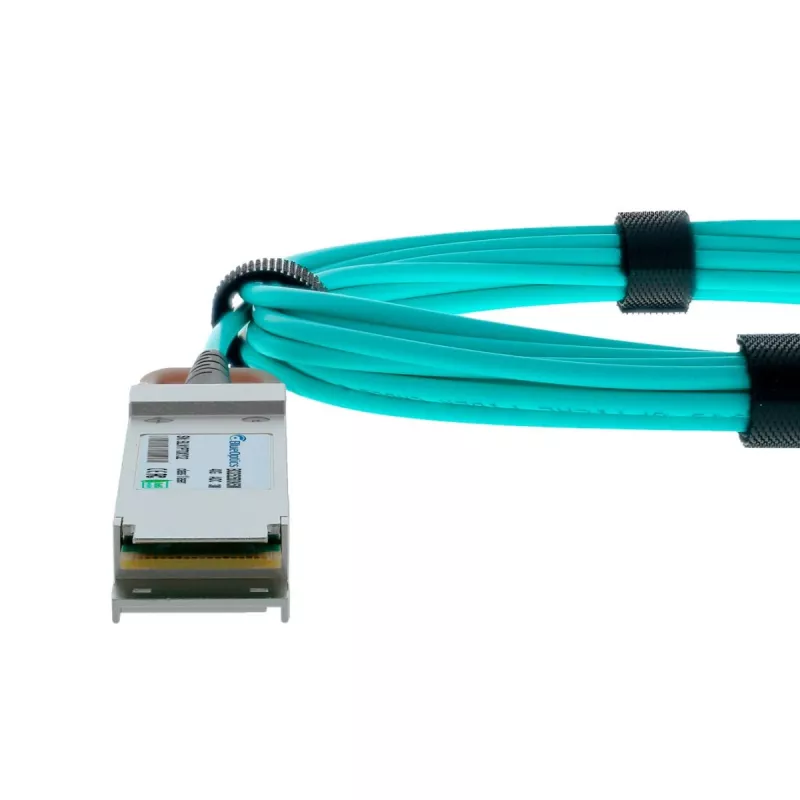

BlueOptics BO252503K1M Ruckus 40G-QSFP-QSFP-AOC-0101 Active Optical Cable 1m compatible

The BlueOptics BO252503K1M is a high-performance active optical cable (AOC) designed for 40 Gigabit Ethernet connectivity. It is fully compatible with Ruckus 40G-QSFP-QSFP-AOC-0101 equipment, providing a reliable and efficient solution for data center and enterprise networking applications. With a length of 1 meter, this cable offers a cost-effective and power-efficient alternative to traditional copper cables, supporting high-speed data transmission over multi-mode fiber.

Advantages

This active optical cable delivers several key benefits: low power consumption (<1.5W per end), hot-swappable design for easy installation, and compliance with MSA, RoHS, CE, and FCC standards. It supports IEEE 802.3ba 40GBASE-SR4, ensuring seamless integration into existing networks. The PVC jacket provides durability and flexibility, while the 5-year warranty guarantees long-term reliability.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise network backbone links
• Ruckus networking equipment requiring 40G-QSFP-QSFP-AOC-0101 compatibility

Key specifications

• Cable Type: Active Optical Cable (AOC)
• Connector Type A: QSFP+
• Connector Type B: QSFP+
• Data Rate: 40 Gigabit Ethernet (40GbE)
• Cable Length: 1 meter (3.3 feet)
• Fiber Type: Multi-mode Fiber (MMF)
• Wavelength: 850nm
• Power Consumption: <1.5W per end
• Supply Voltage: 3.3V
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: MSA, RoHS, CE, FCC
• Ethernet Standard: IEEE 802.3ba 40GBASE-SR4
• Jacket Material: PVC
• Warranty: 5 Years

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP+ ports. This cable is ideal for short-reach, high-bandwidth applications within racks or between adjacent racks. BlueOptics offers a wide range of optical transceivers and cables to meet your networking needs.
