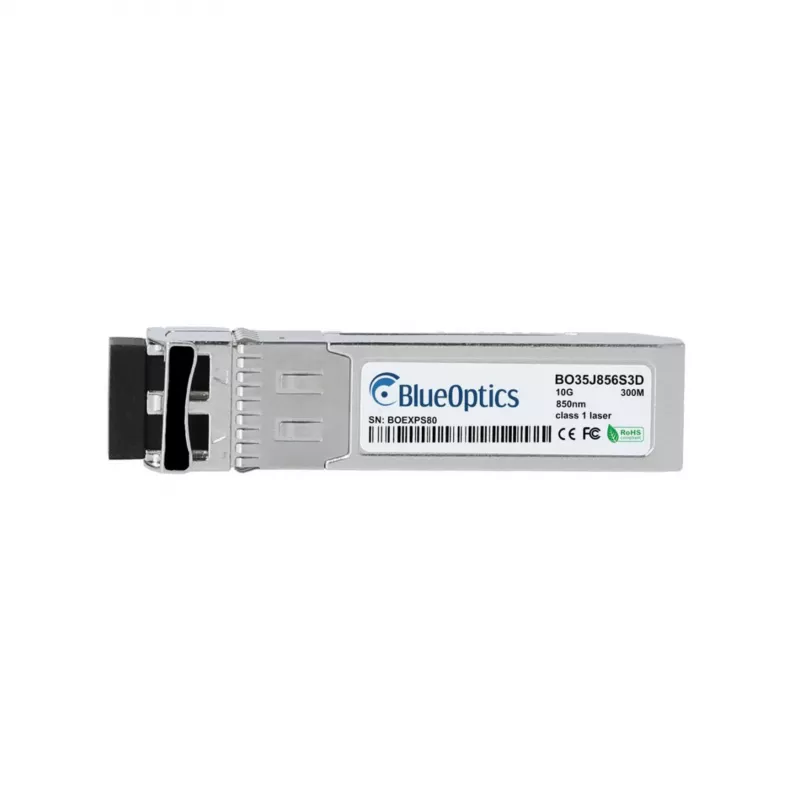

BlueOptics BO35J856S3D Compatible Ruckus 10G-SFPP-SR-S Transceptor SFP+, LC Dúplex, 10GBASE-SR, Multimodo, 850nm, 300m

The BlueOptics BO35J856S3D is a high-performance SFP+ transceiver designed for compatibility with Ruckus 10G-SFPP-SR-S equipment. It delivers reliable 10 Gigabit Ethernet connectivity over multimode fiber, supporting 10GBASE-SR standards with a maximum distance of 300m on OM3 fiber (400m on OM4). This hot-pluggable module features an LC duplex connector, low power consumption under 1W, and Digital Diagnostic Monitoring (DDM) for real-time performance tracking. Ideal for data centers, enterprise networks, and storage area networks.

Advantages

Cost-effective alternative to OEM modules with full compatibility and performance. Supports hot-swapping for minimal network downtime. Built with a durable zinc alloy housing and VCSEL laser technology for long-lasting reliability. Backed by CE, FCC, and RoHS certifications.

Suitable for

• Data center interconnects
• Enterprise network uplinks
• Storage Area Networks (SAN)
• High-speed server connections

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Standard: 10GBASE-SR
• Wavelength: 850 nm
• Max Distance: 300m (OM3), 400m (OM4)
• Connector: LC Duplex
• Fiber Type: Multimode (MMF)
• DDM/DOM: Yes
• Hot-Pluggable: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 1W
• Laser Type: VCSEL
• Supply Voltage: 3.3V
• MTBF: > 1,000,000 hours

Recommendations

For optimal performance, use with OM3 or OM4 multimode fiber cables. Ensure your network equipment supports SFP+ modules and 10GBASE-SR standard. This transceiver is a direct replacement for Ruckus 10G-SFPP-SR-S.
