BlueOptics Cable breakout Direct Attach pasivo BlueLAN 100GBASE-CR4 QSFP28 a 4x25GBASE-CR SFP28 compatible con Check Point QSFP28-4SFP28-DAC-1M, 1 metro, AWG26

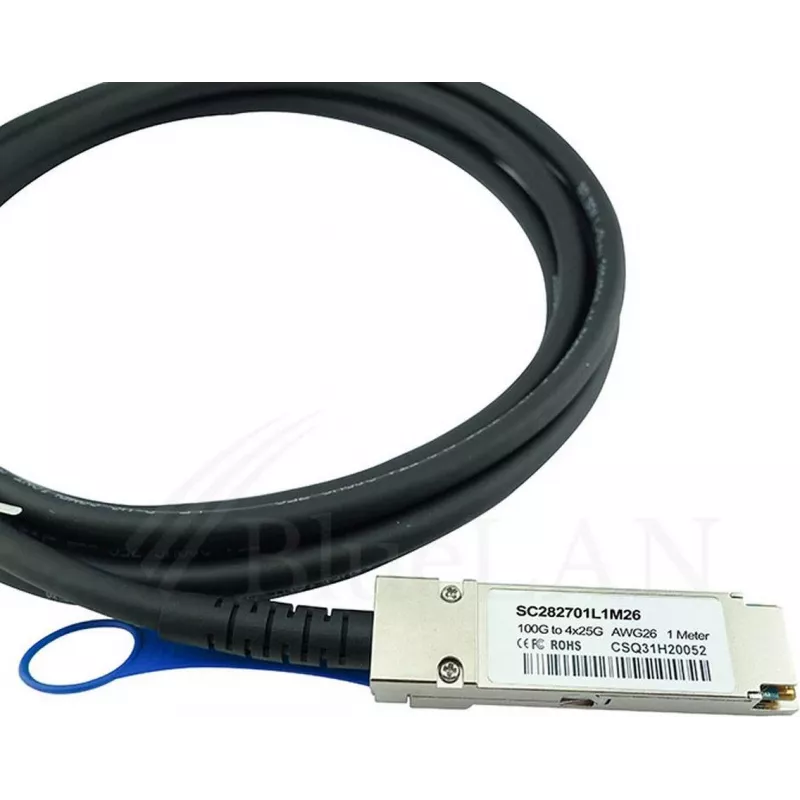

The BlueOptics Q28-4S28-DAC-1M-CP-BL is a high-performance passive Direct Attach Copper (DAC) breakout cable designed for Check Point networking equipment. It provides a cost-effective and reliable solution for high-speed data center interconnects, enabling 100 Gbps aggregate throughput from a single QSFP28 port to four independent 25 Gbps SFP28 links.

Advantages

This cable offers significant advantages over traditional fiber optic transceivers and cabling. It consumes less power, has lower latency, and is more cost-effective for short-reach applications. The passive design ensures zero power consumption, while the breakout configuration maximizes port utilization and simplifies cable management.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing (HPC) clusters
• Enterprise network aggregation and core switching
• Check Point security appliances and switches

Key specifications

• Connector A: QSFP28
• Connector B: 4x SFP28
• Data Rate: 100 Gbps aggregate (4x 25 Gbps)
• Ethernet Standard: 100GBASE-CR4 to 4x 25GBASE-CR
• Cable Length: 1 Meter (3.3 feet)
• Cable Gauge: AWG26
• Impedance: 100 Ohm
• Hot-Pluggable: Yes
• Operating Temperature: 0°C to 70°C
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure your Check Point equipment supports QSFP28 and SFP28 interfaces. This cable is ideal for short-distance interconnects up to 1 meter. For longer distances, consider active optical cables or transceivers.
