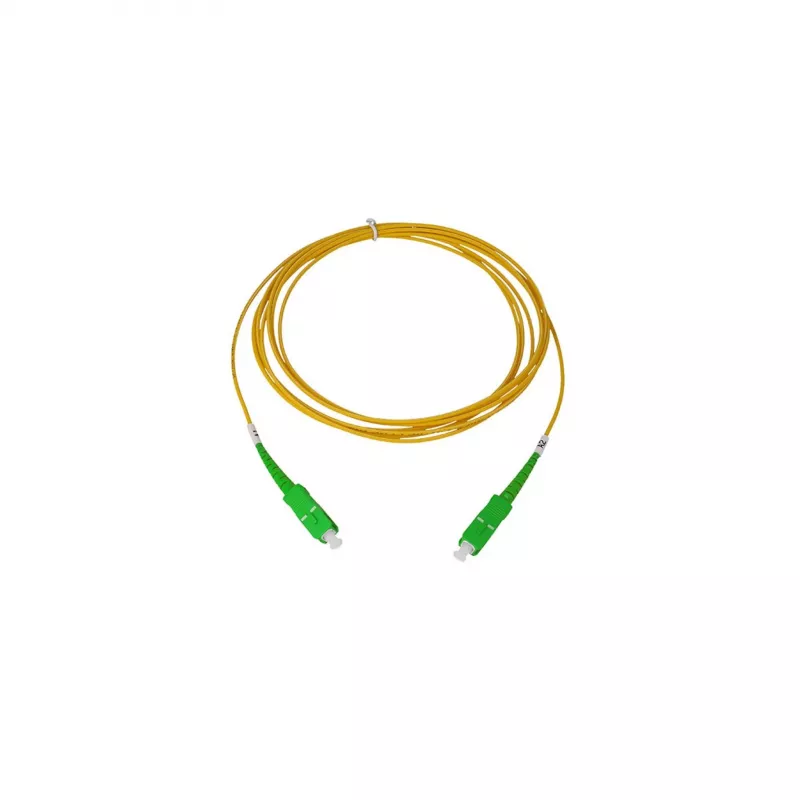

BlueOptics Cable de conexión de fibra óptica simplex SC-APC/SC-APC monomodo 5 metros

The BlueOptics Simplex Fibre Optic Patch Cable SC-APC/SC-APC Singlemode 5 Metres is a high-performance, OS2-rated fibre optic cable designed for reliable, low-loss data transmission in singlemode networks. With SC-APC connectors on both ends, this cable ensures excellent return loss and minimal insertion loss, making it ideal for FTTH, telecommunications, and data centre applications. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the yellow colouring indicates singlemode fibre for easy identification.

Advantages

This patch cable offers superior signal integrity with typical insertion loss below 0.25 dB and return loss greater than 60 dB. The APC polish reduces back reflection, critical for high-bandwidth applications. The 3.0 mm cable diameter provides flexibility without compromising durability, and the LSZH jacket ensures compliance with fire safety standards. Pre-terminated and factory-tested, it saves installation time and guarantees performance.

Suitable for

• Fibre-to-the-Home (FTTH) installations
• Telecommunications networks
• Data centre interconnects
• LAN and WAN backbone connections
• CATV and video transmission systems

Key specifications

• Connector Type: SC-APC to SC-APC
• Fibre Mode: Singlemode (OS2)
• Core/Cladding: 9/125 µm
• Cable Configuration: Simplex (1 fibre)
• Length: 5 metres
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Cable Diameter: 3.0 mm
• Insertion Loss: < 0.25 dB (typical)
• Return Loss: > 60 dB (typical)
• Ferrule Material: Zirconia Ceramic
• Polish Type: APC (Angled Physical Contact)
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC 61754-4

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to avoid sharp bends. This cable is compatible with all standard SC-APC ports.
