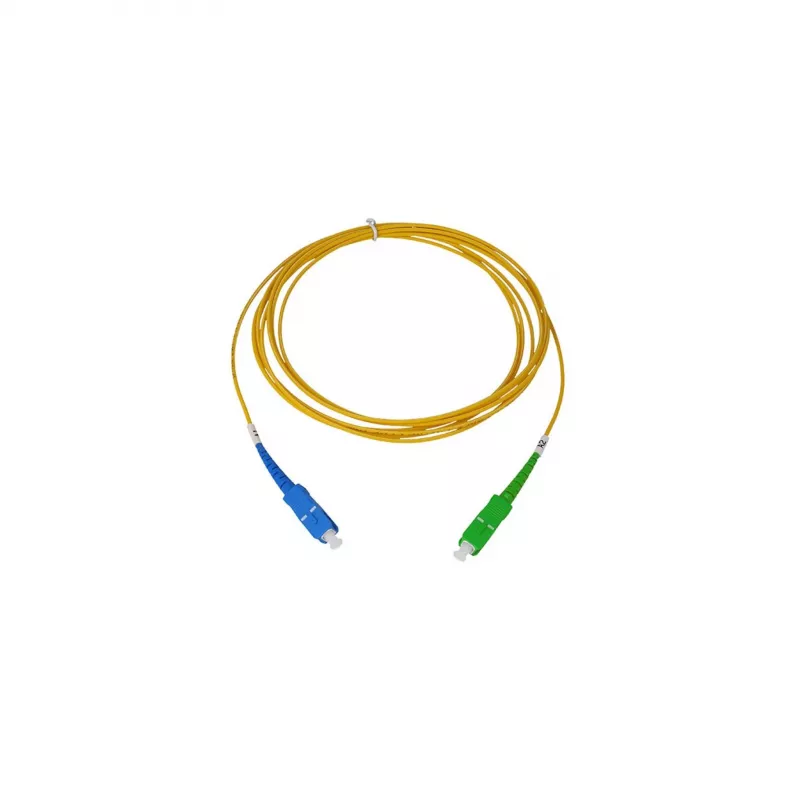

BlueOptics Cable de conexión de fibra óptica simplex SC-UPC/SC-APC monomodo 10m OS2 LSZH amarillo

The BlueOptics SFP2222BU10MS is a high-quality simplex fibre optic patch cable designed for reliable single-mode connections. Featuring SC-UPC to SC-APC connectors, this 10-metre cable ensures low insertion loss and high return loss, making it ideal for FTTH, telecommunications, and data centre applications. The OS2 grade fibre with 9/125 µm core/cladding is compatible with G.657.A1/A2 bend-insensitive fibre, and the LSZH (Low Smoke Zero Halogen) jacket provides safety in enclosed spaces.

Advantages

This patch cable offers excellent signal integrity with typical insertion loss ≤0.3 dB and high return loss (UPC ≥50 dB, APC ≥60 dB). The yellow LSZH jacket is easy to identify and environmentally friendly. Its 3.0 mm diameter and 10 mm minimum bend radius allow for flexible installation in tight spaces.

Suitable for

• Fibre-to-the-Home (FTTH) networks
• Telecommunications infrastructure
• Data centre patching
• Local Area Networks (LAN)
• Test and measurement equipment

Key specifications

• Connector A: SC/UPC
• Connector B: SC/APC
• Fibre Mode: Single Mode (OS2)
• Core/Cladding: 9/125 µm
• Cable Length: 10 metres
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Cable Diameter: 3.0 mm
• Insertion Loss (Typical): ≤0.3 dB
• Return Loss (UPC): ≥50 dB
• Return Loss (APC): ≥60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 10 mm
• Attenuation at 1310nm: ≤0.35 dB/km
• Attenuation at 1550nm: ≤0.25 dB/km

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard SC ports and is ideal for applications requiring low loss and high return loss.
