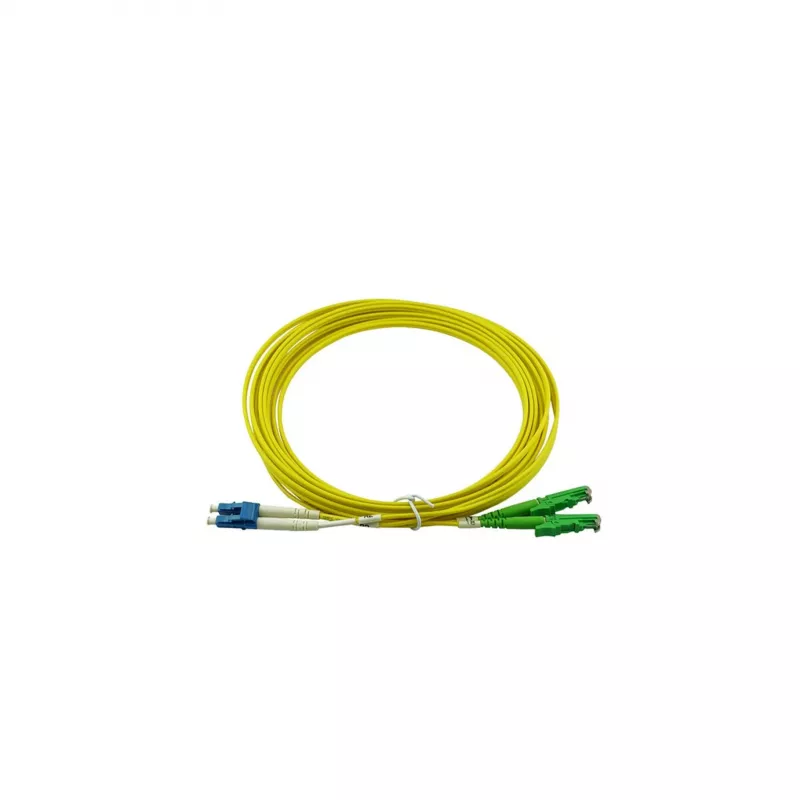

BlueOptics Cable de fibra óptica dúplex LC-UPC a E2000-APC monomodo 3 m

The BlueOptics SFP3138BU3MS is a high-quality duplex fibre optic patch cable designed for reliable single-mode connections. With LC-UPC connectors on one end and E2000-APC connectors on the other, this 3-metre cable ensures low insertion loss and high return loss, making it ideal for demanding network environments.

Advantages

This patch cable offers excellent signal integrity and durability. The LC-UPC connector provides a standard interface, while the E2000-APC connector features an angled physical contact for superior return loss performance. The duplex construction allows for simultaneous bidirectional communication, and the 3-metre length provides flexibility in rack or cabinet setups.

Suitable for

• Data centre interconnects
• Telecommunications networks
• FTTx applications
• High-speed data transmission systems

Key specifications

• Connector 1: LC-UPC
• Connector 2: E2000-APC
• Fibre mode: Single-mode (E9/125)
• Cable length: 3 m
• Cable construction: Duplex
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Insertion loss: ≤0.3 dB (typical)
• Return loss: ≥50 dB (UPC), ≥60 dB (APC)

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate patch panels and cable management to maintain bend radius and avoid signal degradation.
