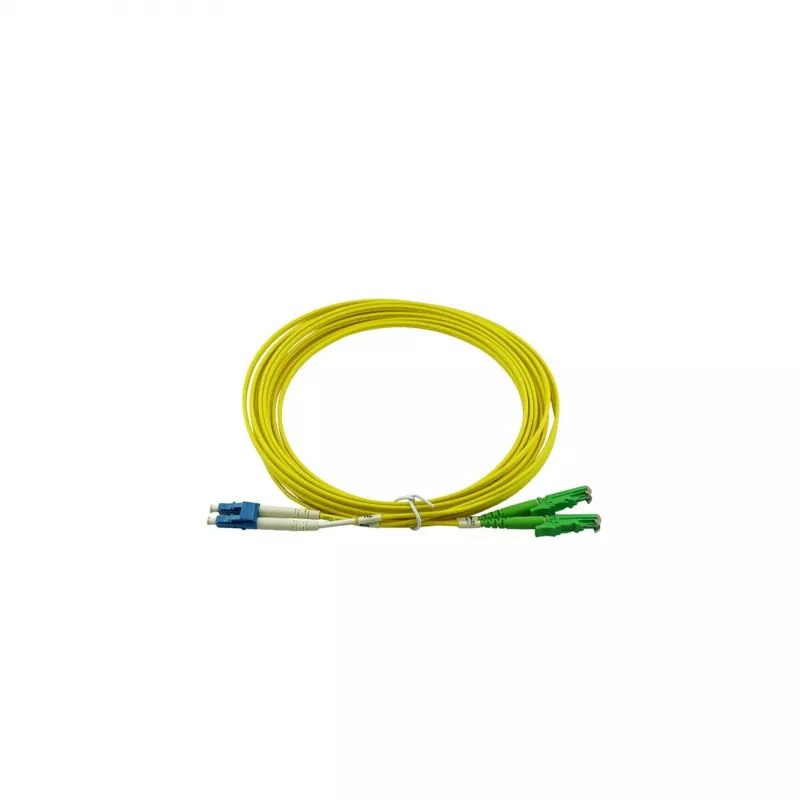

BlueOptics Cable de fibra óptica dúplex LC-UPC a E2000-APC monomodo 9/125µm 5m azul/verde

The BlueOptics SFP3138BU5MS is a high-quality duplex fibre optic patch cable designed for reliable single-mode connections. Featuring LC-UPC to E2000-APC connectors, this 5-metre cable ensures low insertion loss and high return loss, making it ideal for demanding network environments.

Advantages

Low insertion loss (≤0.3 dB) and high return loss (UPC ≥50 dB, APC ≥60 dB) ensure excellent signal integrity. The LSZH jacket provides safety in confined spaces, and the blue/green colour coding aids easy identification.

Suitable for

• Data centres
• Telecommunications networks
• FTTx deployments
• High-speed data transmission

Key specifications

• Cable type: Fibre optic patch cable, duplex
• Fibre mode: Single mode (9/125 µm)
• Connector A: LC-UPC
• Connector B: E2000-APC
• Length: 5 metres
• Jacket colour: Blue/Green
• Jacket material: LSZH
• Insertion loss: ≤0.3 dB
• Return loss (UPC): ≥50 dB
• Return loss (APC): ≥60 dB
• Operating wavelengths: 1310 nm, 1550 nm
• Attenuation: ≤0.35 dB/km @1310nm, ≤0.25 dB/km @1550nm
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, CE, IEC 61754, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard LC and E2000 ports.
