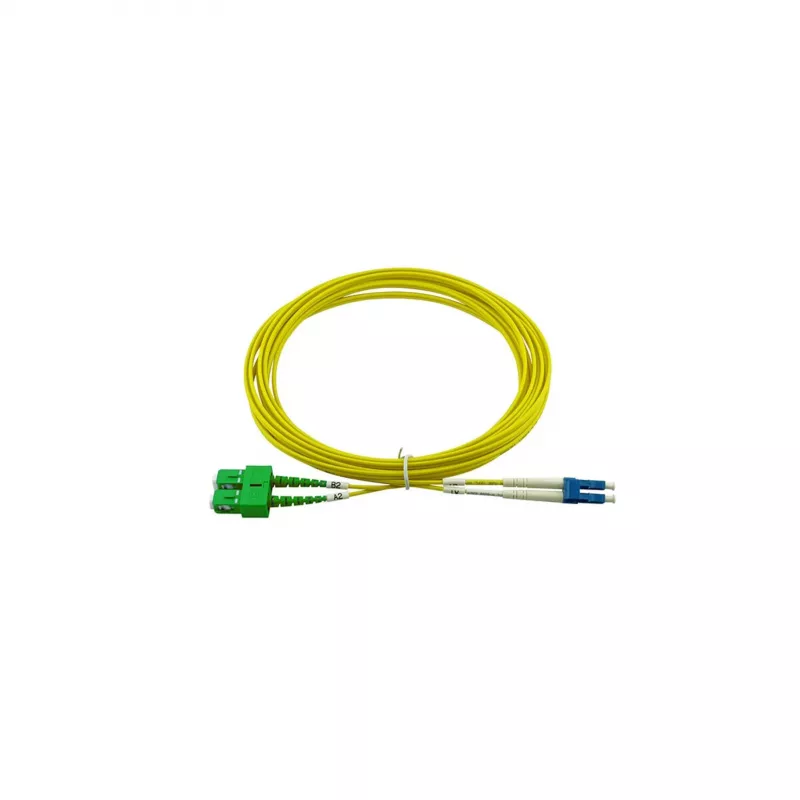

BlueOptics Cable de fibra óptica dúplex LC/UPC a SC/APC monomodo OS2 15m azul LSZH

The BlueOptics SFP3132BU15MS is a high-quality duplex fibre optic patch cable designed for reliable single mode connections in data centres, FTTH, LAN, and telecommunications networks. Featuring LC/UPC to SC/APC connectors, this 15-metre cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This cable offers bend-insensitive G.657.A1 fibre, reducing signal loss in tight installations. The LSZH jacket provides safety in enclosed spaces, and the duplex configuration supports bidirectional communication.

Suitable for

• Data centre interconnects
• FTTH and access networks
• LAN and enterprise cabling
• Telecommunications infrastructure

Key specifications

• Connector A: LC/UPC
• Connector B: SC/APC
• Fibre Type: Single Mode OS2 (E9/125µm)
• ITU-T Standard: G.657.A1
• Cable Length: 15 metres
• Jacket Colour: Blue
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (Min): ≥ 60 dB (SC/APC)
• Minimum Bend Radius: 10 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Ferrule Material: Zirconia Ceramic
• Polarity: A-B (Crossed)
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is ideal for high-speed networks requiring low loss and high return loss.
