BlueOptics Cable de fibra óptica dúplex LC/UPC-SC/APC monomodo 3 metros

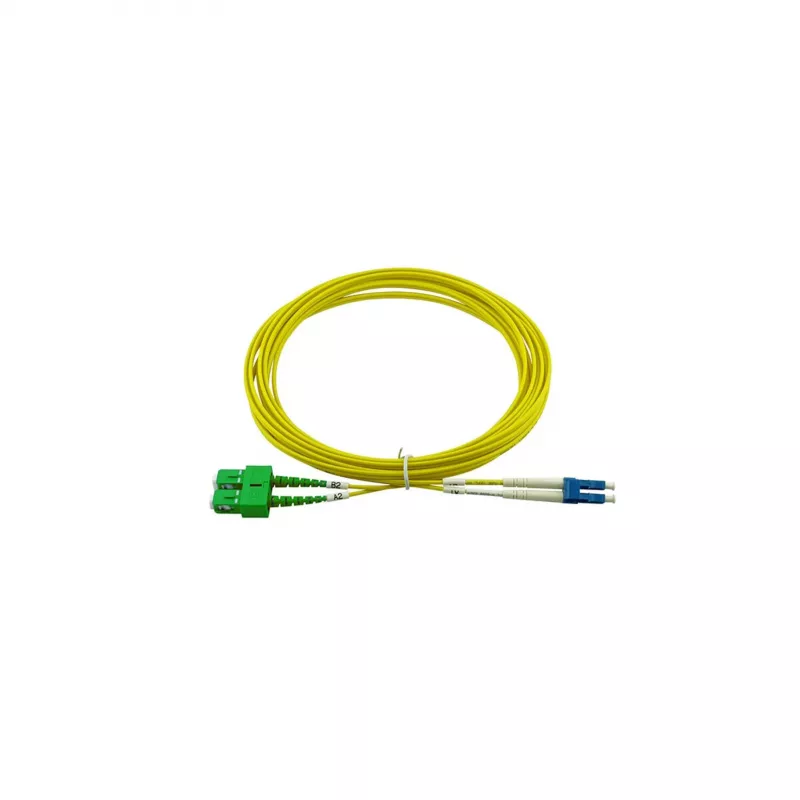

The BlueOptics Duplex Fibre Optic Patch Cable LC/UPC-SC/APC Singlemode 3 Metres is a high-performance fibre optic cable designed for reliable data transmission in demanding network environments. With LC/UPC to SC/APC connectors, this OS2 singlemode cable ensures low insertion loss and high return loss, making it ideal for data centers, LAN, FTTx, and telecommunication networks.

Advantages

This cable offers superior signal integrity with typical insertion loss of less than 0.3 dB and return loss greater than 50 dB (LC/UPC) and 60 dB (SC/APC). The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, reducing toxic fumes and smoke in case of fire. The 3.0 mm diameter cable is durable yet flexible, facilitating easy installation in tight spaces.

Suitable for

• Data center interconnects
• Local area networks (LAN)
• FTTx (Fiber to the x) deployments
• Telecommunication networks
• High-speed data transmission applications

Key specifications

• Product Type: Fibre Optic Patch Cable
• Fibre Mode: Singlemode (OS2)
• Cable Configuration: Duplex
• Connector A: LC/UPC
• Connector B: SC/APC
• Cable Length: 3 Metres
• Fibre Core Diameter: 9 µm
• Fibre Cladding Diameter: 125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (LC/UPC): > 50 dB
• Return Loss (SC/APC): > 60 dB
• Operating Temperature: -20°C to 70°C
• Cable Colour: Yellow
• Cable Diameter: 3.0 mm
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and SC ports. Use appropriate cable management to avoid bending beyond the minimum bend radius.
