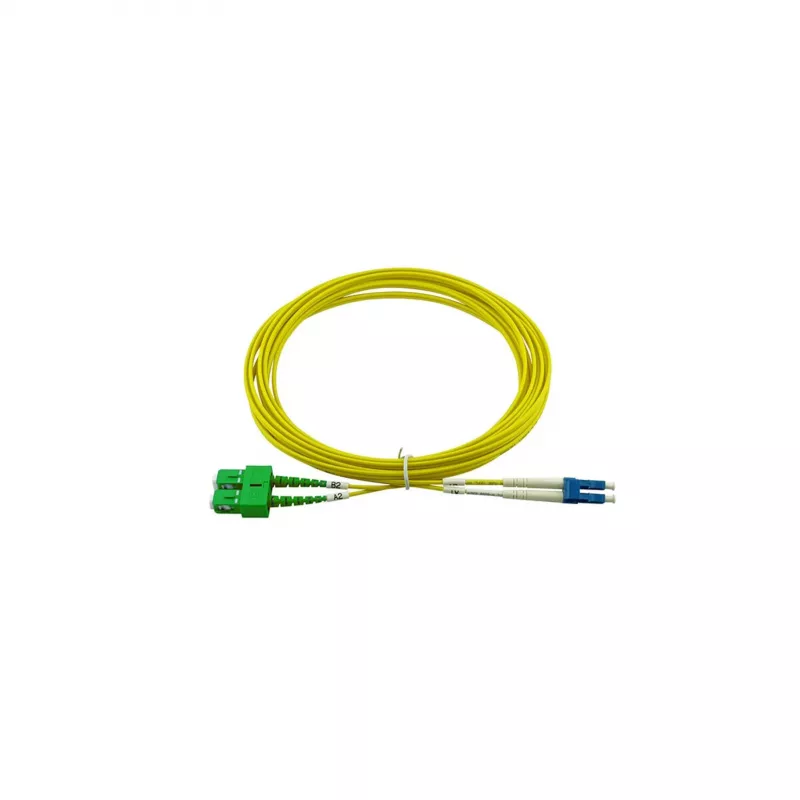

BlueOptics Cable de fibra óptica dúplex LC/UPC-SC/APC monomodo OS2 1m LSZH

The BlueOptics SFP3132BU1MS is a high-quality duplex fibre optic patch cable designed for reliable singlemode connections. Featuring LC/UPC to SC/APC connectors, this 1-meter cable is ideal for data centers, telecommunications, LAN, and FTTx applications. Manufactured with LSZH (Low Smoke Zero Halogen) jacket material, it ensures safety in enclosed spaces.

Advantages

This cable offers low insertion loss (≤0.3 dB) and high return loss (≥50 dB UPC, ≥60 dB APC), ensuring excellent signal integrity. The OS2 singlemode fiber supports wavelengths of 1310nm and 1550nm with minimal attenuation. Its duplex configuration provides two fibers for bidirectional communication.

Suitable for

• Data center interconnects
• Telecommunications networks
• Local Area Networks (LAN)
• Fiber to the x (FTTx) deployments

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fiber Type: Singlemode OS2
• Core/Cladding: 9/125 µm
• Connector A: LC/UPC
• Connector B: SC/APC
• Configuration: Duplex (2 fibers)
• Length: 1 Meter
• Jacket Material: LSZH
• Insertion Loss: ≤0.3 dB
• Return Loss (UPC): ≥50 dB
• Return Loss (APC): ≥60 dB
• Operating Wavelengths: 1310nm, 1550nm
• Attenuation @1310nm: ≤0.35 dB/km
• Attenuation @1550nm: ≤0.25 dB/km
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, use with compatible SFP transceivers and ensure proper cleaning of connectors before installation.
