BlueOptics Cable de fibra óptica dúplex SC-APC/SC-APC monomodo 1 metro

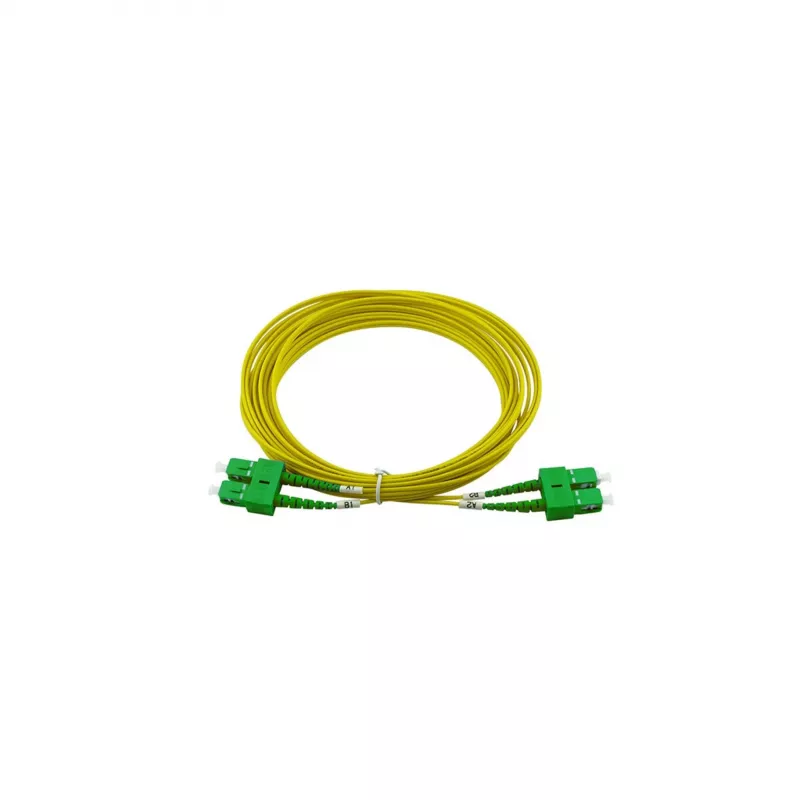

The BlueOptics Duplex Fibre Optic Patch Cable SC-APC/SC-APC Singlemode 1 Metre is a high-performance, pre-terminated fibre optic cable designed for reliable, low-loss connections in singlemode networks. With OS2 grade fibre and premium SC/APC connectors, this patch cable ensures excellent signal integrity for data, voice, and video applications.

Advantages

This cable offers low insertion loss (≤0.3 dB) and high return loss (≥60 dB), minimising signal degradation and reflections. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the yellow colouring allows for easy identification. The duplex configuration supports bidirectional communication over two fibres.

Suitable for

• Fibre optic network installations in data centres, telecom rooms, and enterprise networks
• Connecting optical transceivers, patch panels, and network equipment
• Singlemode applications requiring SC/APC connectors
• Indoor use where LSZH jacket is required for safety compliance

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fiber Type: Singlemode (OS2)
• Configuration: Duplex (2 Fibers)
• Connectors: SC/APC to SC/APC
• Length: 1 Metre
• Core/Cladding: 9/125 µm
• Insertion Loss: ≤0.3 dB (typical)
• Return Loss: ≥60 dB (typical)
• Jacket: LSZH, Yellow, 3.0 mm diameter
• Wavelength: 1310nm, 1550nm
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for high-speed networks up to 10 Gbps and beyond. Pair with BlueOptics transceivers for guaranteed compatibility.
