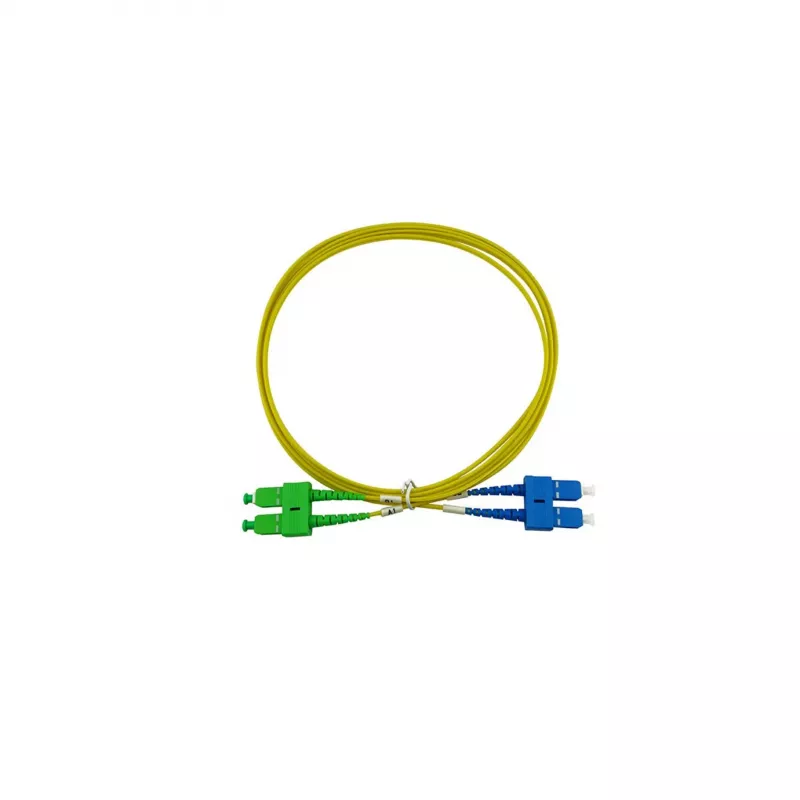

BlueOptics Cable de fibra óptica dúplex SC/UPC a SC/APC monomodo 15m azul/verde

The BlueOptics SFP3232BU15MS is a high-quality duplex fibre optic patch cable designed for reliable single-mode connections. Featuring SC/UPC to SC/APC connectors, this 15-metre cable ensures low insertion loss and high return loss, making it ideal for demanding network environments.

Advantages

This cable offers superior performance with ≤0.3 dB insertion loss and ≥50 dB (UPC) / ≥60 dB (APC) return loss. The LSZH jacket provides safety in confined spaces, while the blue/green colour coding simplifies identification.

Suitable for

• Data centres
• Telecommunications networks
• FTTH (Fibre to the Home) installations
• High-speed single-mode fibre links

Key specifications

• Cable type: Duplex fibre optic patch cable
• Fibre mode: Single mode (9/125 µm)
• Connector A: SC/UPC
• Connector B: SC/APC
• Length: 15 metres
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket colour: Blue/Green
• Insertion loss: ≤0.3 dB
• Return loss (UPC): ≥50 dB
• Return loss (APC): ≥60 dB
• Operating temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with standard SC ports and is suitable for indoor use.
