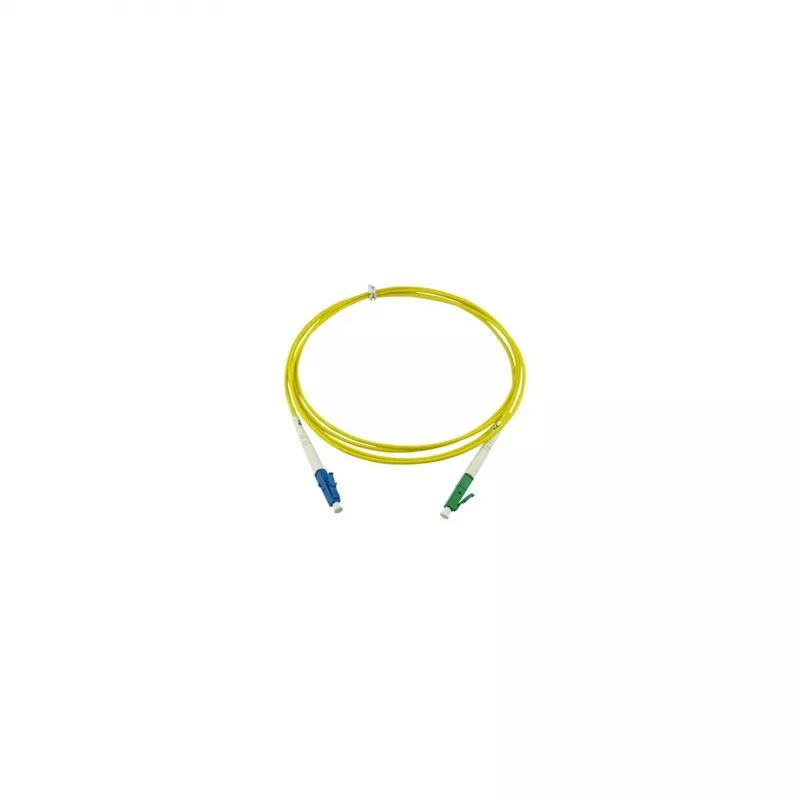

BlueOptics Cable de fibra óptica simplex LC-UPC a LC-APC monomodo OS2 30m

The BlueOptics SFP2121BU30MS is a high-quality simplex fibre optic patch cable designed for reliable single-mode connections. Featuring LC/UPC to LC/APC connectors, this 30-metre cable ensures low insertion loss and high return loss, making it ideal for demanding network environments.

Advantages

This cable offers exceptional performance with typical insertion loss below 0.3 dB and return loss greater than 50 dB (UPC) and 60 dB (APC). The LSZH jacket provides safety in confined spaces, while the yellow jacket colour ensures easy identification. The blue and green connector colours help distinguish polish types.

Suitable for

• Data centres requiring high-density fibre connections
• Telecommunications networks
• Local area networks (LAN)
• FTTx deployments

Key specifications

• Connector A: LC/UPC (Blue)
• Connector B: LC/APC (Green)
• Fibre Mode: Single Mode (OS2)
• Core/Cladding: 9/125 µm
• Cable Length: 30 metres
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Insertion Loss: < 0.3 dB (typical)
• Return Loss: > 50 dB (UPC), > 60 dB (APC)
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC ports and is suitable for both indoor and protected outdoor applications.
