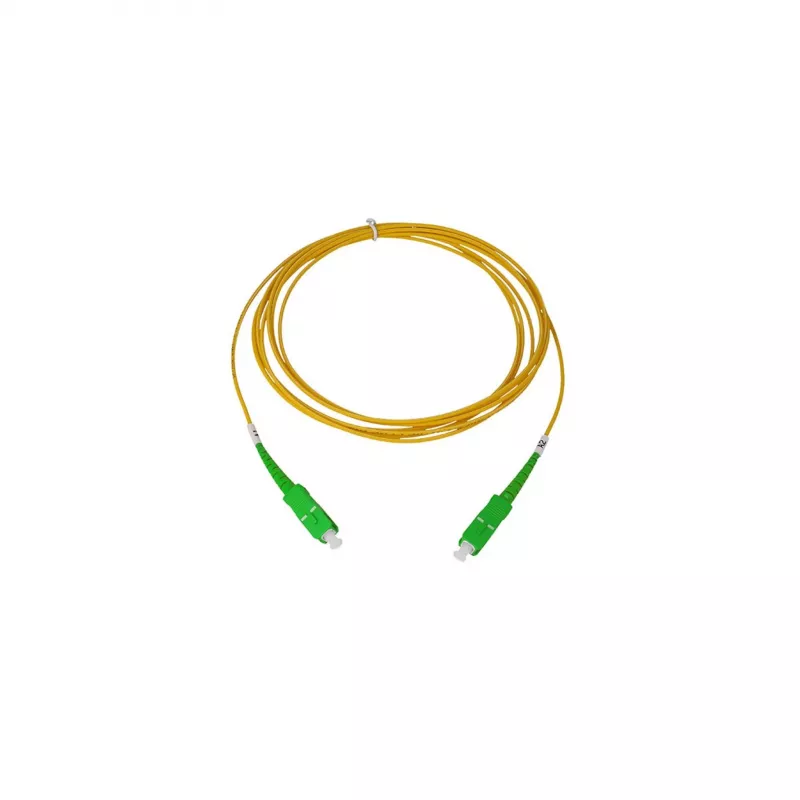

BlueOptics Cable de fibra óptica simplex SC-APC/SC-APC monomodo 2 metros

The BlueOptics Simplex Fibre Optic Patch Cable SC-APC/SC-APC Singlemode 2 Metres is a high-performance fibre optic cable designed for reliable data transmission in demanding network environments. Featuring a simplex configuration and singlemode OS2 fibre, this cable ensures low signal loss and high return loss, making it ideal for long-distance and high-bandwidth applications.

Advantages

This patch cable offers exceptional optical performance with insertion loss less than 0.3 dB and return loss greater than 60 dB, ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, reducing toxic fumes and smoke in case of fire. The ceramic ferrule connectors guarantee precise alignment and durability.

Suitable for

• Data Centers
• Telecommunications
• FTTH (Fiber to the Home)
• Local Area Networks (LAN)

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fibre Configuration: Simplex
• Fibre Type: Singlemode (OS2)
• Connector Type 1: SC-APC
• Connector Type 2: SC-APC
• Cable Length: 2 Metres
• Core/Cladding Diameter: 9/125 µm
• Insertion Loss: < 0.3 dB
• Return Loss: > 60 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Diameter: 3.0 mm
• Ferrule Material: Ceramic
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC-APC interfaces and is suitable for both indoor and outdoor use when properly protected.
