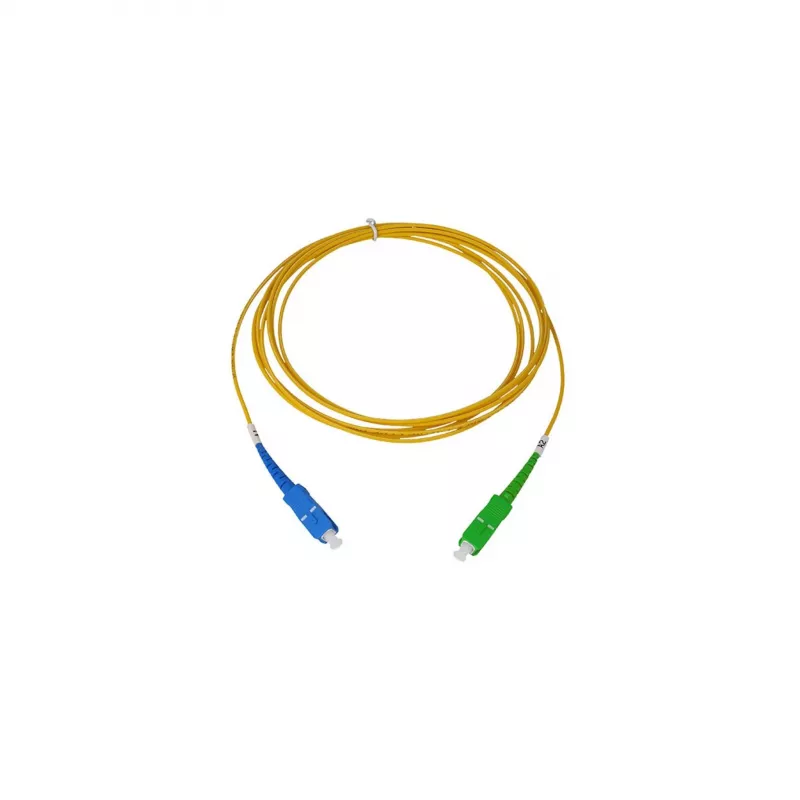

BlueOptics Cable de fibra óptica simplex SC-UPC/SC-APC monomodo 7,5 metros

The BlueOptics Simplex Fibre Optic Patch Cable SC-UPC/SC-APC Singlemode 7.5 Metres is a high-performance fibre optic cable designed for reliable data transmission in demanding network environments. Featuring a SC-UPC connector on one end and a SC-APC connector on the other, this cable ensures low insertion loss and high return loss, making it ideal for applications requiring minimal signal reflection.

Advantages

This patch cable offers exceptional signal integrity with insertion loss ≤0.3 dB and return loss ≥50 dB (UPC) / ≥60 dB (APC). The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, reducing toxic fumes and smoke in case of fire. Its 3.0 mm diameter and yellow colour ensure easy identification and flexibility in cable management.

Suitable for

• Data Centers
• Telecommunications networks
• Local Area Networks (LAN)
• FTTx (Fiber to the x) deployments

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fibre Type: Singlemode (OS2)
• Number of Fibres: 1 (Simplex)
• Connector 1: SC-UPC
• Connector 2: SC-APC
• Cable Length: 7.5 m
• Jacket Material: LSZH
• Jacket Colour: Yellow
• Cable Diameter: 3.0 mm
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (Min) - UPC: ≥ 50 dB
• Return Loss (Min) - APC: ≥ 60 dB
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC ports and is suitable for both indoor and controlled outdoor environments.
