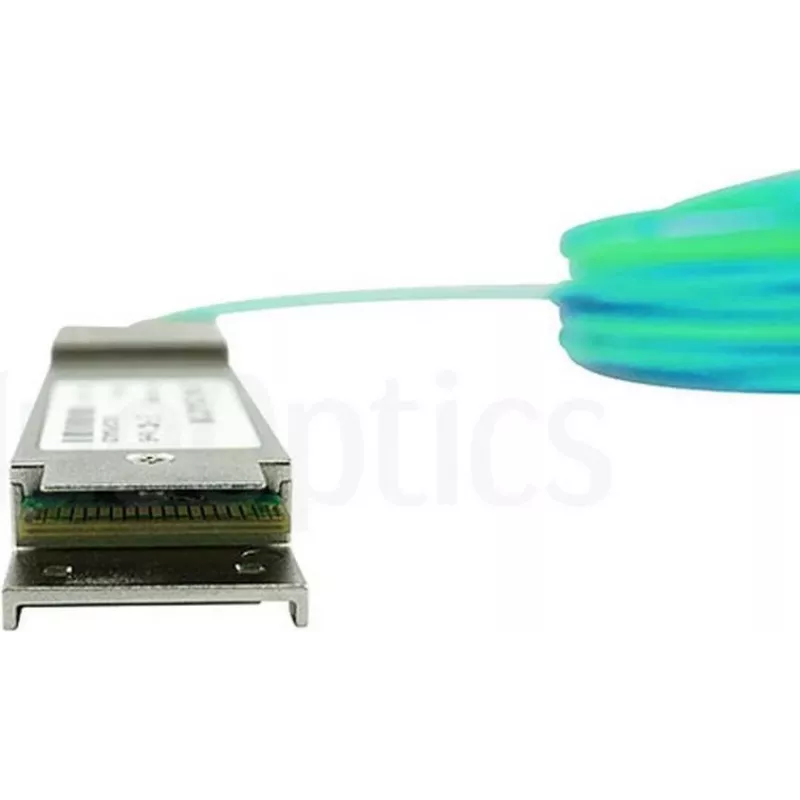

Cable óptico activo CBO para Palo Alto Networks QSFP-100G-AOC-5M 100G 5 m

Active Optical Cable CBO for Palo Alto Networks QSFP-100G-AOC-5M 100G 5 m is a 5 metre active optical link designed for short-reach 100 Gbps connections between QSFP ports in data centres and network racks. Built for environments requiring high throughput and low latency, this AOC offers the optical performance of transceiver-based links with the simplicity of a direct-attach cable. The plug-and-play form factor reduces installation time and cabling complexity while providing immunity to electromagnetic interference compared with copper alternatives.

Advantages

This Active Optical Cable delivers full 100 Gbps bandwidth over a 5 m reach with low insertion loss and minimal latency suitable for aggregation, server-to-switch and switch-to-switch links. The fibre construction reduces susceptibility to EMI and crosstalk, resulting in stable signal quality in dense rack deployments. Its integrated transceiver ends remove the need for separate modules and simplify inventory and compatibility when used with systems that accept QSFP AOC connections.

Suitable for

• High-speed links between switches in data centre topologies
• Server-to-switch connections in rack and blade server environments
• Short-reach aggregation and spine-leaf fabrics
• Environments where reduced EMI and compact cabling are required

Key specifications

• Data rate: 100 Gbps (aggregate)
• Connector type: QSFP form-factor, direct-attach AOC ends
• Length: 5 metres
• Transmission medium: multimode optical fibre
• Use case: short-reach, in-rack and intra-rack connections
• Latency: low, suitable for high-performance networking

How to use

Insert each QSFP end of the AOC into the corresponding QSFP ports on the networking devices until the latch engages. Ensure both devices support 100 Gbps AOC connections and are powered off or configured per vendor hot-swap guidance if required. After installation, verify link status and negotiate speed settings via device management interfaces. Route the cable to avoid sharp bends and secure it to reduce strain on connectors.

Recommendations

Handle the cable by the connector housings and avoid tight bends below the manufacturer’s minimum bend radius. Use this 5 m active optical cable for short-reach connections inside racks or between adjacent racks; for longer distances select an appropriately rated AOC or optical transceiver with fibre patch cords. Confirm compatibility with the host device QSFP port firmware and platform guidance before deployment.
