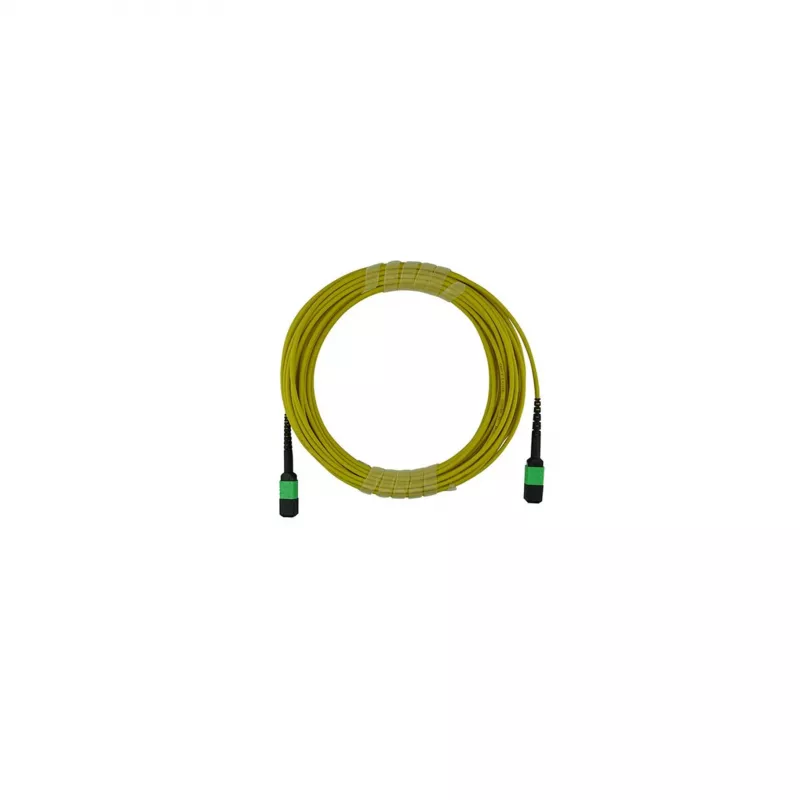

BlueOptics Cable troncal MPO monomodo 12 fibras 20m Type B

The BlueOptics MPO trunk cable is a high-performance fiber optic cable designed for demanding data center and enterprise network environments. It features 12 singlemode fibers with OS2 classification, terminated with MPO/MTP female connectors on both ends, and configured in Type B polarity for cross-over applications. With a length of 20 meters, this cable provides reliable connectivity for high-speed networks.

Advantages

Optimized for 40G/100G/400G Ethernet applications, this trunk cable ensures low insertion loss (≤0.35 dB) and high return loss (≥60 dB), guaranteeing excellent signal integrity. The LSZH jacket material enhances safety by reducing smoke and toxic emissions in case of fire, making it suitable for confined spaces. Its yellow jacket color allows for easy identification in cable management systems.

Suitable for

• Data center interconnects
• Storage area networks (SAN)
• Local area networks (LAN)
• 40GBASE-SR4, 100GBASE-SR4, 400GBASE-SR8 applications

Key specifications

• Cable Type: MPO Trunk Cable
• Fiber Type: Singlemode (OS2)
• Number of Fibers: 12
• Connector Type: MPO/MTP (Female) on both ends
• Polarity: Type B (Cross-over)
• Cable Length: 20 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Diameter: 3.0 mm
• Fiber Core/Cladding: 9/125 µm
• Insertion Loss: ≤ 0.35 dB (typical)
• Return Loss: ≥ 60 dB (typical)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 10D (static), 20D (dynamic)
• Compliance: RoHS, CE, TIA/EIA-604-5, IEC 61754-7

Recommendations

For optimal performance, ensure that the MPO connectors are properly cleaned before each connection. This cable is ideal for high-density patching areas and should be handled with care to maintain bend radius specifications.
