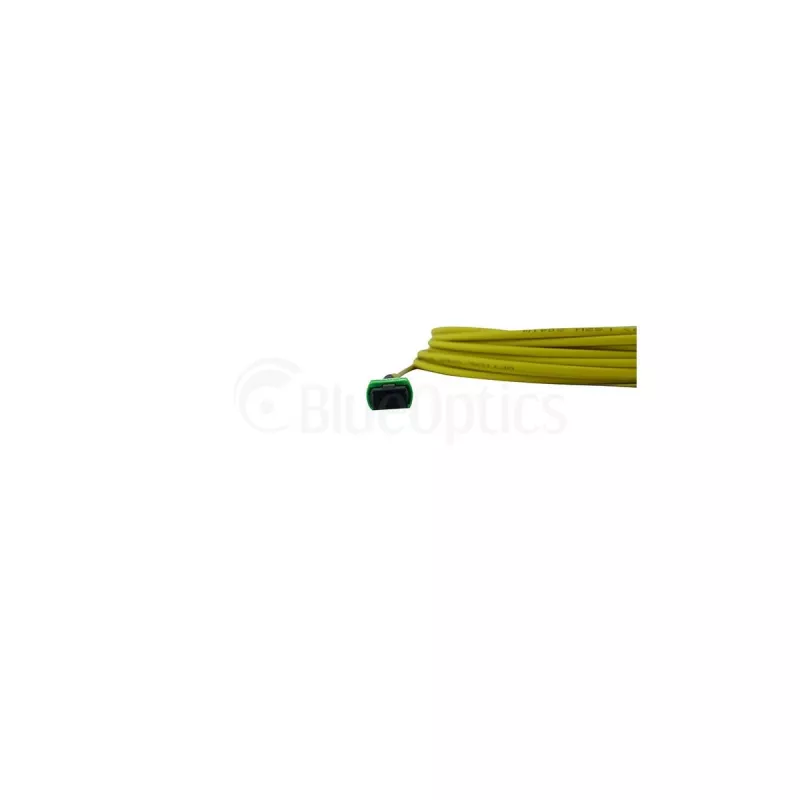

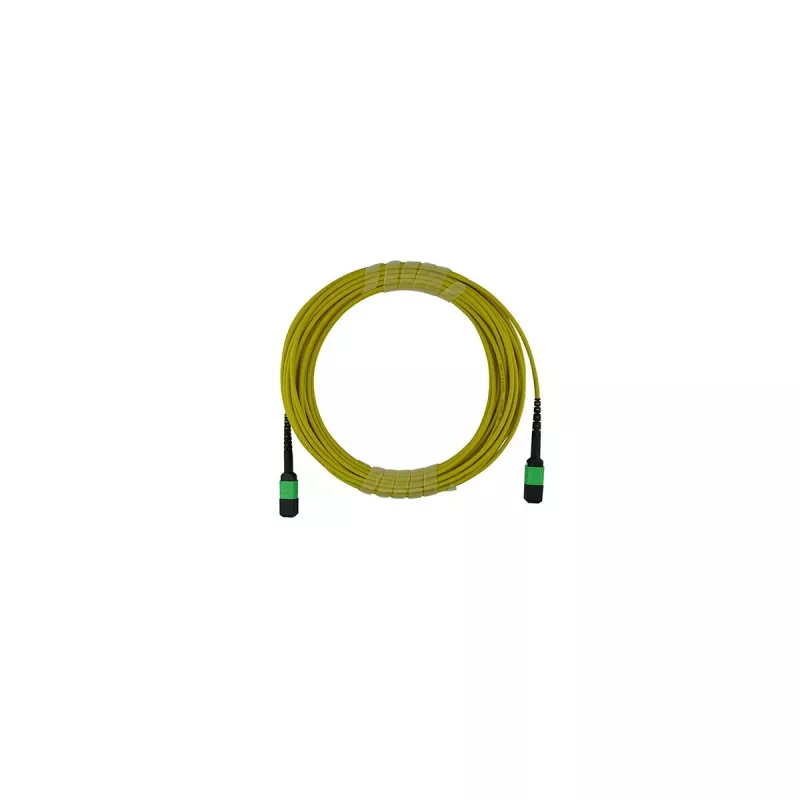

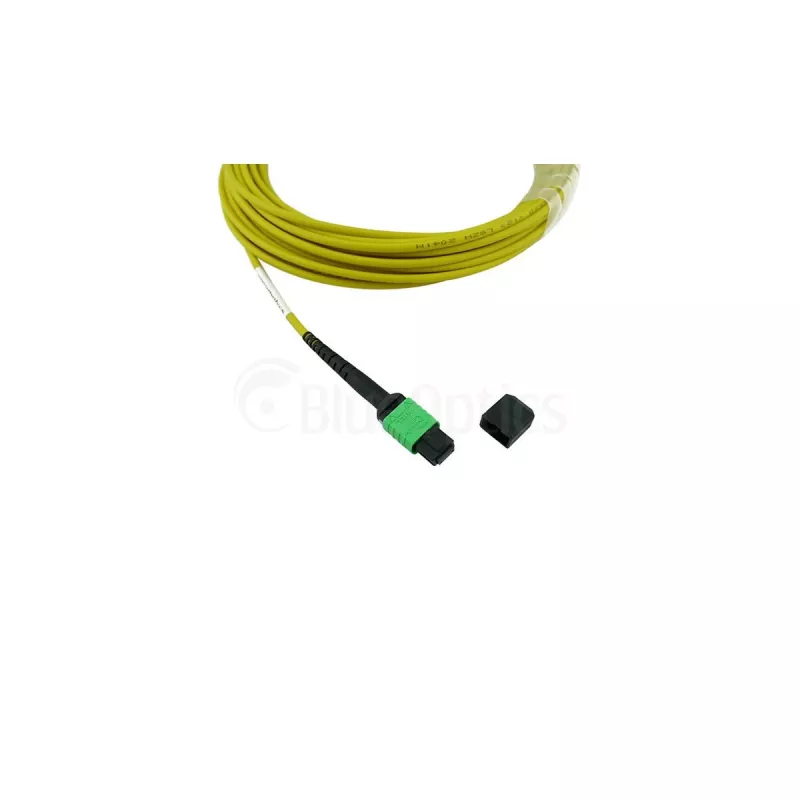

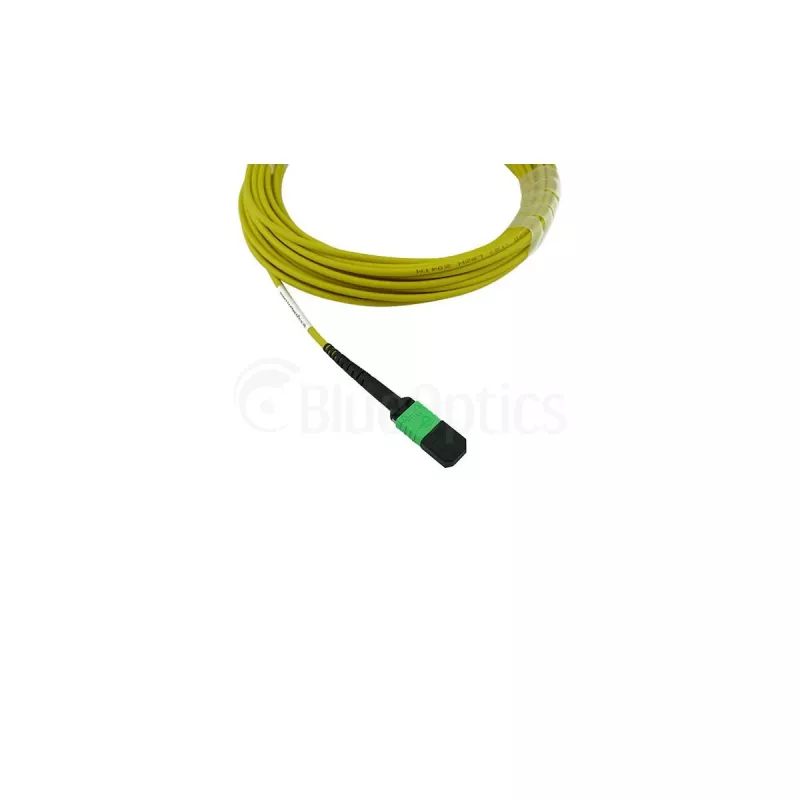

BlueOptics Cisco CB-M12-M12-SMF1M Cable de Parcheo de Fibra Óptica Monomodo OS2 MPO-12 Hembra a MPO-12 Hembra, 1 m, LSZH, Amarillo

The BlueOptics Cisco CB-M12-M12-SMF1M is a high-performance MPO-12 to MPO-12 fiber optic patch cable designed for data centers and high-density networks. This single-mode OS2 cable features bend-insensitive G.657.A1 fiber, ensuring reliable signal transmission even in tight spaces. With a length of 1 meter and LSZH jacket, it is ideal for short-distance, high-speed connections.

Advantages

This cable offers low insertion loss (≤0.35 dB) and high return loss (≥50 dB), ensuring excellent signal integrity. The bend-insensitive fiber reduces signal degradation when bent, making installation easier in crowded racks. The LSZH jacket minimizes toxic fumes in case of fire, enhancing safety in enclosed environments.

Suitable for

• Data center interconnects
• Telecommunications networks
• High-density fiber environments
• Short-distance single-mode applications

Key specifications

• Connector Type: MPO-12 Female to MPO-12 Female
• Fiber Type: Single-Mode OS2 (G.657.A1)
• Number of Fibers: 12
• Cable Length: 1 Meter
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Yellow
• Polarity: Type B
• Insertion Loss: ≤ 0.35 dB
• Return Loss: ≥ 50 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Cable Diameter: 3.0 mm
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with MPO-12 interfaces and supports 40G/100G applications. Store in a clean, dry environment within the specified temperature range.
