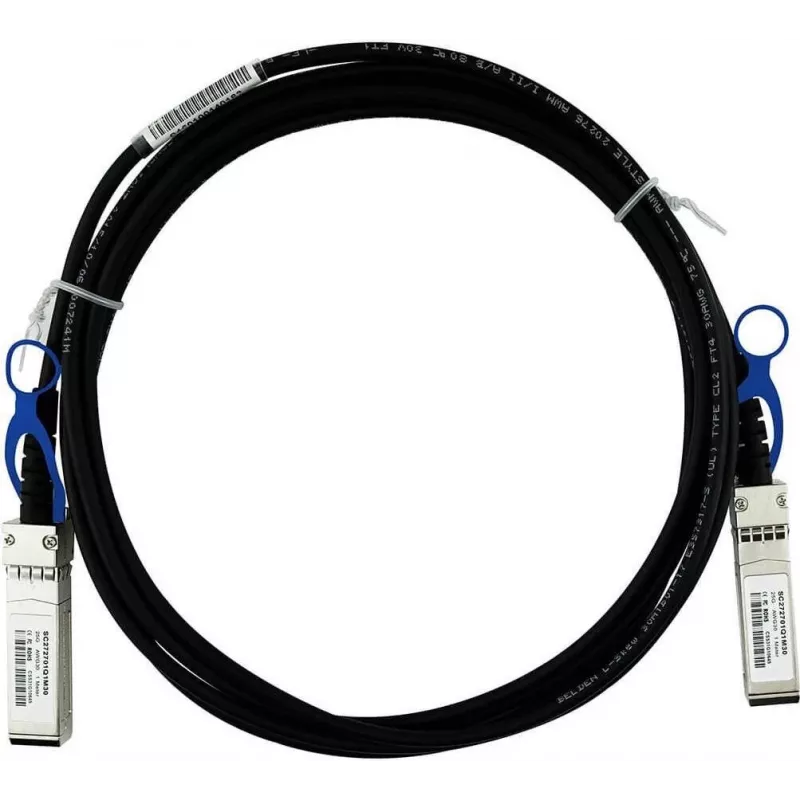

BLUEOPTICS compatible Amphenol NDCCGJ-0005 BlueLAN 25GBASE-CR SFP28 a SFP28 Direct Attach pasivo, 5 m, AWG26 (NDCCGJ-0005-BL)

The BLUEOPTICS Compatible Amphenol NDCCGJ-0005 BlueLAN DAC is a high-performance passive direct attach cable designed for 25 Gigabit Ethernet networks. It provides a cost-effective, low-latency solution for short-range interconnects in data centers and enterprise environments.

Advantages

This SFP28 to SFP28 passive copper twinax cable delivers reliable 25 Gbps connectivity with minimal power consumption (<0.5W per end). Its hot-swappable design and compliance with SFF-8402, SFF-8431, and SFF-8472 standards ensure seamless integration with existing infrastructure. The 5-meter length and AWG26 gauge offer flexibility in rack cabling while maintaining signal integrity.

Suitable for

• Data center interconnect (server-to-switch, switch-to-switch)
• Storage area networks (SAN)
• High-performance computing clusters
• 25GBASE-CR compliant network upgrades

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Data Rate: 25 Gbps
• Ethernet Standard: 25GBASE-CR
• Cable Type: Passive Copper Twinax
• Connector Type (End A): SFP28
• Connector Type (End B): SFP28
• Cable Length: 5 meters
• Wire Gauge: AWG26
• Impedance: 100 Ohm
• Hot-Swappable: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: <0.5W per end
• Standards Compliance: SFF-8402, SFF-8431, SFF-8472
• RoHS Compliance: Yes

Recommendations

For optimal performance, use this cable with compatible SFP28 ports on switches, servers, and network interface cards. Ensure proper cable management to avoid bending beyond the minimum bend radius. This passive DAC is ideal for short-reach links up to 5 meters within racks or adjacent racks.
