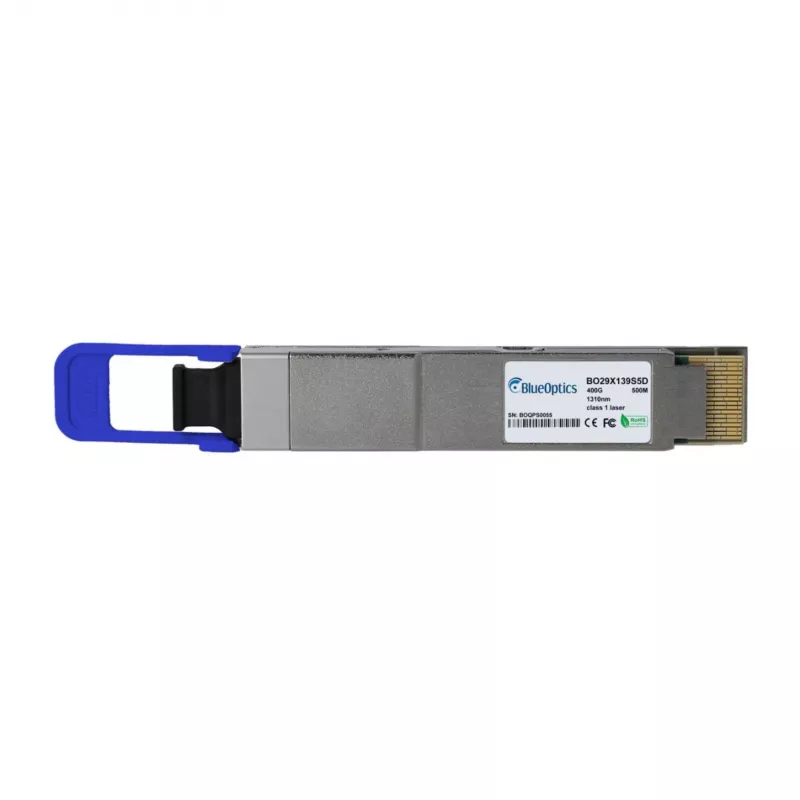

BLUEOPTICS Compatible con Arista QDD-400G-DR4 Transceptor QSFP-DD, 400GBASE-DR4, monomodo 1310nm, MPO-12/MTP-12, 500m

The BLUEOPTICS QDD-400G-DR4 is a high-performance QSFP-DD transceiver designed for 400 Gigabit Ethernet applications. It is fully compatible with Arista Networks QDD-400G-DR4 and offers reliable connectivity for data center and enterprise networks.

Advantages

This transceiver delivers 400 Gbps data rate over singlemode fiber using 4x100G lanes, with low power consumption under 12W. It supports Digital Diagnostics Monitoring (DDM/DOM) for real-time performance tracking. Hot-pluggable design ensures easy installation and maintenance.

Suitable for

• Data Center Interconnects
• High-Performance Computing
• Enterprise Networking
• Arista Networks switches and routers

Key specifications

• Form Factor: QSFP-DD
• Data Rate: 400 Gbps
• Protocol: 400GBASE-DR4
• Wavelength: 1310 nm
• Fiber Type: Singlemode (OS2)
• Max Reach: 500 meters
• Connector: MPO-12/MTP-12
• Transmitter: EML
• Power Consumption: < 12 W
• Operating Temperature: 0 to 70°C
• Compliance: IEEE 802.3bs, QSFP-DD MSA

Recommendations

For optimal performance, use with singlemode fiber patch cables and ensure proper cleaning of MPO connectors. Compatible with Arista switches supporting QDD-400G-DR4.
