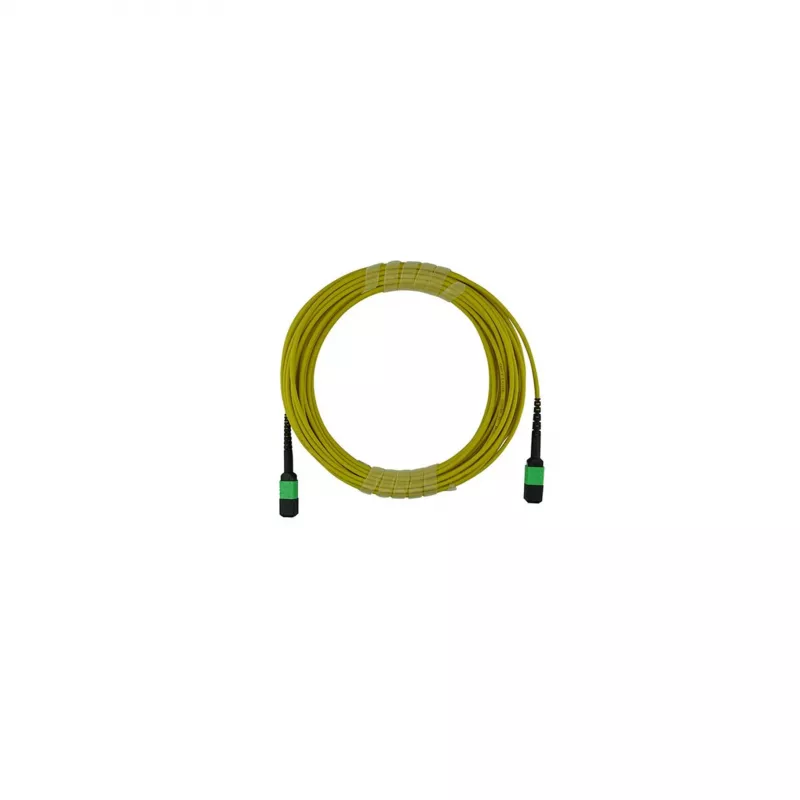

BlueOptics Compatible HPE P45703-001 MPO/APC a MPO/APC Monomodo OS2 Cable Trunk de Fibra Óptica, 20m, 12 Fibras, LSZH, Amarillo

The BlueOptics Compatible HPE P45703-001 fibre optic trunk cable is a high-performance, single-mode OS2 solution designed for demanding data centre, SAN, and high-density network cabling environments. This MPO/APC to MPO/APC trunk cable delivers reliable, low-loss connectivity for 10G, 40G, 100G, and beyond, ensuring seamless integration with HPE networking equipment.

Advantages

Engineered as a direct OEM equivalent to the HPE P45703-001, this BlueOptics cable offers cost savings without compromising on quality. The MPO/APC connectors provide low insertion loss (≤0.35 dB) and high return loss (≥60 dB), optimising signal integrity for critical applications. The 12-fibre Type B polarity configuration supports parallel optics and bidirectional transmission, making it ideal for QSFP/QSFP+ transceivers. The LSZH jacket ensures safety in plenum and riser spaces, reducing toxic smoke and flame spread.

Suitable for

• Data centre backbone cabling
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• High-density fibre patching and trunking
• HPE ProLiant, Synergy, and networking equipment

Key specifications

• Connector Type: MPO/APC Male to MPO/APC Male
• Fibre Type: Single-Mode OS2 (9/125 µm)
• Fibre Count: 12 Fibres
• Polarity: Type B
• Cable Length: 20 metres
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Insertion Loss (Max): 0.35 dB
• Return Loss (Min): 60 dB
• Operating Wavelengths: 1310 nm, 1550 nm
• Attenuation @ 1310nm: 0.35 dB/km
• Attenuation @ 1550nm: 0.25 dB/km
• Cable Diameter: 3.0 mm
• Minimum Bend Radius: 10 mm
• Standards: IEC 61754-7, TIA/EIA-604-5, RoHS, REACH

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible MPO/APC ports. Avoid sharp bends exceeding the minimum bend radius. This cable is fully compatible with HPE P45703-001 and other standard MPO/APC interfaces.
