BlueOptics Compatible HPE P45731-B21 Cable Trunk de Fibra Óptica, MPO/APC a MPO/APC, Monomodo OS2, 3 metros, 12 Fibras, LSZH, Amarillo

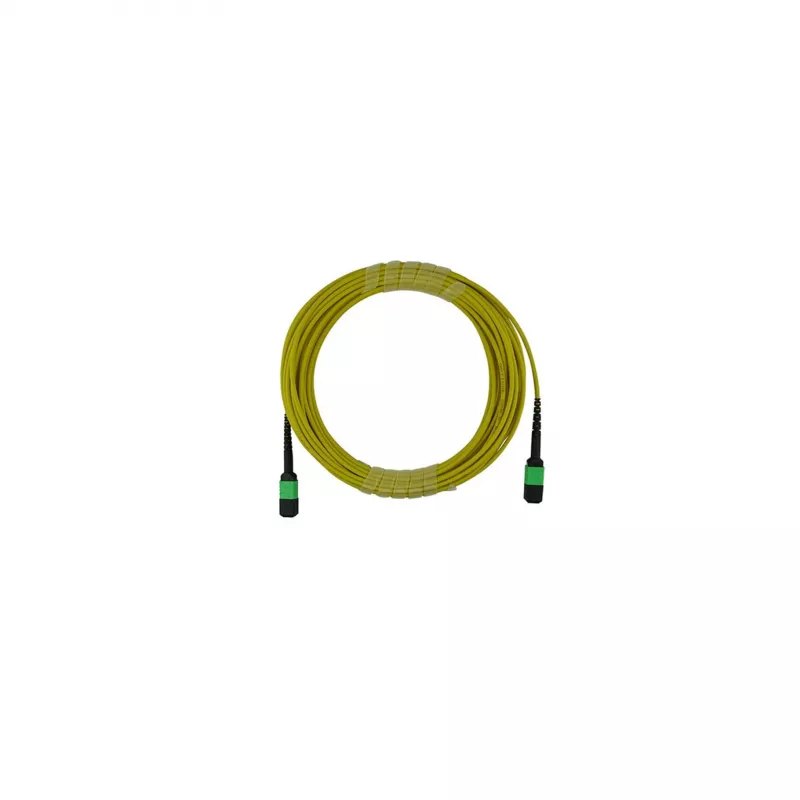

The BlueOptics Compatible HPE P45731-B21 fibre optic trunk cable is a high-performance, pre-terminated MPO/APC to MPO/APC single-mode OS2 cable designed for demanding data centre, SAN, LAN, and telecommunications applications. Engineered to meet or exceed OEM specifications, this 3-metre trunk cable provides reliable, low-loss connectivity for high-speed networks.

Advantages

This trunk cable offers exceptional insertion loss (≤0.35 dB) and return loss (≥60 dB), ensuring minimal signal degradation and optimal network performance. The LSZH jacket provides enhanced safety in enclosed spaces, while the yellow colouring allows for easy identification of single-mode cabling. With 12 fibres and Type B polarity, it is ideal for parallel optics and high-density environments.

Suitable for

• Data centre backbone and horizontal cabling
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Telecommunications infrastructure
• High-speed fibre optic links (40G, 100G, and beyond)

Key specifications

• Product Type: Fibre Optic Trunk Cable
• Brand Compatibility: HPE
• Compatible Part Number: P45731-B21
• Fibre Type: Single-Mode (OS2)
• Fibre Core/Cladding: 9/125 µm
• Connector Type A: MPO/APC
• Connector Type B: MPO/APC
• Cable Length: 3 Metres
• Fibre Count: 12 Fibres
• Connector Polarity: Type B (Cross-Over)
• Ferrule Polish: Angled Physical Contact (APC)
• Insertion Loss (Max): ≤ 0.35 dB
• Return Loss (Min): ≥ 60 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, REACH
• Cable Diameter: Approx. 3.0 mm

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with HPE P45731-B21 and similar MPO/APC interfaces. Suitable for use with 40GBASE-SR4, 100GBASE-SR10, and other parallel optics transceivers.
