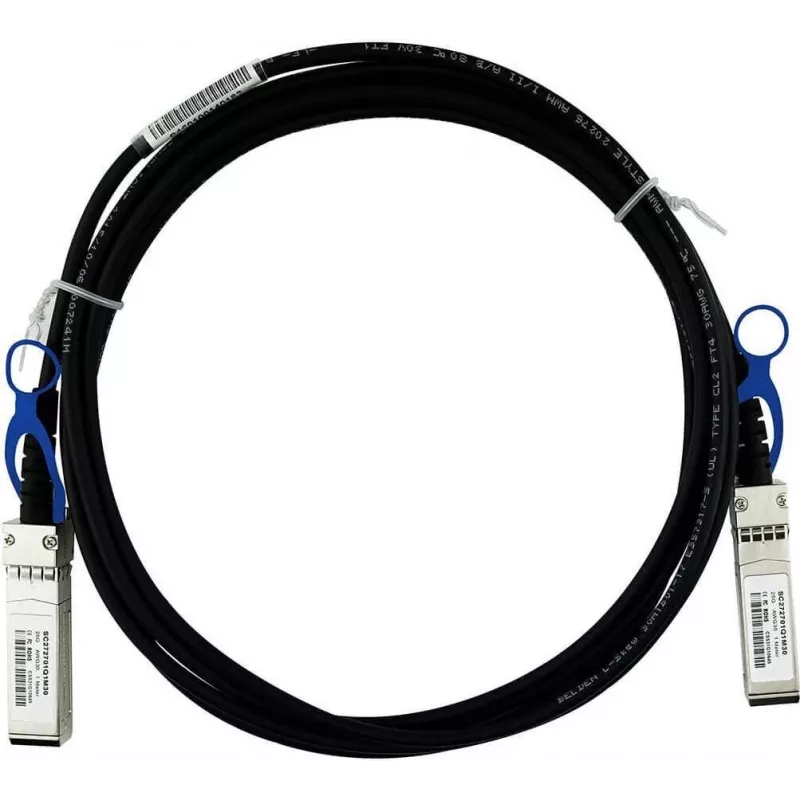

BLUEOPTICS compatible Supermicro CBL-NTWK-0944-MS28C15M BlueLAN 25GBASE-CR SFP28 a SFP28 Direct Attach pasivo, 2 metros, AWG30

The BLUEOPTICS BlueLAN CBL-NTWK-0944-MS28C15M-BL is a high-performance passive Direct Attach Copper (DAC) cable designed for 25 Gigabit Ethernet connectivity. It is fully compatible with Supermicro CBL-NTWK-0944-MS28C15M and provides a cost-effective, low-latency solution for data center and enterprise networks.

Advantages

This passive SFP28 DAC cable offers ultra-low power consumption, hot-swappable convenience, and reliable signal integrity over 2 meters. It eliminates the need for separate transceivers, reducing cost and complexity. The AWG30 gauge ensures flexibility while maintaining excellent performance for 25GBASE-CR applications.

Suitable for

• Data center server-to-switch connections
• High-performance computing (HPC) clusters
• Enterprise network top-of-rack switching
• 25 Gigabit Ethernet infrastructure upgrades

Key specifications

• Data Rate: 25 Gbps
• Cable Type: Direct Attach Cable (DAC) - Passive
• Connectors: SFP28 to SFP28
• Cable Length: 2 Meter
• Cable Gauge: AWG30
• Standard: 25GBASE-CR
• Media: Copper Twinax
• Compliance: SFF-8402 (SFP28 MSA), IEEE 802.3by
• Hot-Swappable: Yes
• Power Consumption: Ultra-low (passive)

Recommendations

For optimal performance, ensure your network equipment supports SFP28 interfaces and 25GBASE-CR standard. This cable is ideal for short-reach, high-speed interconnects within racks or adjacent racks.
