BLUEOPTICS compatible Supermicro CBL-NTWK-0944-MS28C25M BlueLAN 25GBASE-CR SFP28 a SFP28 Direct Attach pasivo, 3 metros, AWG26 (CBL-NTWK-0944-MS28C25M-BL)

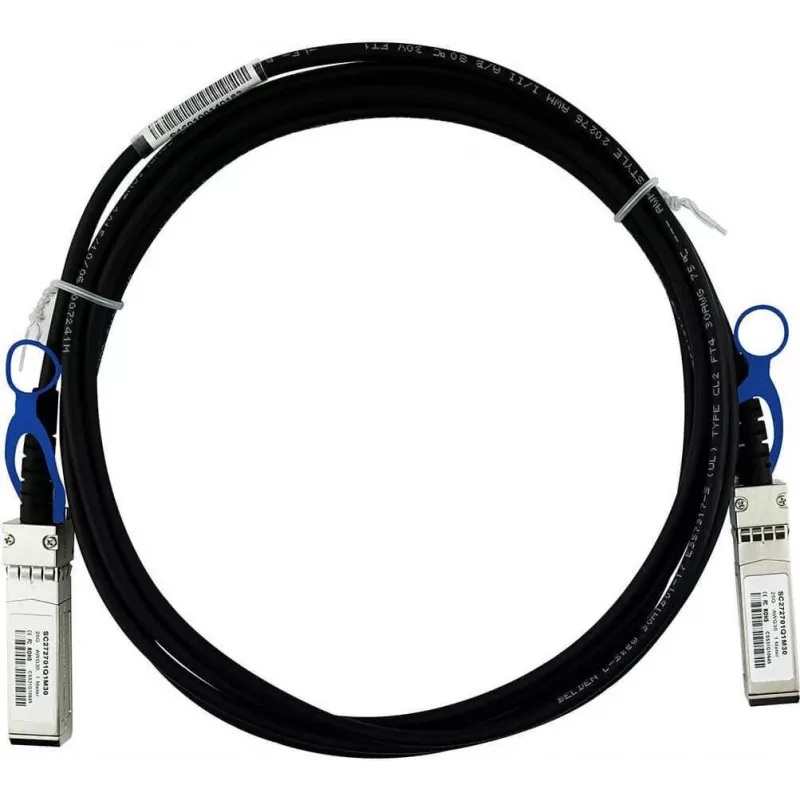

The BLUEOPTICS compatible Supermicro CBL-NTWK-0944-MS28C25M BlueLAN DAC SFP28 cable is a high-performance, passive direct attach copper (DAC) solution designed for 25 Gigabit Ethernet connectivity. It provides a cost-effective and low-power alternative to fiber optic transceivers for short-range interconnects within data centers and enterprise networks.

Advantages

This cable offers reliable 25 Gbps data transfer over a 3-meter length, with ultra-low power consumption (<0.1W per end) and hot-swappable convenience. Its passive design ensures zero latency and simple plug-and-play operation, making it ideal for high-density environments.

Suitable for

• Data center interconnect (top-of-rack to server)
• High-performance computing (HPC) clusters
• Enterprise networking and storage area networks
• Supermicro SFP28 compliant switches and servers

Key specifications

• Cable Type: Direct Attach Copper (DAC), Passive
• Connector Type: SFP28 to SFP28
• Data Transfer Rate: 25 Gbps
• Ethernet Standard: 25GBASE-CR (IEEE 802.3by)
• Cable Length: 3 Meter
• Cable Gauge: AWG26
• Impedance: 100 Ohm
• Jacket Material: PVC
• Conductor Material: Copper
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: <0.1W per end
• Hot-Swappable: Yes
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, ensure your equipment supports SFP28 interfaces and 25GBASE-CR standard. This cable is fully compatible with Supermicro CBL-NTWK-0944-MS28C25M and other SFP28 compliant devices.
