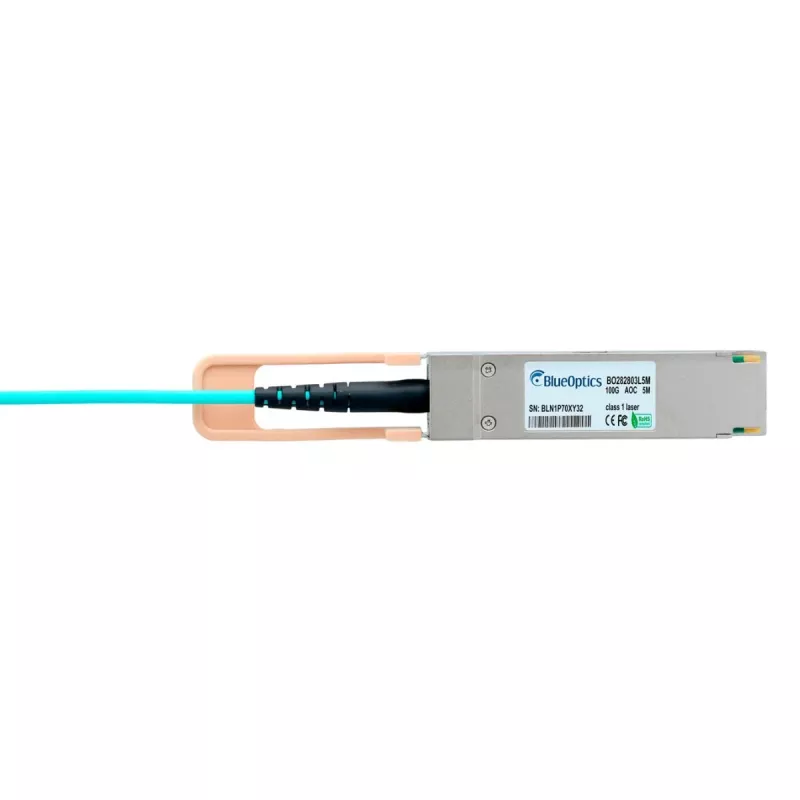

BlueOptics E100G-QSFP-QSFP-AOC-1501 Cable óptico activo QSFP28 15m compatible

The BlueOptics E100G-QSFP-QSFP-AOC-1501 is a high-performance active optical cable (AOC) designed for 100 Gigabit Ethernet applications. With QSFP28 connectors on both ends and a length of 15 meters, this cable provides reliable, low-latency connectivity for data centers, high-performance computing, and enterprise networks. It is fully compatible with the E100G-QSFP-QSFP-AOC-1501 standard and offers excellent signal integrity over multimode fiber.

Advantages

This active optical cable delivers ultra-low latency and high bandwidth, making it ideal for demanding network environments. The hot-pluggable QSFP28 form factor ensures easy installation and maintenance. With digital diagnostic monitoring (DDM) and low power consumption (<2.5W per end), it optimizes energy efficiency while providing real-time performance monitoring. The LSZH (Low Smoke Zero Halogen) jacket enhances safety in enclosed spaces.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking backbone
• 100G Ethernet switch to switch or server connections

Key specifications

• Data Rate: 100 Gigabit Ethernet (100G)
• Connector Type: QSFP28 to QSFP28
• Cable Length: 15 meters
• Cable Type: Active Optical Cable (AOC)
• Fiber Type: Multimode Fiber (MMF)
• Wavelength: 850 nm
• Electrical Interface: CAUI-4
• Power Consumption: <2.5W per end
• Supply Voltage: 3.3V
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Standards Compliance: MSA Compliant, RoHS, CE, FCC
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Hot Pluggable: Yes
• Digital Diagnostic Monitoring (DDM): Yes

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP28 ports. This cable is designed for indoor use only and should be handled with care to avoid damage to the connectors. It is recommended to use this cable in environments where high-speed, reliable data transmission is critical.
