BlueOptics F5-UPG-QSFP4X10LR-5M-BO Cable de fibra óptica InfiniBand MTP 4x LC 5m

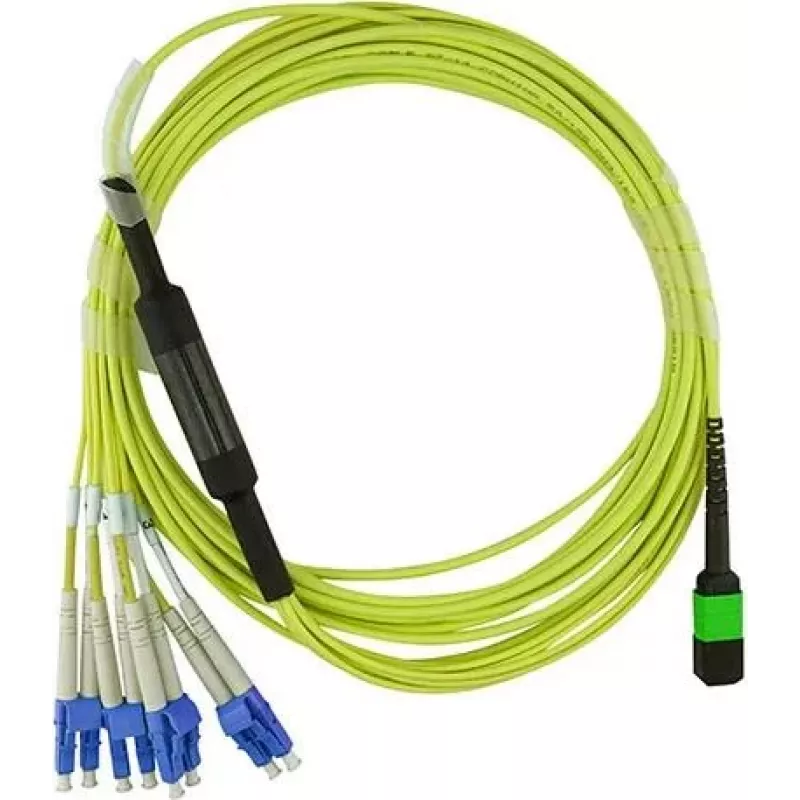

The BlueOptics F5-UPG-QSFP4X10LR-5M-BO is a 5-metre InfiniBand fibre optic cable with an MTP connector on one end and four LC duplex connectors on the other. It uses laser-optimized single‑mode G.657.A1 fibre and provides full‑duplex transmission for high‑speed links. The cable is sheathed in flame‑retardant LSZH material and is suitable for connecting MTP ports or QSFP transceivers to LC ports in patch panels, switches and other optical networking equipment.

Advantages

The cable combines single‑mode G.657.A1 fibre with precision connectors to deliver low attenuation and high return loss for reliable signal integrity over the specified distance. Use of an LSZH jacket reduces halogen emission and smoke in the event of fire. BlueOptics builds these assemblies with branded fibre and industry‑grade connector components, and each cable is tested with interferometer and OTDR to provide measured input loss and return loss values.

Suitable for

Key specifications

How to use

Inspect connectors and ensure dust caps are removed only immediately before connection. Align the MTP connector with the corresponding MTP port or QSFP module and insert until it seats securely; then connect each LC duplex plug into the corresponding LC receptacles. Route the cable to avoid sharp bends and maintain minimum bend radius for G.657.A1 single‑mode fibre. For disconnection, pull the connector body, not the cable jacket, to avoid strain on the fibre.

Recommendations

Store and handle the cable in a clean environment and use dust covers when connectors are idle. Follow manufacturer guidance for minimum bend radius and mating cycles to preserve performance. Use the provided OTDR/interferometer report to verify link loss when integrating into critical links or data centre installations.
