BlueOptics Finisar Dell FTLC9555REPM3-E6 Transceptor QSFP28 Compatible, 100GBASE-SR4, Fibra Multimodo, 4x850nm, 100 metros

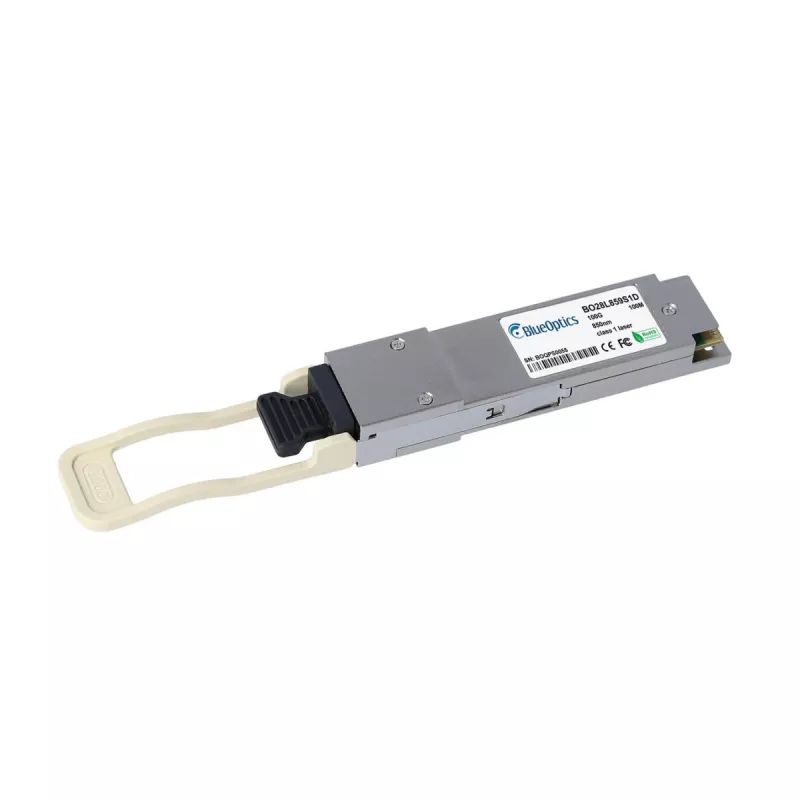

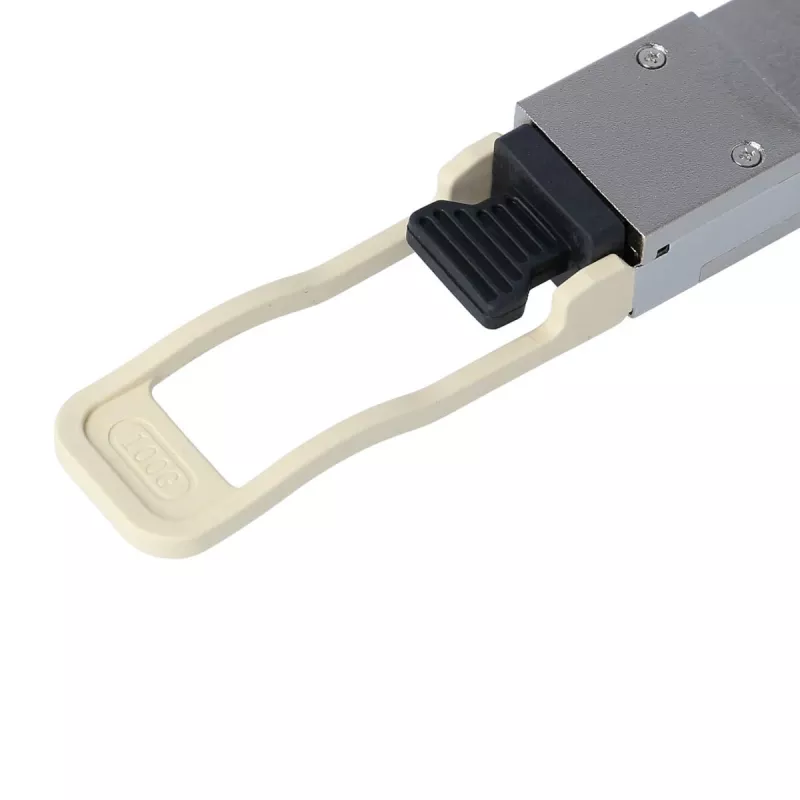

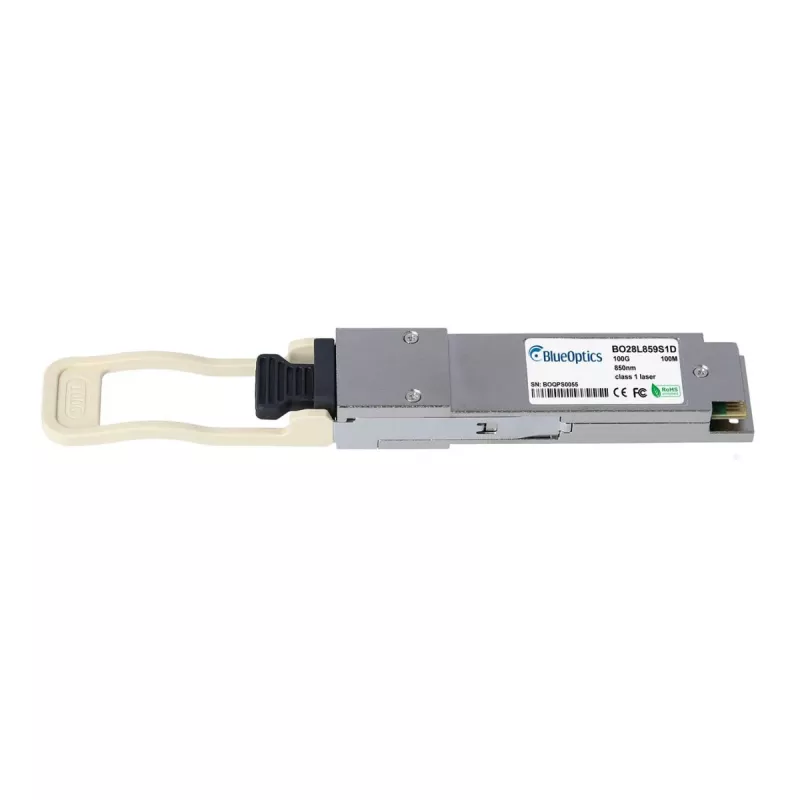

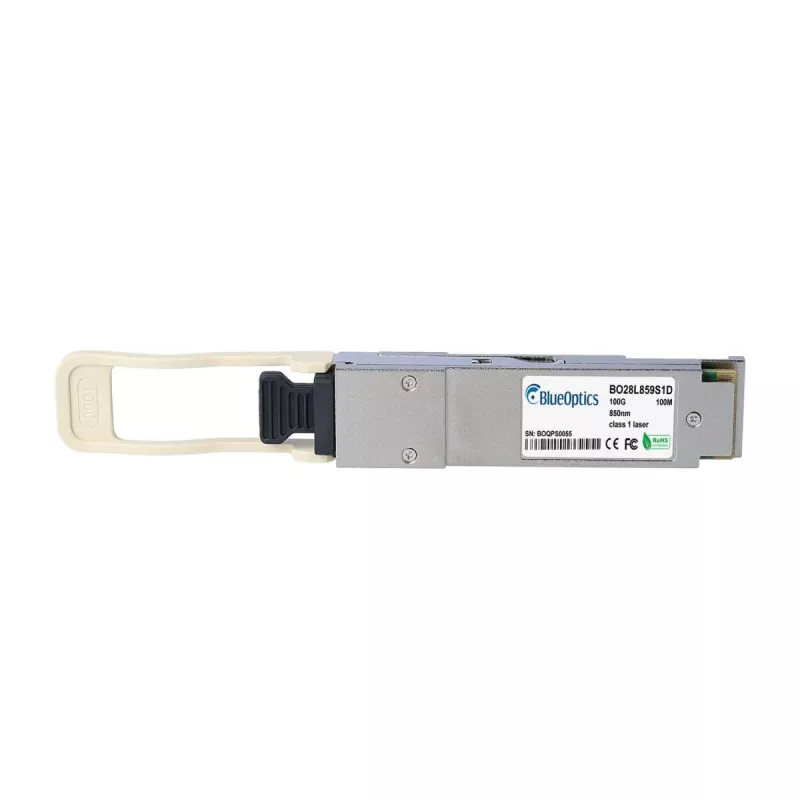

The BlueOptics BO28L859S1D is a high-performance QSFP28 transceiver designed for 100 Gigabit Ethernet applications. It is fully compatible with Finisar and Dell systems, offering reliable connectivity for data center and high-performance computing environments. This transceiver supports 100GBASE-SR4 standard over multimode fiber, utilizing four 25 Gbps lanes to achieve a total data rate of 100 Gbps. With a reach of up to 100 meters on OM3/OM4 fiber, it is ideal for short-range interconnects.

Advantages

Cost-effective alternative to OEM modules without compromising performance. Hot-pluggable design ensures easy installation and maintenance. Supports Digital Diagnostic Monitoring (DDM) for real-time monitoring of operating parameters. Low power consumption and commercial temperature range (0°C to 70°C) make it suitable for most environments.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking
• Telecommunications

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-SR4
• Fiber Type: Multimode (OM3/OM4)
• Max Reach: 100 meters
• Wavelength: 4x 850 nm
• Connector Type: MPO/MTP-12
• Optical Interface: 4x 25Gbps NRZ
• Electrical Interface: CAUI-4
• DDM/DOM Support: Yes
• Hot-Pluggable: Yes
• Protocol: Ethernet
• Compliance: IEEE 802.3bm
• Laser Type: VCSEL
• Operating Temperature: 0°C to 70°C
• Power Supply: 3.3V

Recommendations

For optimal performance, use with OM3 or OM4 multimode fiber cables and ensure proper cleaning of MPO connectors. This transceiver is compatible with a wide range of switches and routers from major vendors.
