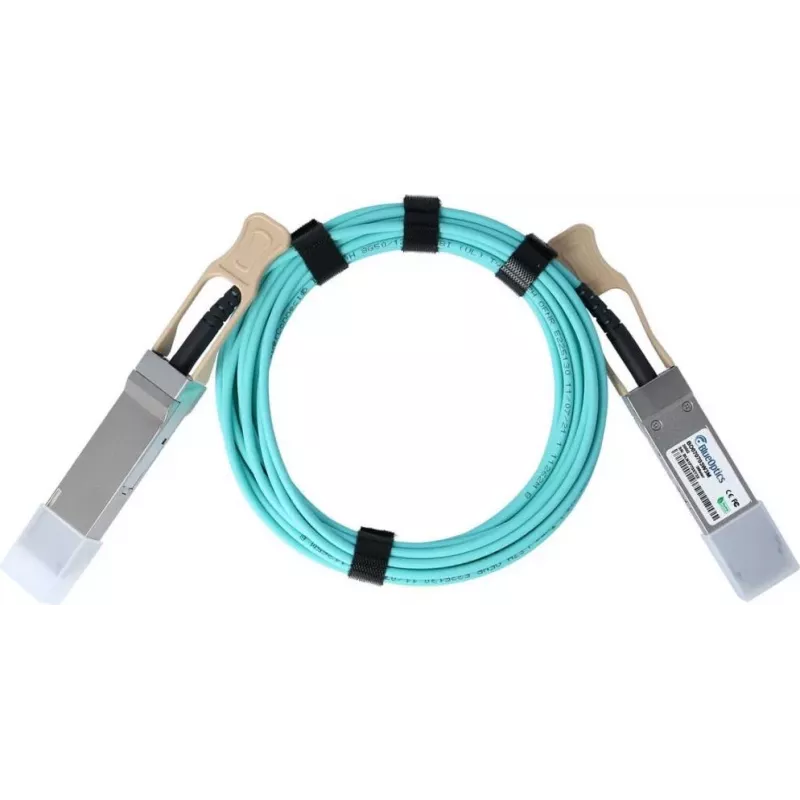

BlueOptics HPE P08301-001 cable óptico activo (AOC) QSFP56 compatible BO070703W10M, 200GBASE-SR4, Ethernet, InfiniBand, 10 metros (P08301-001-BO)

The BlueOptics BO070703W10M is a high-performance active optical cable (AOC) designed for 200 Gigabit Ethernet and InfiniBand applications. It is fully compatible with HPE P08301-001 and provides a reliable, hot-pluggable connection over multimode fiber at 850 nm wavelength. With a length of 10 meters, it offers flexible deployment in data centers and high-performance computing environments.

Advantages

This AOC delivers low power consumption, high signal integrity, and immunity to electromagnetic interference. Its QSFP56 form factor supports 200 Gbps data rate, making it ideal for bandwidth-intensive applications. The cable is hot-pluggable and RoHS compliant, ensuring ease of use and environmental responsibility.

Suitable for

• Data center interconnects
• High-performance computing clusters
• Ethernet and InfiniBand networks
• 200GBASE-SR4 compliant systems

Key specifications

• Cable Type: Active Optical Cable (AOC)
• Connector Type: QSFP56 to QSFP56
• Data Rate: 200 Gbps
• Ethernet Standard: 200GBASE-SR4
• Cable Length: 10 Meter
• Supported Applications: Ethernet, InfiniBand
• Compatibility: HPE P08301-001
• Form Factor: QSFP56
• Fiber Type: Multimode Fiber (MMF)
• Wavelength: 850 nm
• Number of Optical Lanes: 4 Transmit (Tx), 4 Receive (Rx)
• Hot-Pluggable: Yes
• Compliance: RoHS
• Electrical Interface: CAUI-4
• BlueOptics Model Series: BO070703W
• Vendor Specific SKU: P08301-001-BO

Recommendations

For optimal performance, ensure your network equipment supports QSFP56 modules and 200GBASE-SR4 standard. This cable is a direct replacement for HPE P08301-001 and is backed by BlueOptics quality assurance.
