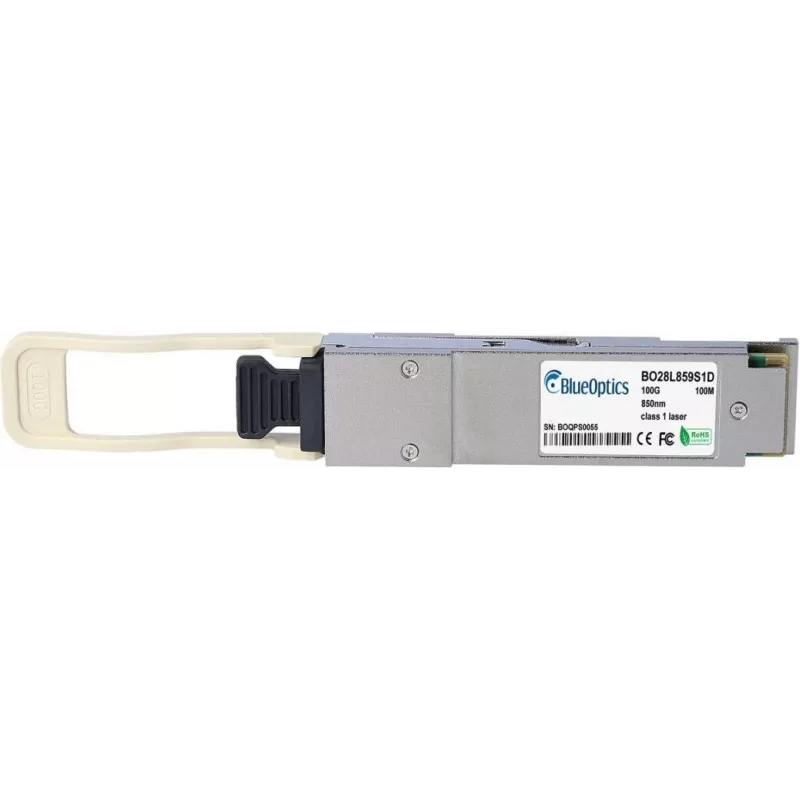

BlueOptics IBM EB59 BO28L859S1D Transceptor QSFP28, 100GBASE-SR4, fibra multimodo, 4x850nm, 100 metros, MPO/MTP, 0°C a +70°C, DDM

The BlueOptics EB59-BO is a high-performance QSFP28 transceiver designed for 100 Gigabit Ethernet applications. It is fully compatible with IBM EB59 switches and routers, offering reliable connectivity for data center and enterprise networks. This transceiver supports 100GBASE-SR4 standard over multimode fiber, utilizing 4x850nm VCSEL technology for efficient data transmission up to 100 meters on OM4 fiber.

Advantages

This transceiver provides cost-effective, high-speed connectivity with low power consumption (<3.5W typical). It supports Digital Diagnostics Monitoring (DDM) for real-time performance monitoring, ensuring network reliability. Hot-pluggable design allows for easy installation and maintenance without network downtime.

Suitable for

• Data center interconnects
• Enterprise network backbone
• High-performance computing clusters
• Cloud and virtualization environments

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-SR4
• Connector Type: MPO/MTP (12-fiber)
• Fiber Type: Multimode (OM3/OM4)
• Wavelength: 4x 850 nm
• Maximum Reach: 100 meters (OM4)
• DDM/DOM Support: Yes
• Operating Temperature: 0°C to +70°C
• Compatibility: IBM EB59

Recommendations

For optimal performance, use with OM4 multimode fiber and ensure proper MPO connector cleaning. This transceiver is MSA compliant and compatible with a wide range of QSFP28 ports.
