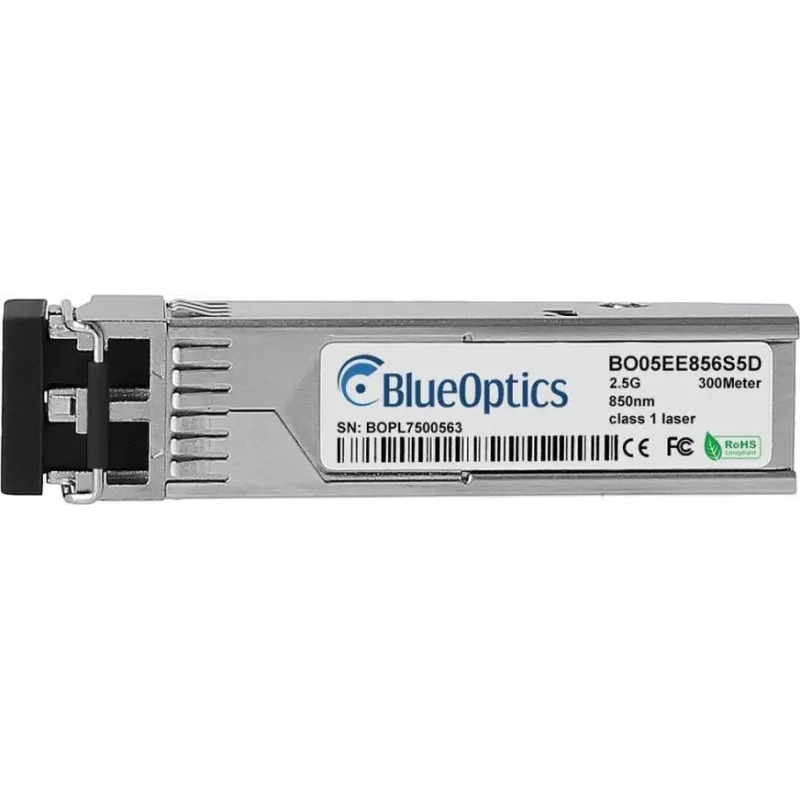

BlueOptics Planet MGB-2GTSR Transceptor SFP compatible, 2.5GBASE-SX, multimodo, 850nm, 300m, DDM, 0-70°C

The BlueOptics MGB-2GTSR-BO is a high-performance SFP transceiver module designed for compatibility with Planet MGB-2GTSR networking equipment. It delivers reliable 2.5 Gbps connectivity over multimode fiber, making it ideal for enterprise and data center applications.

Advantages

This transceiver offers cost-effective, hot-swappable deployment with full DDM/DOM support for real-time monitoring. Its 850nm VCSEL technology ensures low power consumption and extended reach up to 300 meters.

Suitable for

• 2.5GBASE-SX Ethernet networks
• Multimode fiber backbone connections
• Data centers and enterprise LANs
• Upgrading existing SFP-based systems

Key specifications

• Form Factor: SFP
• Data Rate: 2.5 Gbps
• Connector: LC Duplex
• Fiber Type: Multimode (MMF)
• Wavelength: 850 nm
• Max Distance: 300 m
• DDM/DOM: Yes
• Operating Temp: 0°C to +70°C
• Hot-Swappable: Yes
• Compliance: RoHS

Recommendations

For optimal performance, use with OM3 or OM4 multimode fiber. Ensure your switch or media converter supports SFP modules and 2.5GBASE-SX standard.
