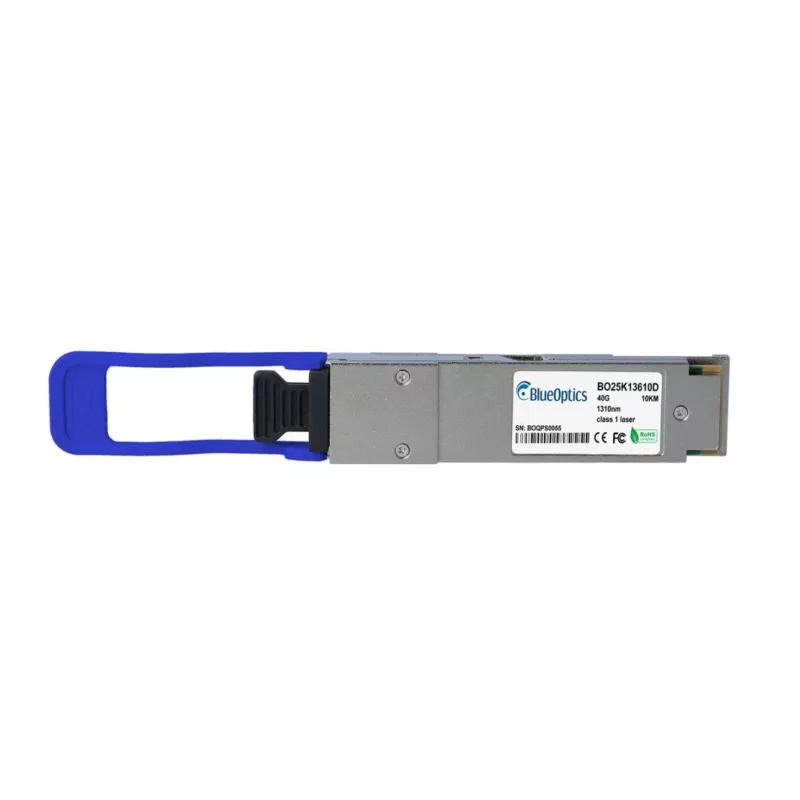

BlueOptics QSFP-40G-LR4-SG-BO Transceptor QSFP compatible con Synology, 40GBASE-LR4, LC Dúplex, 10 km

The BlueOptics QSFP-40G-LR4-SG-BO is a high-performance QSFP transceiver module designed for 40 Gigabit Ethernet applications. It is fully compatible with Synology QSFP-40G-LR4 equipment and provides reliable, long-range connectivity over single-mode fiber.

Advantages

This transceiver offers a cost-effective alternative to original Synology modules without compromising on quality or performance. It supports digital diagnostic monitoring (DDM) for real-time monitoring of optical parameters, ensuring network stability and ease of troubleshooting. With hot-pluggable capability and MSA compliance, it integrates seamlessly into existing network infrastructure.

Suitable for

• Data center interconnects
• Enterprise network backbone
• High-speed storage area networks (SAN)
• Telecommunications and service provider networks

Key specifications

• Form Factor: QSFP (Quad Small Form-Factor Pluggable)
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-LR4
• Connector Type: LC Duplex
• Fiber Type: Single-Mode Fiber (SMF)
• Max Reach: 10 km (6.2 miles)
• Wavelengths: 1271nm, 1291nm, 1311nm, 1331nm (LAN WDM)
• DDM/DOM Support: Yes
• Hot Swappable: Yes
• MSA Compliant: Yes
• Power Consumption: < 3.5 W
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Transmitter Type: DFB Laser
• Receiver Type: PIN Photo Detector

Recommendations

For optimal performance, use with OS2 single-mode fiber and ensure proper cleaning of LC connectors. This module is ideal for upgrading network links to 40G speeds over distances up to 10 km.
