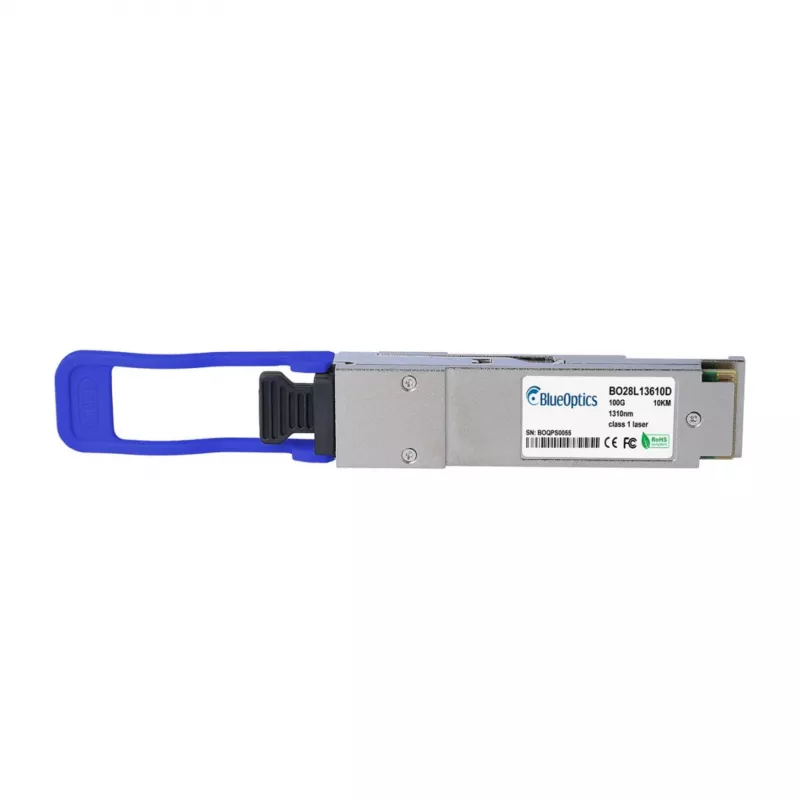

BlueOptics QSFP28 100GBASE-LR4 Transceptor BO28L13610D Compatible con Finisar FTLC1154SDPL4

The BlueOptics BO28L13610D is a high-performance QSFP28 transceiver designed for 100 Gigabit Ethernet applications. It is fully compatible with Finisar FTLC1154SDPL4 and offers reliable connectivity for data center and enterprise networks. This hot-pluggable module supports 100GBASE-LR4 protocol over single-mode fiber, delivering a maximum data rate of 100 Gbps over distances up to 10 km.

Advantages

Cost-effective alternative to OEM modules without compromising performance. Features Digital Diagnostic Monitoring (DDM) for real-time monitoring of operating parameters. Low power consumption of max 4.5 W ensures energy efficiency. MSA compliant and IEEE 802.3ba standard ensures interoperability.

Suitable for

• Data center interconnects
• Enterprise networking
• 100 Gigabit Ethernet links
• Telecommunications

Key specifications

• Transceiver Type: QSFP28
• Data Rate: 100 Gbps
• Protocol: 100GBASE-LR4
• Wavelength: 1310 nm (LAN WDM)
• Max Distance: 10 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Duplex
• DDM/DOM Support: Yes
• Power Consumption: Max 4.5 W
• Operating Temperature: 0°C to 70°C
• Hot Swappable: Yes
• Compliance: MSA Compliant, IEEE 802.3ba

Recommendations

For optimal performance, use with OS2 single-mode fiber cables and ensure proper handling of the LC connectors. This module is designed for use in compatible QSFP28 ports.
