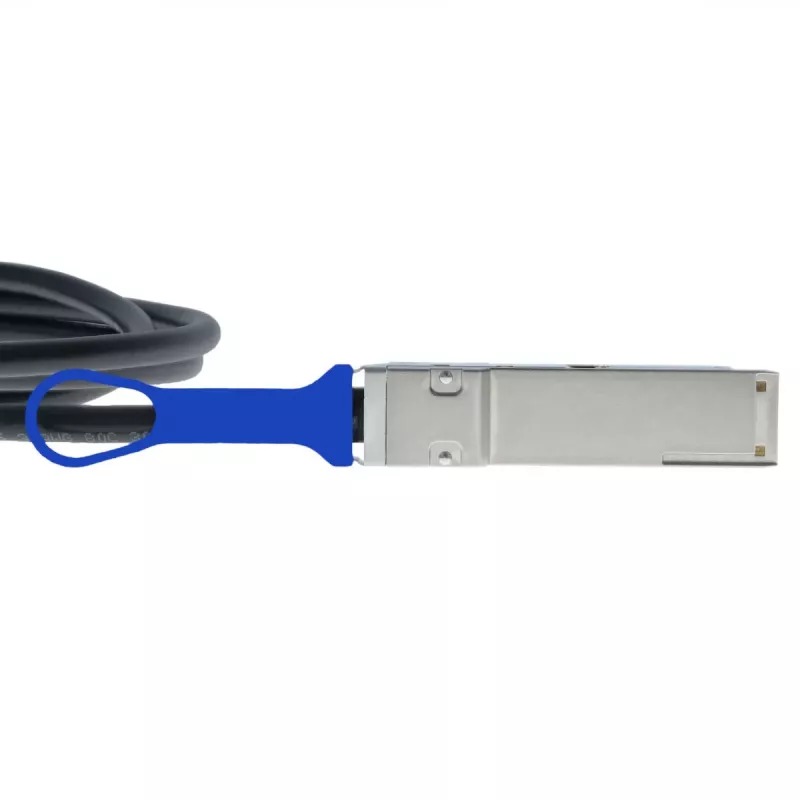

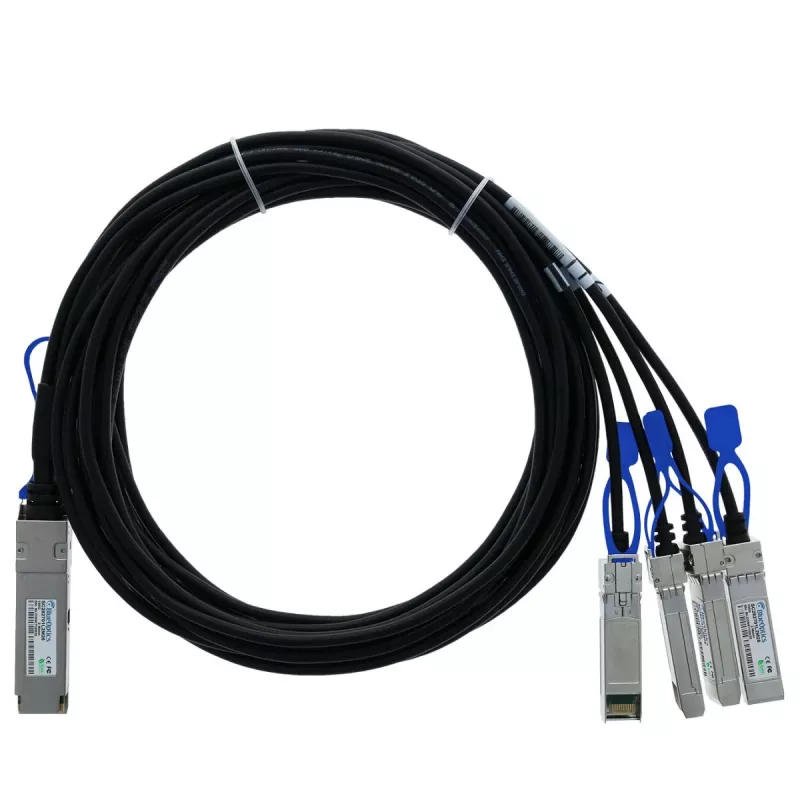

BlueOptics QSFP28-4SFP28-DAC-2M Compatible BlueLAN Cable Breakout QSFP28 DAC 2m

The BlueOptics QSFP28-4SFP28-DAC-2M is a high-performance passive direct attach copper (DAC) breakout cable designed for 100 Gigabit Ethernet to 4x 25 Gigabit Ethernet applications. This cable is compatible with BlueLAN QSFP28 DAC SC282701L2M26 and provides a reliable, cost-effective solution for short-range interconnects within data centers and enterprise networks.

Advantages

Passive copper design ensures zero power consumption and low latency. Hot-pluggable QSFP28 and SFP28 connectors enable easy installation and maintenance. Compliant with IEEE 802.3bj and SFF standards for broad compatibility.

Suitable for

• Data center top-of-rack to server connections
• 100G to 4x25G breakout applications
• High-density network environments

Key specifications

• Cable Type: Direct Attach Copper (DAC) Breakout
• Connector A: QSFP28 Male
• Connector B: 4x SFP28 Male
• Aggregate Data Rate: 100 Gbps
• Per Channel Data Rate: 4x 25 Gbps
• Cable Length: 2 meters
• Technology: Passive Copper
• Impedance: 100 Ohm
• Protocol: Ethernet
• Standards: IEEE 802.3bj, SFF-8665, SFF-8402
• Power Consumption: 0W
• Operating Temperature: 0°C to 70°C
• Voltage Supply: 3.3V

Recommendations

For optimal performance, ensure that both ends of the cable are securely connected and that the host equipment supports the required data rates and standards.
