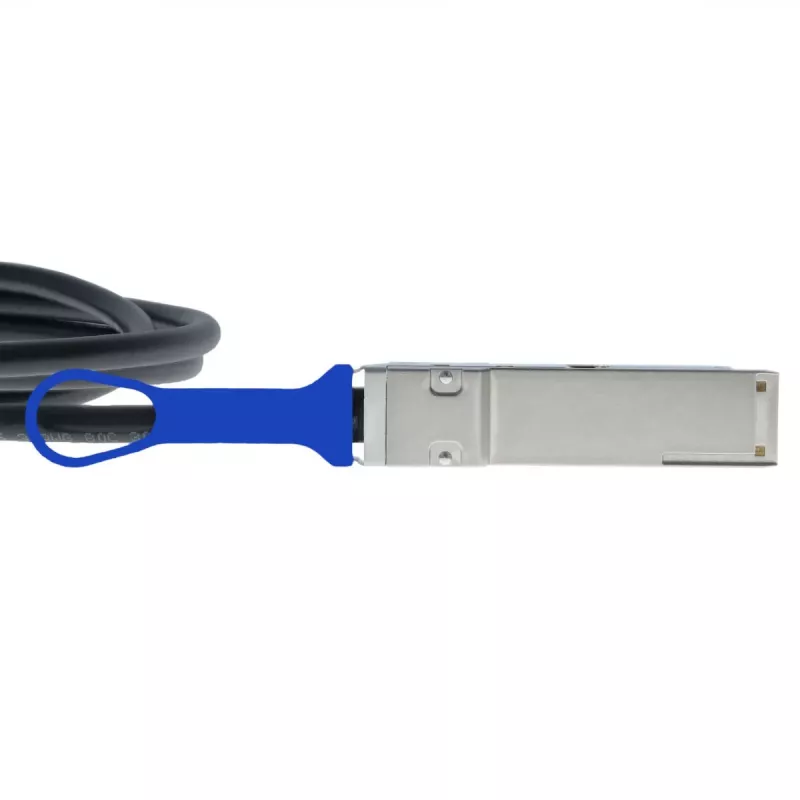

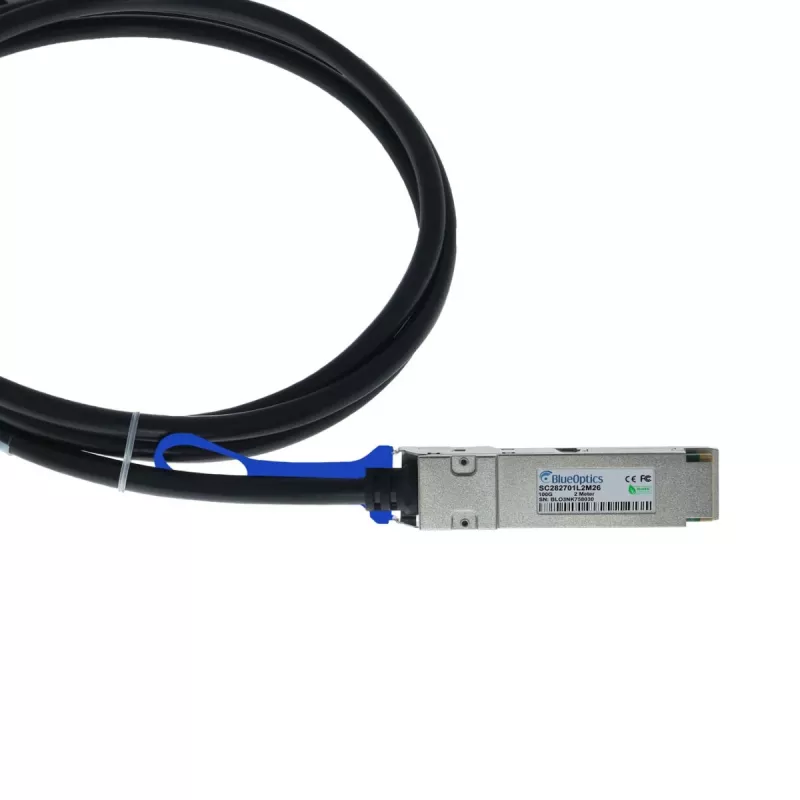

BlueOptics Ruckus 100G-Q28-S28-C-0101 Compatible BlueLAN Cable DAC QSFP28 1m

The BlueOptics Ruckus 100G-Q28-S28-C-0101 compatible BlueLAN QSFP28 Direct Attach Copper (DAC) cable is a high-performance, passive twinax cable assembly designed for 100 Gigabit Ethernet and InfiniBand EDR applications. This 1-meter cable provides a cost-effective, low-power solution for short-reach interconnects in data centers, high-performance computing (HPC), and enterprise networks.

Advantages

This DAC cable offers reliable connectivity with minimal power consumption (<0.5W) and is fully compliant with SFF-8665 (QSFP28 MSA) standards. Its passive copper design ensures low latency and zero signal degradation for distances up to 1 meter, making it ideal for server-to-switch and switch-to-switch connections within racks.

Suitable for

• Data center top-of-rack and end-of-row cabling
• High-performance computing clusters
• Enterprise networking and storage area networks
• Ruckus 100G-Q28-S28-C-0101 compatible equipment

Key specifications

• Cable Type: Direct Attach Copper (DAC) Passive Twinax
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps (100GBASE-CR4)
• Cable Length: 1 meter (3.3 feet)
• Wire Gauge: 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Hot Swappable: Yes
• Power Consumption: <0.5W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Voltage Supply: 3.3V
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure that both ends of the cable are securely connected to compatible QSFP28 ports. This cable is not recommended for distances exceeding 1 meter; for longer reaches, consider active optical cables or fiber transceivers.
