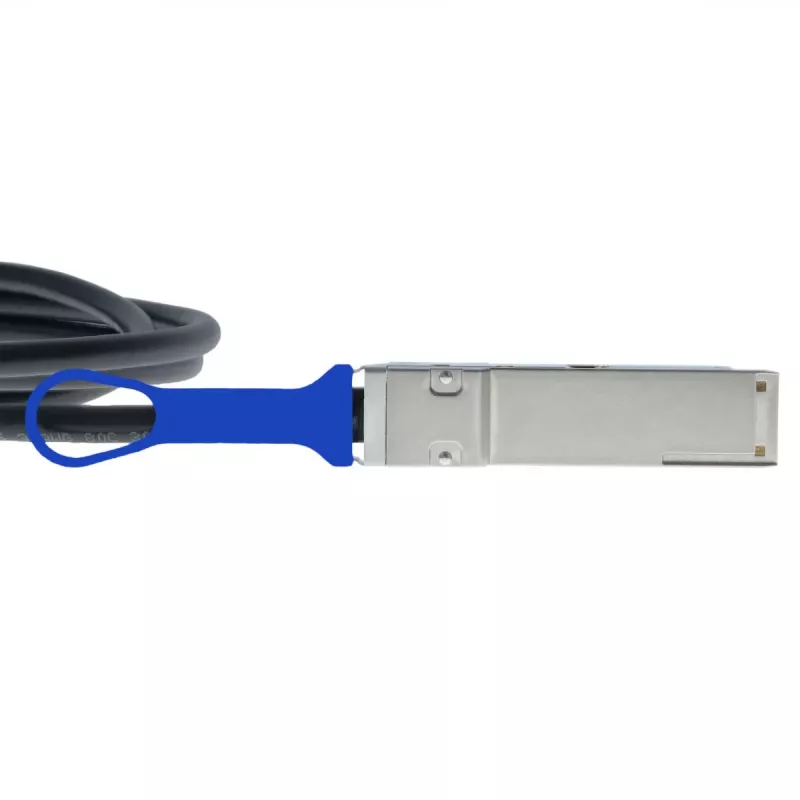

BlueOptics Ruckus 100G-Q28-S28-C-0301 Compatible BlueLAN Cable DAC QSFP28 3m

The BlueOptics Ruckus 100G-Q28-S28-C-0301 Compatible BlueLAN QSFP28 Direct Attach Copper (DAC) Cable is a high-performance, passive copper cable designed for 100 Gigabit Ethernet connectivity. It is fully compatible with Ruckus 100G-Q28-S28-C-0301 ports and provides a reliable, low-latency connection for data center and enterprise networks.

Advantages

This DAC cable offers a cost-effective and energy-efficient solution for short-range 100G connections. With a length of 3 meters, it is ideal for top-of-rack or adjacent rack deployments. The passive design ensures zero power consumption beyond the negligible <0.5W per end, and the 26AWG construction with PVC jacket provides durability and flexibility.

Suitable for

• Data center interconnects
• Enterprise network switches and routers
• High-performance computing clusters
• Storage area networks

Key specifications

• Brand: BlueOptics
• Model: 100G-Q28-S28-C-0301-RU-BL
• MPN: 100G-Q28-S28-C-0301-RU-BL
• EAN: 4063232139661
• Category: Network Cables
• Cable Type: Direct Attach Copper (DAC)
• Connector Type (End A): QSFP28
• Connector Type (End B): QSFP28
• Data Rate: 100 Gigabit Ethernet (100GbE)
• Length: 3 m
• Compatibility: Ruckus 100G-Q28-S28-C-0301
• Cable Gauge: 26AWG
• Cable Jacket Material: PVC
• Passive/Active: Passive
• Impedance: 100 Ohm
• Protocol Support: Ethernet, InfiniBand
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC
• Power Consumption: < 0.5W per end
• Hot-Pluggable: Yes

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP28 ports. This cable is not recommended for distances exceeding 3 meters; for longer runs, consider active optical cables or transceivers.
