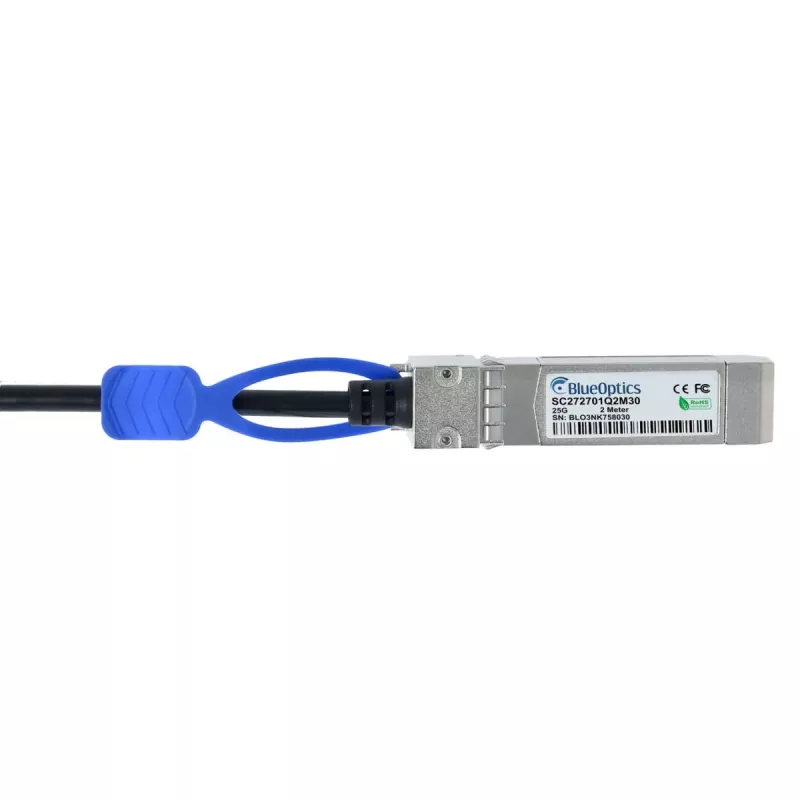

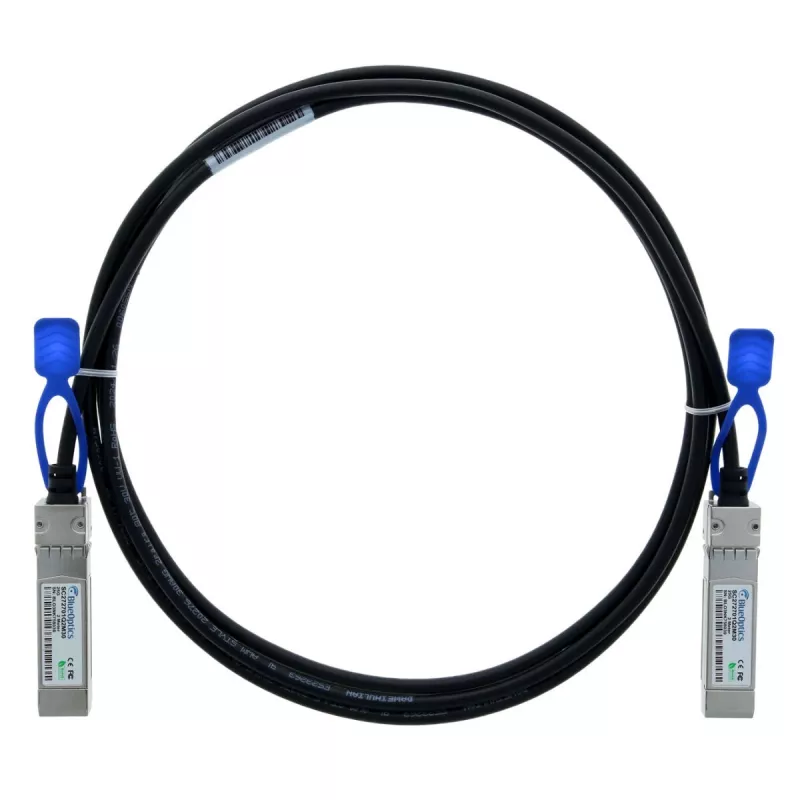

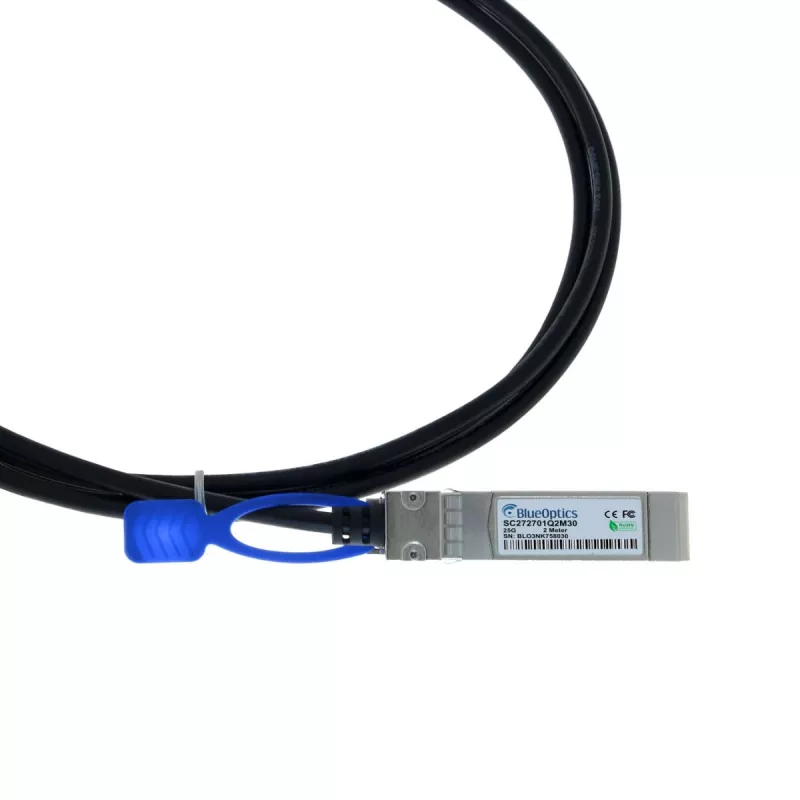

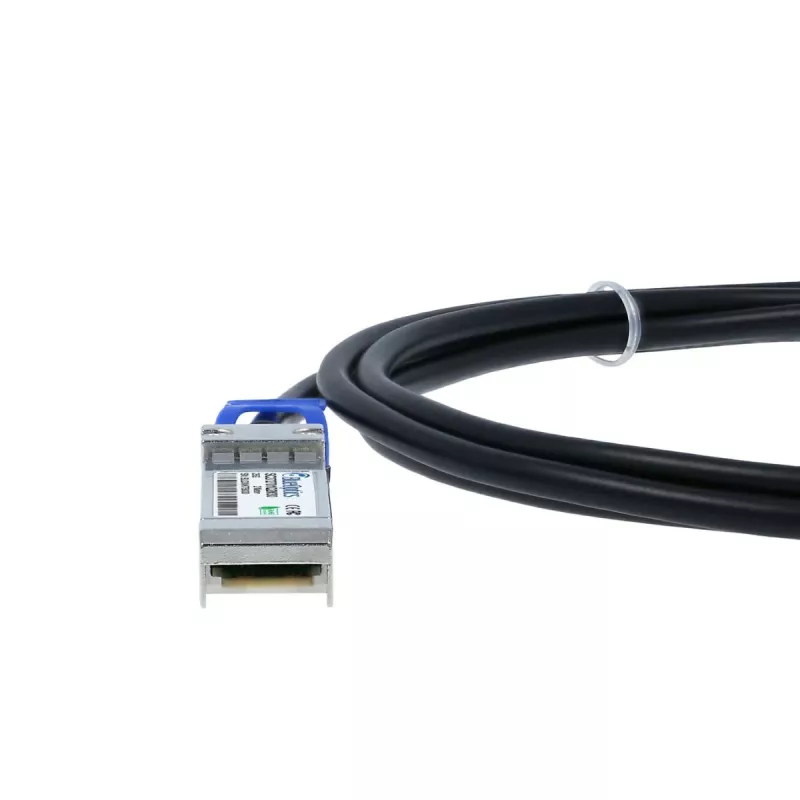

BlueOptics Ruckus 25G-SFP28-TWX-P-0101 Compatible BlueLAN Cable DAC SFP28 - 1m

The BlueOptics Ruckus 25G-SFP28-TWX-P-0101 Compatible BlueLAN DAC SFP28 Cable is a high-performance direct attach copper (DAC) cable designed for 25 Gigabit Ethernet connectivity. It provides a cost-effective and reliable solution for short-range interconnects in data centers and enterprise networks, ensuring seamless integration with Ruckus 25G-SFP28-TWX-P-0101 compatible equipment.

Advantages

This passive twinax cable offers ultra-low power consumption (<0.1W) and zero latency, making it ideal for high-density environments. Its hot-swappable SFP28 connectors enable easy installation and maintenance without network downtime. The 1-meter length is perfect for rack-to-rack or server-to-switch connections within the same cabinet.

Suitable for

• 25 Gigabit Ethernet networks (IEEE 802.3by 25GBASE-CR)
• Data center interconnects
• Server-to-switch connectivity
• Ruckus 25G-SFP28-TWX-P-0101 compatible systems

Key specifications

• Data Rate: 25 Gbps
• Connector Type: SFP28 to SFP28
• Cable Type: Direct Attach Copper (DAC), Passive Twinax
• Cable Length: 1 Meter (3.3 feet)
• AWG: 30 AWG
• Impedance: 100 Ohm
• Protocol Support: IEEE 802.3by (25GBASE-CR)
• Hot-Swappable: Yes
• Power Consumption: < 0.1W (Passive)
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Compliance: SFF-8402, SFF-8431, SFF-8432, RoHS
• Jacket Material: PVC
• Color: Black

Recommendations

For optimal performance, ensure your network equipment supports SFP28 25GBASE-CR modules. This cable is a direct replacement for Ruckus 25G-SFP28-TWX-P-0101 and is fully compatible with BlueLAN systems. Ideal for short-distance, high-speed connections within racks.
