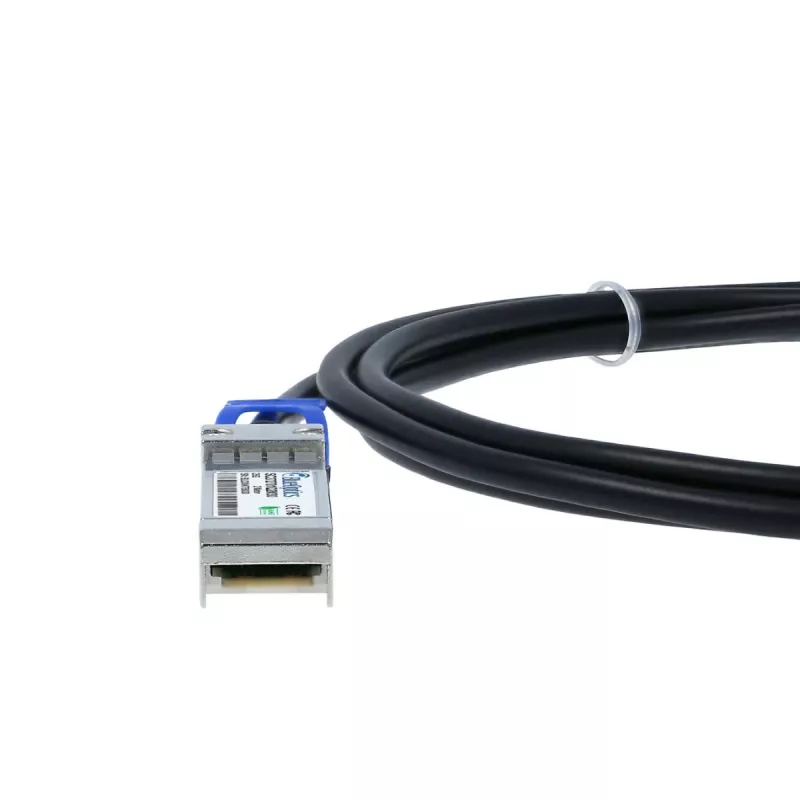

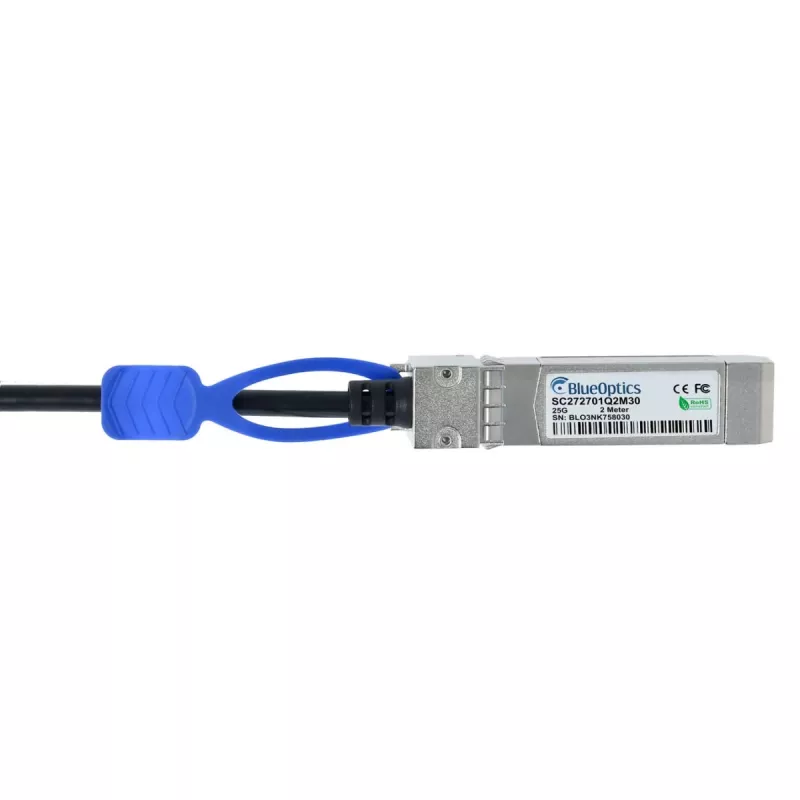

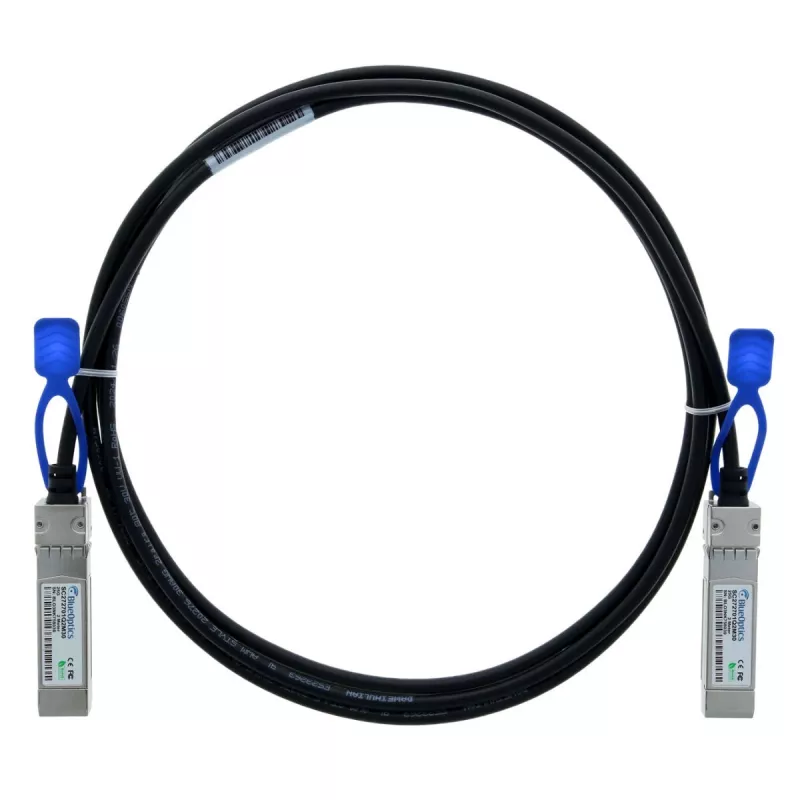

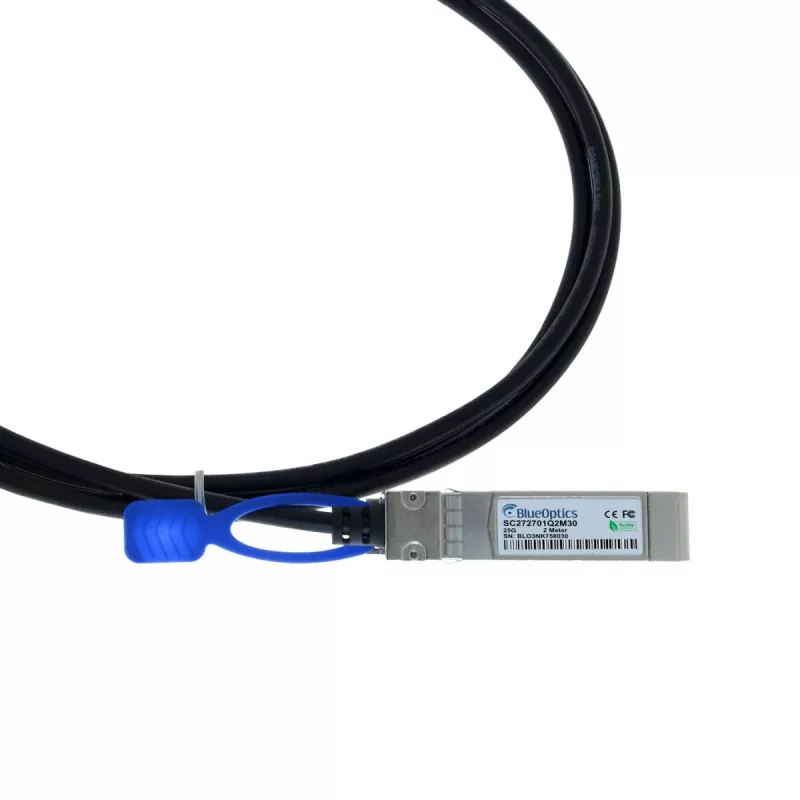

BlueOptics Ruckus 25G-SFP28-TWX-P-0201 Compatible BlueLAN Cable DAC SFP28 1m

The BlueOptics Ruckus 25G-SFP28-TWX-P-0201 Compatible BlueLAN DAC SFP28 Cable is a high-performance direct attach copper (DAC) cable designed for 25 Gigabit Ethernet connectivity. This passive twinax cable provides a reliable, low-latency connection for data centers, enterprise networks, and high-performance computing environments. It is fully compatible with Ruckus 25G-SFP28-TWX-P-0201 ports and offers a cost-effective solution for short-range interconnects.

Advantages

This DAC cable delivers exceptional signal integrity and low power consumption (<0.5W per end), ensuring energy-efficient operation. Its passive design requires no external power, and the hot-pluggable SFP28 connectors allow for easy installation and replacement without network downtime. The 30 AWG gauge and PVC jacket provide durability and flexibility for cable management.

Suitable for

• Data center top-of-rack to server connections
• Enterprise network switches and routers
• High-performance computing clusters
• 25GBASE-CR compliant applications

Key specifications

• Cable Type: Direct Attach Copper (DAC) - Passive Twinax
• Connector Type: SFP28 to SFP28
• Data Rate: 25 Gbps
• Cable Length: 1 meter
• Cable Gauge: 30 AWG
• Jacket Material: PVC
• Impedance: 100 Ohm
• Power Consumption: <0.5W per end
• Operating Temperature: 0°C to 70°C
• Compliance: MSA Compliant, RoHS, CE, FCC

Recommendations

For optimal performance, ensure your network equipment supports SFP28 25GBASE-CR standards. This cable is ideal for short-distance interconnects up to 1 meter. For longer distances, consider active optical cables or fiber transceivers.
