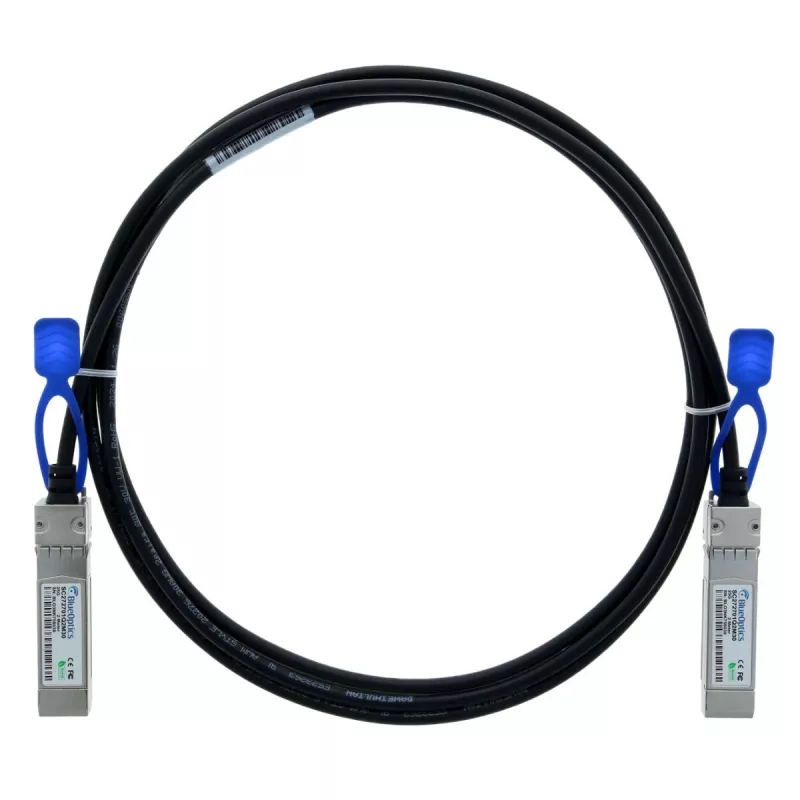

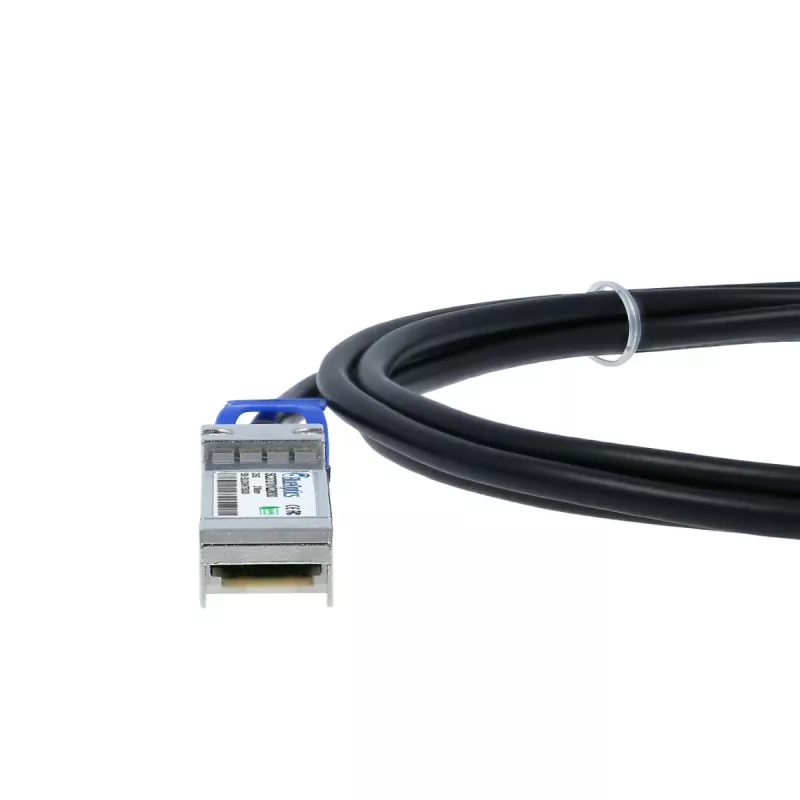

BlueOptics Ruckus 25G-SFP28-TWX-P-0501 Compatible BlueLAN Cable DAC SFP28 0,5m

The BlueOptics Ruckus 25G-SFP28-TWX-P-0501 Compatible BlueLAN DAC SFP28 Cable is a high-performance direct attach copper (DAC) twinax cable designed for 25 Gigabit Ethernet connectivity. With a length of 0.5 meters, it provides a reliable, low-latency interconnect for data center and enterprise networks. This passive copper cable is hot-pluggable and compliant with SFF-8402, SFF-8431, and SFF-8472 standards, ensuring seamless integration with compatible SFP28 ports.

Advantages

This DAC cable offers a cost-effective and power-efficient solution for short-range connections, consuming less than 0.5W per end. Its passive design eliminates the need for external power, while the 30 AWG wire gauge and PVC jacket ensure durability and flexibility. The cable supports 25G Ethernet, InfiniBand EDR, and Fibre Channel protocols, making it versatile for various applications.

Suitable for

• Data center server-to-switch interconnects
• Switch-to-switch stacking
• High-performance computing environments
• 25G network upgrades

Key specifications

• Cable Type: Direct Attach Copper (DAC) Twinax
• Connector Type: SFP28 to SFP28
• Data Rate: 25 Gbps
• Cable Length: 0.5 meters
• AWG: 30 AWG
• Passive/Active: Passive
• Impedance: 100 Ohm
• Hot-Pluggable: Yes
• Protocol Support: 25G Ethernet, InfiniBand EDR, Fibre Channel
• Compliance: SFF-8402, SFF-8431, SFF-8472, RoHS, CE, FCC
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 0.5W per end
• Jacket Material: PVC
• Vendor ID: BlueLAN

Recommendations

For optimal performance, ensure your equipment supports SFP28 25G ports and is compatible with passive DAC cables. This cable is ideal for short-distance links within racks or adjacent racks. Always verify compatibility with your specific switch or server model.
