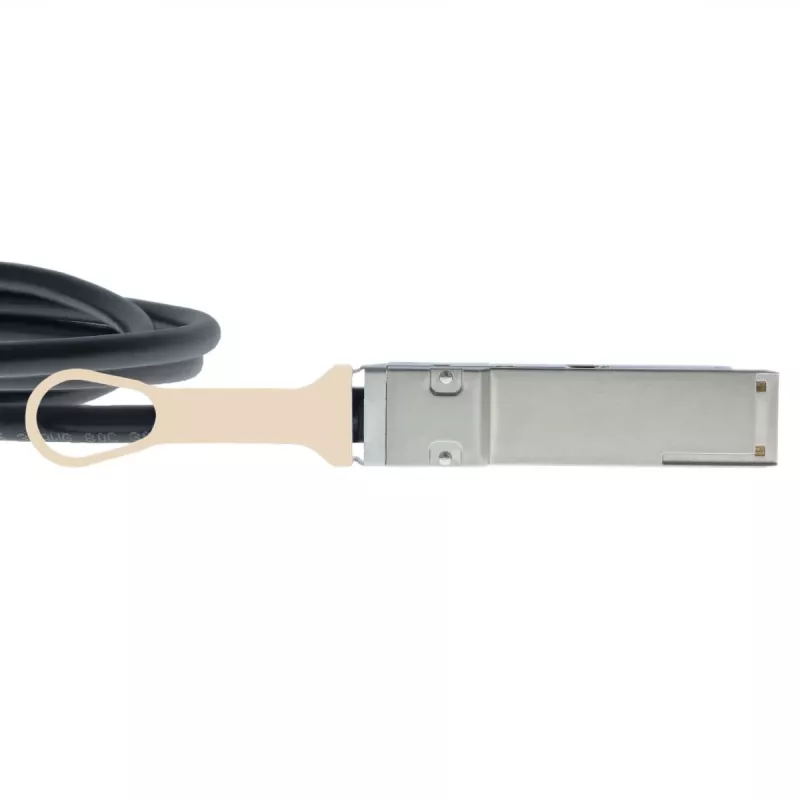

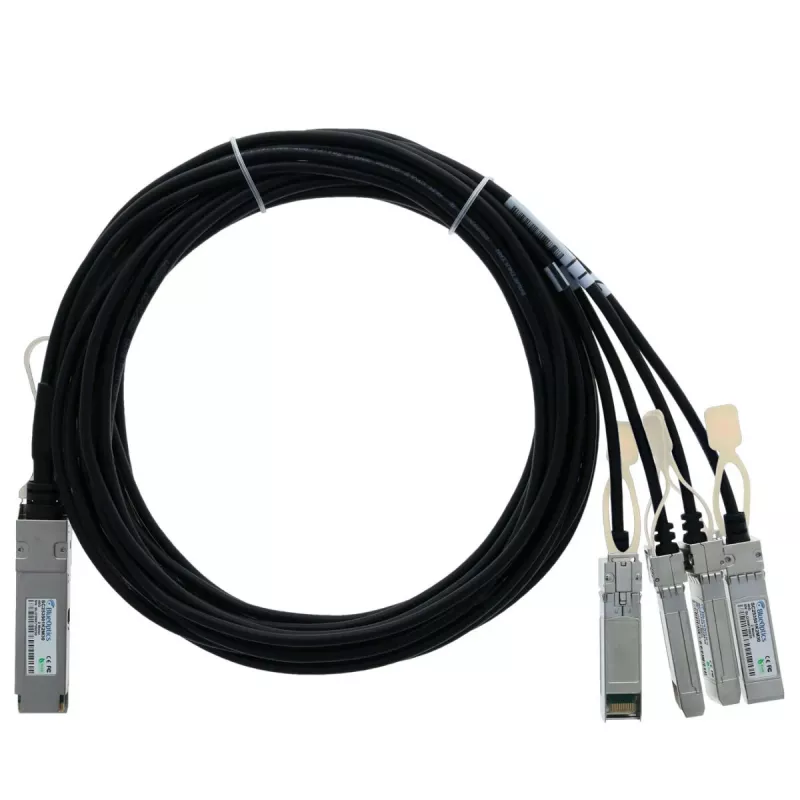

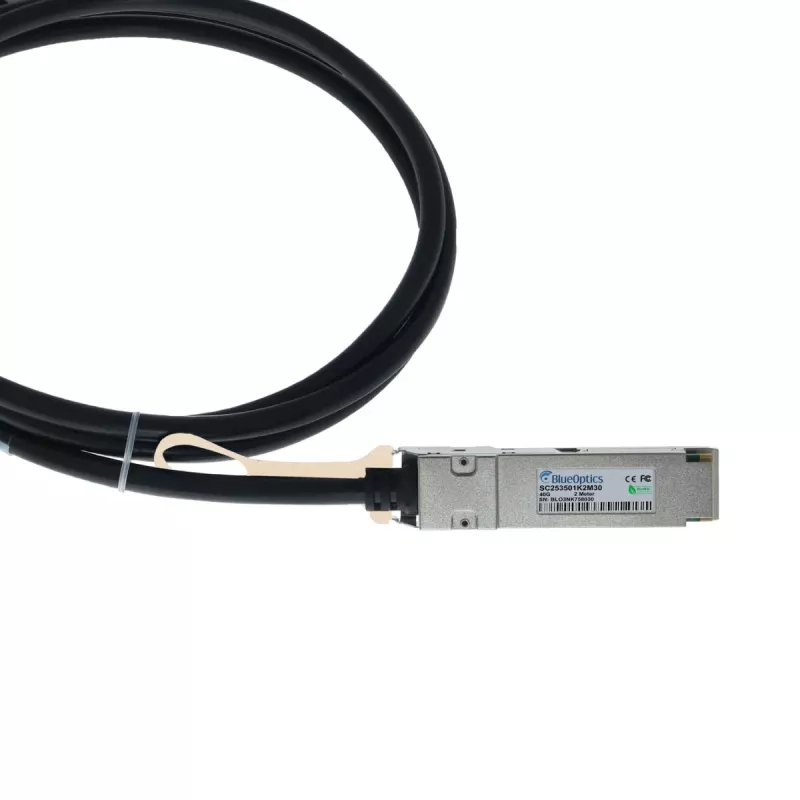

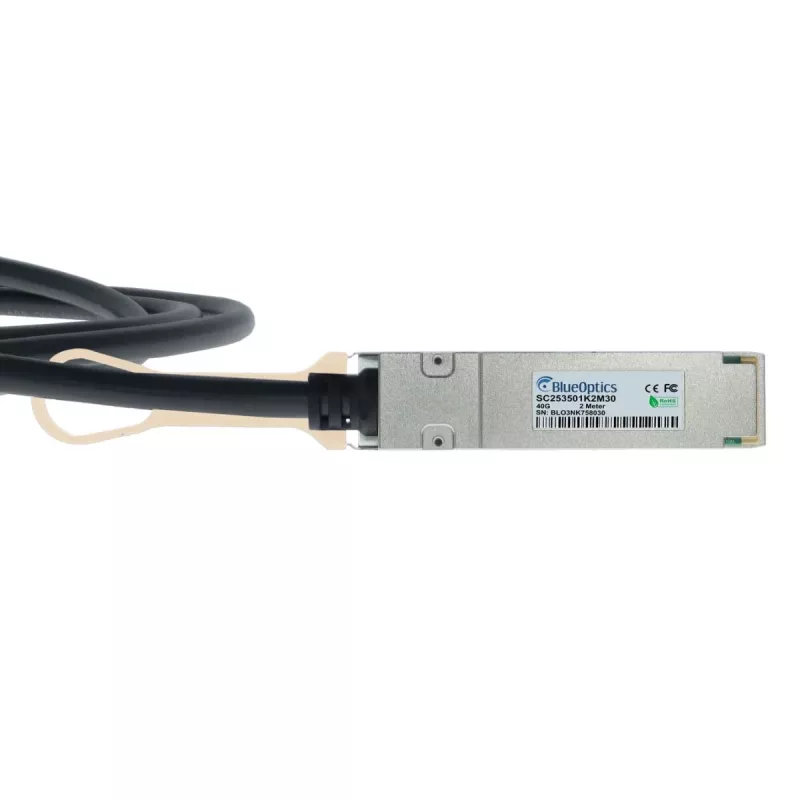

BlueOptics Ruckus 40G-QSFP-4SFP-PC-0101 Compatible BlueLAN QSFP DAC Cable Breakout - 1m

The BlueOptics Ruckus 40G-QSFP-4SFP-PC-0101 Compatible BlueLAN QSFP DAC Breakout Cable is a high-performance direct attach copper (DAC) breakout cable designed for data center and high-performance computing environments. It provides a cost-effective and reliable solution for connecting 40G QSFP+ ports to four 10G SFP+ ports, enabling seamless network upgrades and flexible connectivity.

Advantages

This passive copper breakout cable offers low power consumption (<0.1W) and high signal integrity, ensuring optimal performance for short-range interconnects. Its hot-swappable design simplifies installation and maintenance, while the PVC jacket provides durability and flexibility. The cable is fully compatible with Ruckus 40G-QSFP-4SFP-PC-0101 equipment, guaranteeing interoperability.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Network switch to server connections
• 40G to 4x10G breakout applications

Key specifications

• Cable Type: Direct Attach Copper (DAC) Breakout Cable
• Connector A: QSFP+
• Connector B: 4x SFP+
• Aggregate Data Rate: 40 Gbps
• Per Lane Data Rate: 10 Gbps
• Cable Length: 1 meter
• Transceiver Type: Passive
• Wire Gauge: 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Certifications: RoHS, CE, FCC
• MSA Compliant: Yes

Recommendations

For optimal performance, ensure that both ends of the cable are securely connected and that the equipment supports the required data rates. This cable is ideal for short-distance connections within racks or between adjacent racks.
