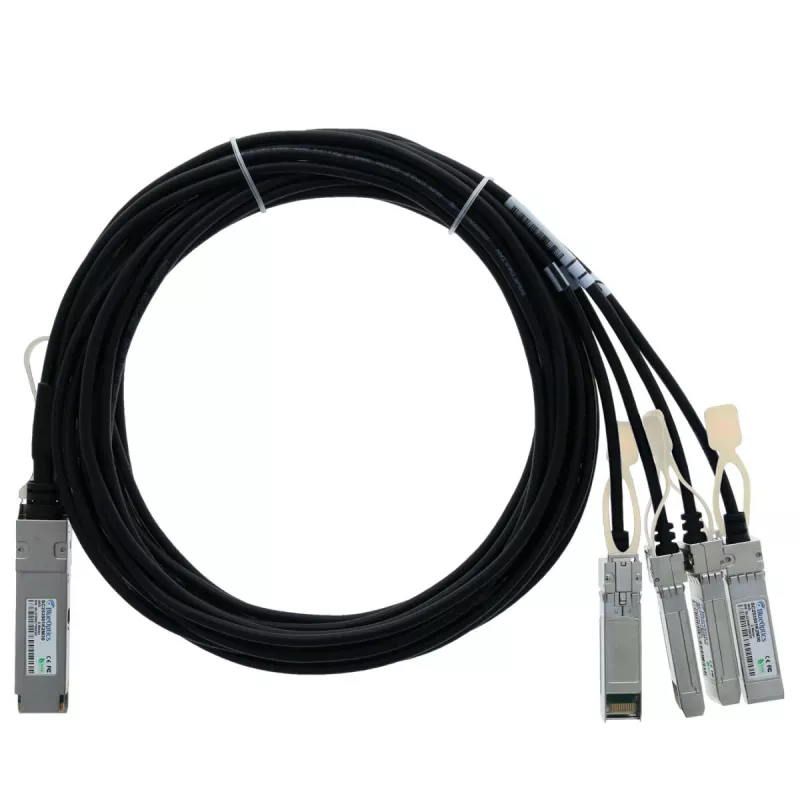

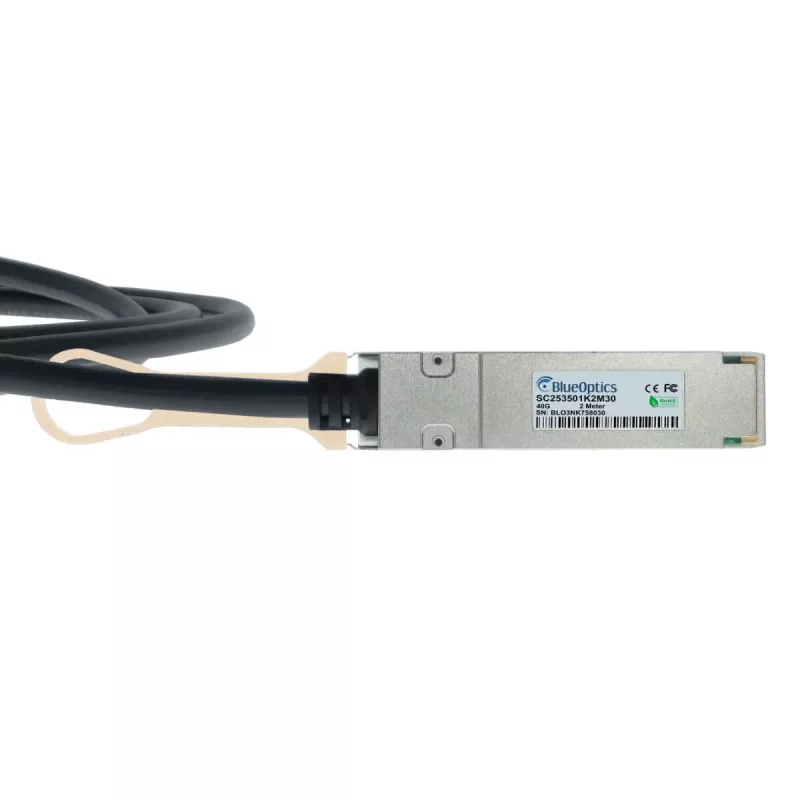

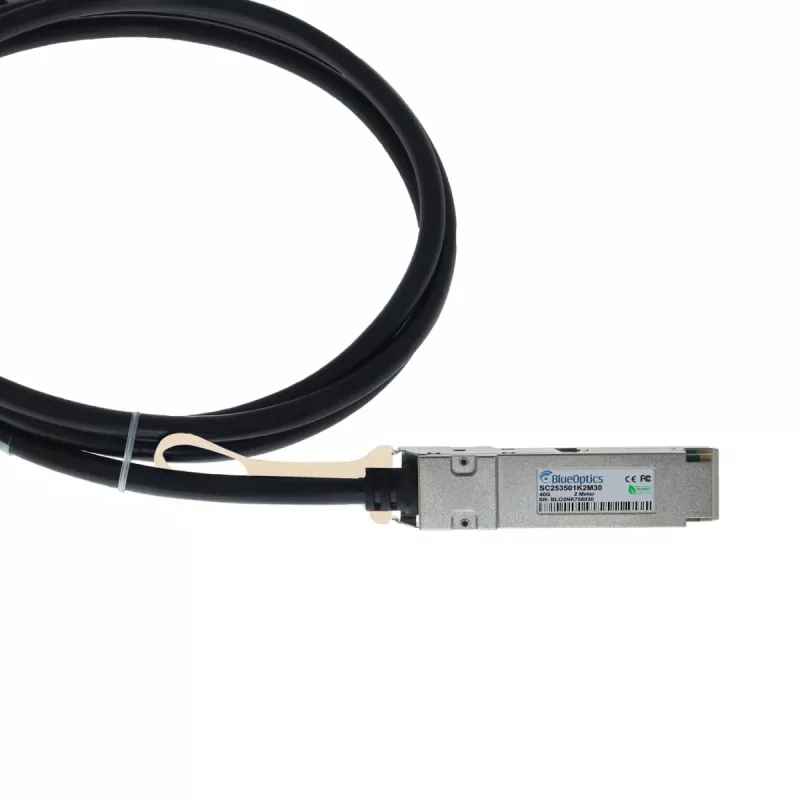

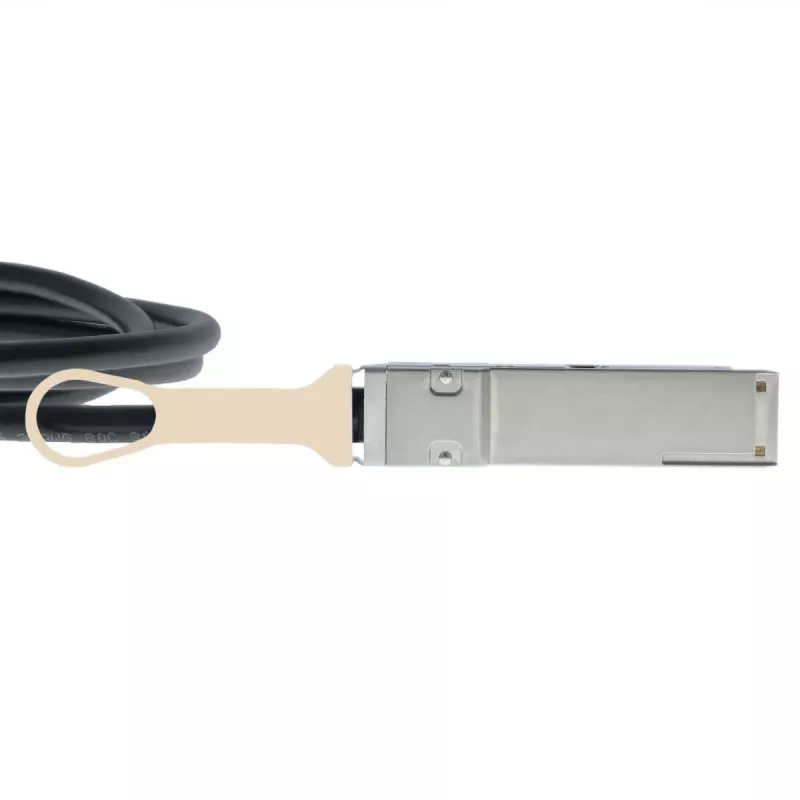

BlueOptics Ruckus 40G-QSFP-4SFP-PC-0301 Compatible BlueLAN Cable DAC QSFP - 3m

The BlueOptics Ruckus 40G-QSFP-4SFP-PC-0301 Compatible BlueLAN QSFP DAC Cable is a high-performance direct attach copper (DAC) breakout cable designed for 40 Gigabit Ethernet networks. It provides a reliable and cost-effective solution for connecting QSFP+ ports to four SFP+ ports in data centers, high-performance computing (HPC) environments, and enterprise networks.

Advantages

This passive twinax copper cable offers low power consumption (<0.5W) and hot-pluggable convenience, ensuring seamless integration without the need for additional power. Its 3-meter length (10 feet) provides flexibility in rack configurations, while the 30 AWG gauge and PVC jacket ensure durability and signal integrity. The breakout configuration (1x 40GbE QSFP+ to 4x 10GbE SFP+) enables efficient aggregation and distribution of network traffic.

Suitable for

• Data center interconnects
• High-performance computing clusters
• Enterprise network switches and routers
• Ruckus 40G-QSFP-4SFP-PC-0301 compatible equipment

Key specifications

• Cable Type: Direct Attach Copper (DAC)
• Connector A: QSFP+
• Connector B: 4x SFP+
• Data Rate: 40 Gbps (40GbE)
• Length: 3 meters
• Cable Gauge: 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Compliance: RoHS, CE, FCC, SFF-8436, SFF-8431

Recommendations

For optimal performance, ensure that both the QSFP+ and SFP+ ports are compatible with passive DAC cables. This cable is ideal for short-reach, high-speed connections within racks or between adjacent racks.
