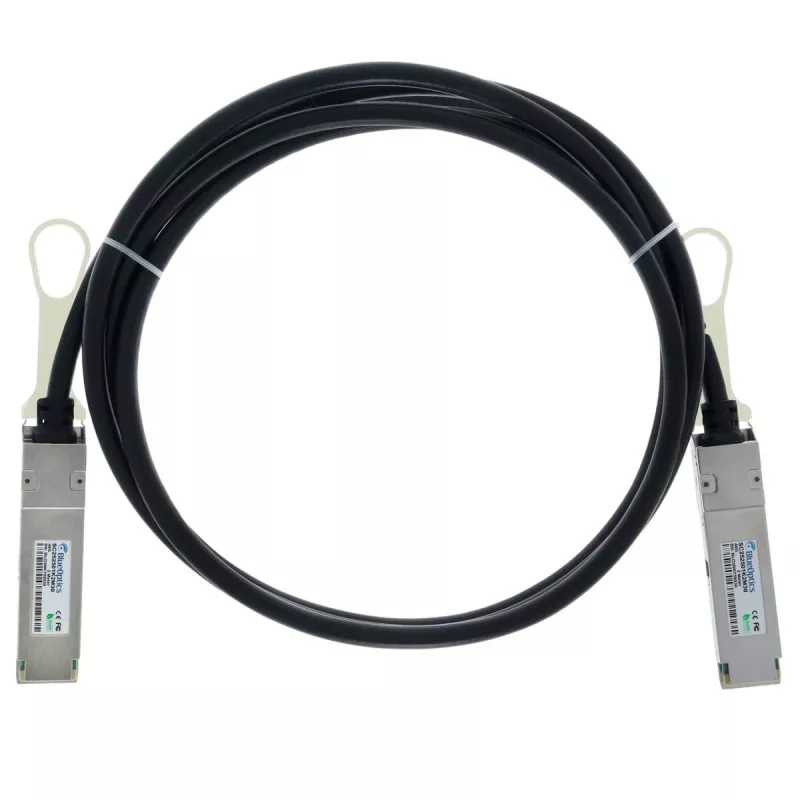

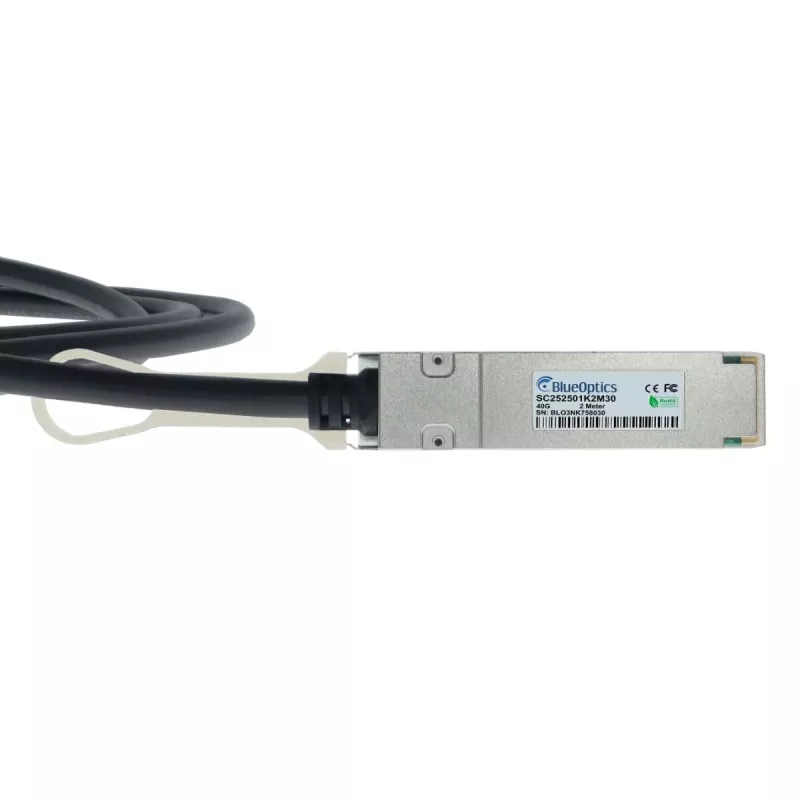

BlueOptics Ruckus 40G-QSFP-C-0501 Compatible BlueLAN DAC QSFP+ 5m Cable de Cobre Pasivo

The BlueOptics Ruckus 40G-QSFP-C-0501 Compatible BlueLAN DAC QSFP+ is a high-performance direct attach copper cable designed for 40 Gigabit Ethernet connectivity. This passive twinax cable provides a cost-effective, low-power solution for short-range interconnects in data centers and high-performance networking environments. With a length of 5 meters, it offers reliable signal integrity and is fully compatible with Ruckus 40G-QSFP-C-0501 ports.

Advantages

This DAC cable eliminates the need for separate transceivers and fiber optic cabling, reducing overall system cost and complexity. Its passive design ensures near-zero power consumption (<0.5W) and minimal latency, making it ideal for high-density switch-to-switch or switch-to-server connections. The copper twinax construction provides excellent signal quality and durability.

Suitable for

• Data center interconnect (DCI) applications
• High-performance computing (HPC) clusters
• Server and storage connectivity
• Ruckus networking equipment with QSFP+ ports

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: QSFP+ to QSFP+
• Data Rate: 40 Gbps
• Cable Length: 5 meters (16.4 ft)
• Cable Material: Copper Twinax
• Transmission Type: Passive
• Power Consumption: <0.5W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Voltage Supply: 3.3V
• RoHS Compliant: Yes
• Industry Standard: SFF-8436

Recommendations

For optimal performance, ensure that both connected devices support QSFP+ 40GBASE-CR4 or compatible standards. This cable is hot-swappable and requires no configuration. It is recommended for use within the specified temperature range to maintain signal integrity.
