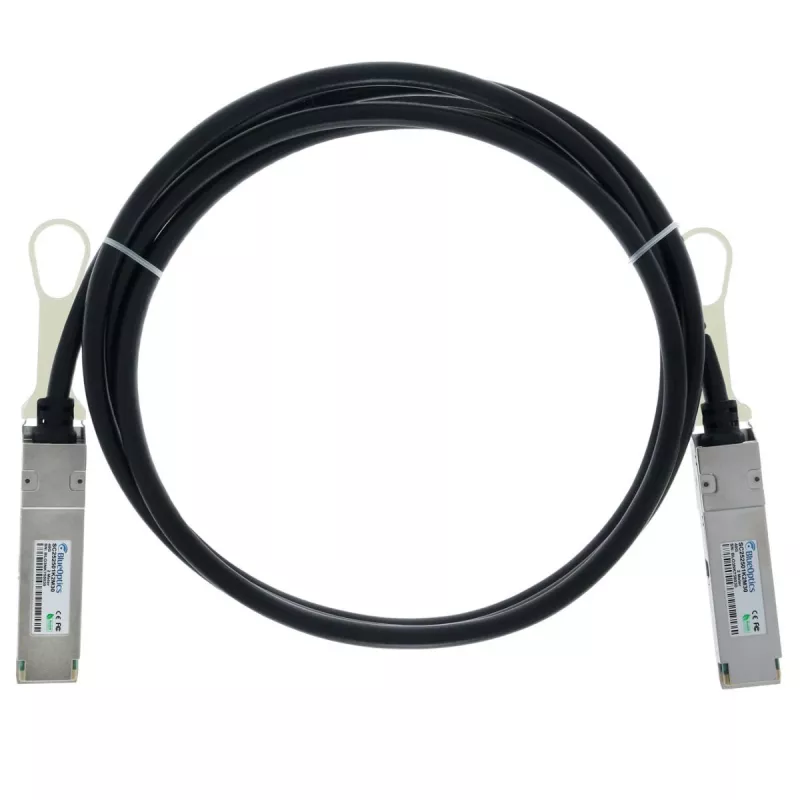

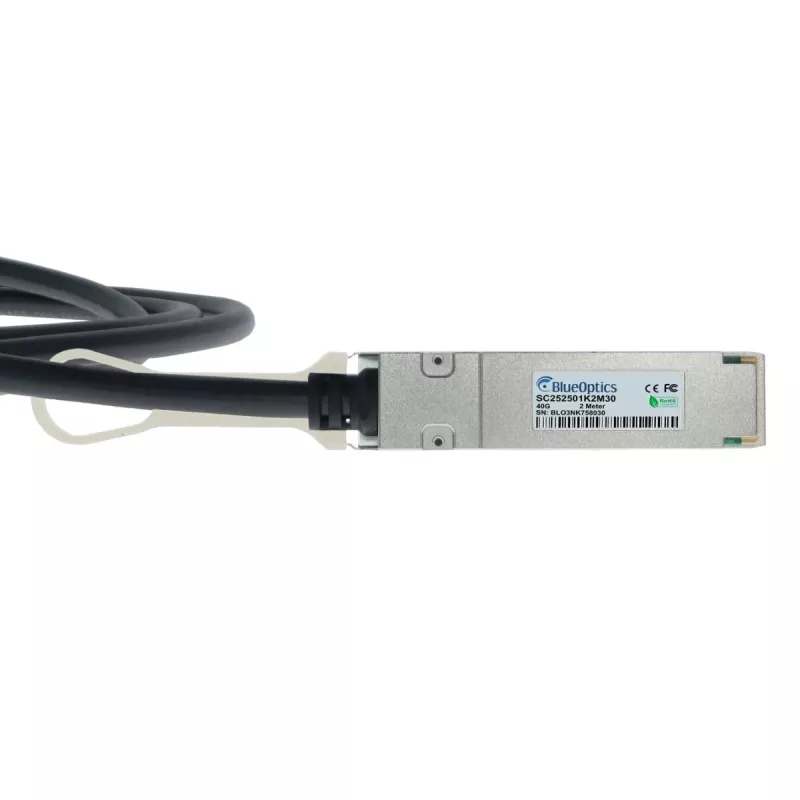

BlueOptics Ruckus 40G-QSFP-QSFP-C-0201 Compatible BlueLAN Cable DAC QSFP+ 2m

The BlueOptics Ruckus 40G-QSFP-QSFP-C-0201 Compatible BlueLAN DAC QSFP+ Cable is a high-performance direct attach copper (DAC) cable designed for 40 Gigabit Ethernet and InfiniBand QDR/FDR applications. With a length of 2 meters (6.56 feet) and passive twinax technology, this cable provides reliable, low-latency connectivity for data centers, network switches, servers, and storage systems.

Advantages

This DAC cable offers a cost-effective and energy-efficient solution for short-range 40G connections. Its passive design consumes less than 0.5W, reducing power and heat. The 28 AWG wire gauge ensures flexibility and durability, while the PVC jacket provides protection. Hot-swappable QSFP+ connectors on both ends allow easy installation and replacement without powering down equipment.

Suitable for

• Data center interconnects
• Network switches and routers
• Server and storage connections
• High-performance computing clusters

Key specifications

• Data Rate: 40 Gbps
• Cable Type: Direct Attach Copper (DAC) Passive Twinax
• Connector Type: QSFP+ to QSFP+
• Cable Length: 2 meters (6.56 feet)
• Wire Gauge: 28 AWG
• Impedance: 100 Ohm
• Power Consumption: < 0.5W
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, ensure your equipment supports QSFP+ 40G ports. This cable is compatible with Ruckus 40G-QSFP-QSFP-C-0201 and similar interfaces. Avoid bending beyond the minimum bend radius to prevent signal degradation.
