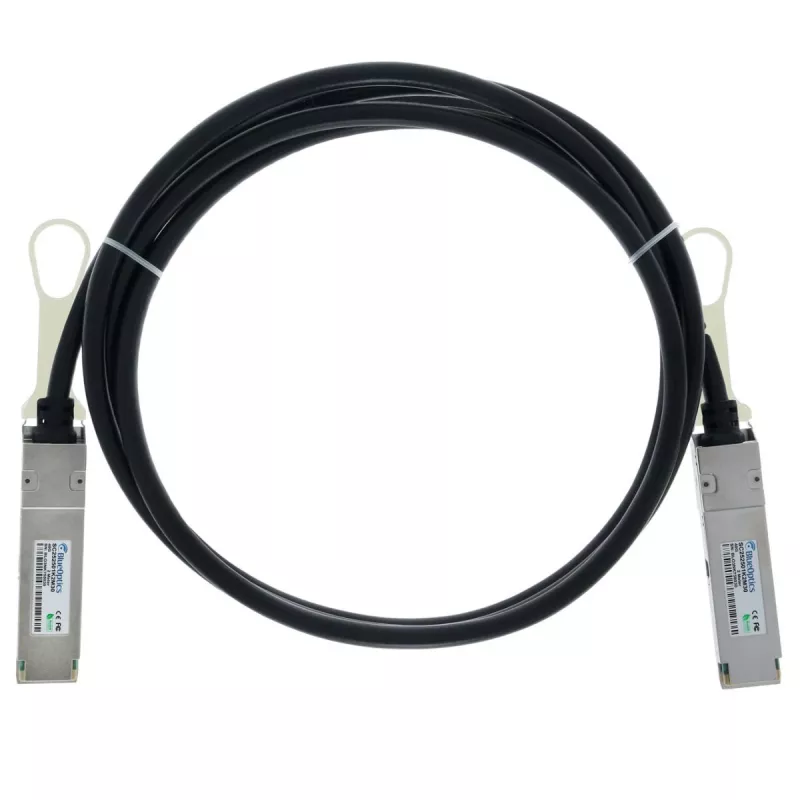

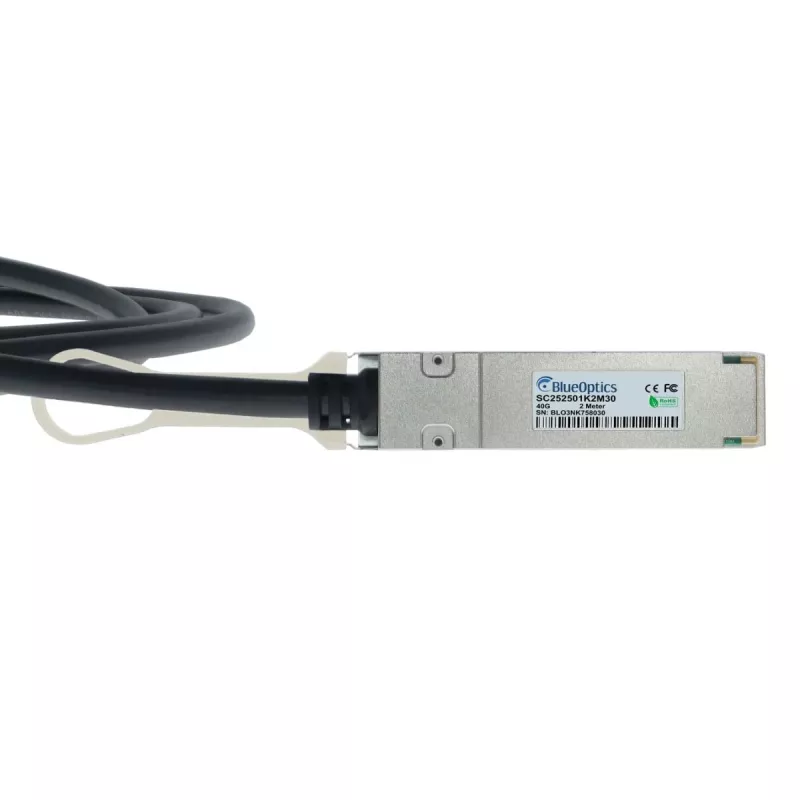

BlueOptics Ruckus Compatible 40G QSFP+ a QSFP+ Cable de Cobre Direct Attach Pasivo 5m (SC252501K5M28)

The BlueOptics Ruckus compatible 40G QSFP+ to QSFP+ passive direct attach copper cable (DAC) provides a cost-effective and reliable solution for high-speed data center and enterprise networking connections. Designed to meet the specifications of the Ruckus 40G-QSFP-QSFP-C-0501, this cable ensures seamless interoperability with Ruckus and other QSFP+ compliant equipment.

Advantages

This passive DAC cable offers low power consumption, high signal integrity, and easy plug-and-play installation. It eliminates the need for separate transceivers and fiber optic cabling, reducing overall system cost and complexity. The 5-meter length is ideal for short-range connections within racks or between adjacent racks.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing (HPC) clusters
• Enterprise network aggregation and core switching
• 40 Gigabit Ethernet (40GBASE-CR4) applications

Key specifications

• Cable Type: Direct Attach Cable (DAC) Passive Copper
• Connector Type (End A): QSFP+
• Connector Type (End B): QSFP+
• Data Rate: 40 Gbps (40GBASE-CR4)
• Cable Length: 5 meters
• Cable Gauge: 28 AWG
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC
• Compatibility: Ruckus 40G-QSFP-QSFP-C-0501 and other QSFP+ compliant devices

Recommendations

For optimal performance, ensure that both connected devices support QSFP+ interfaces and 40GBASE-CR4 standards. This cable is not compatible with QSFP28 or other form factors without proper adapters.
