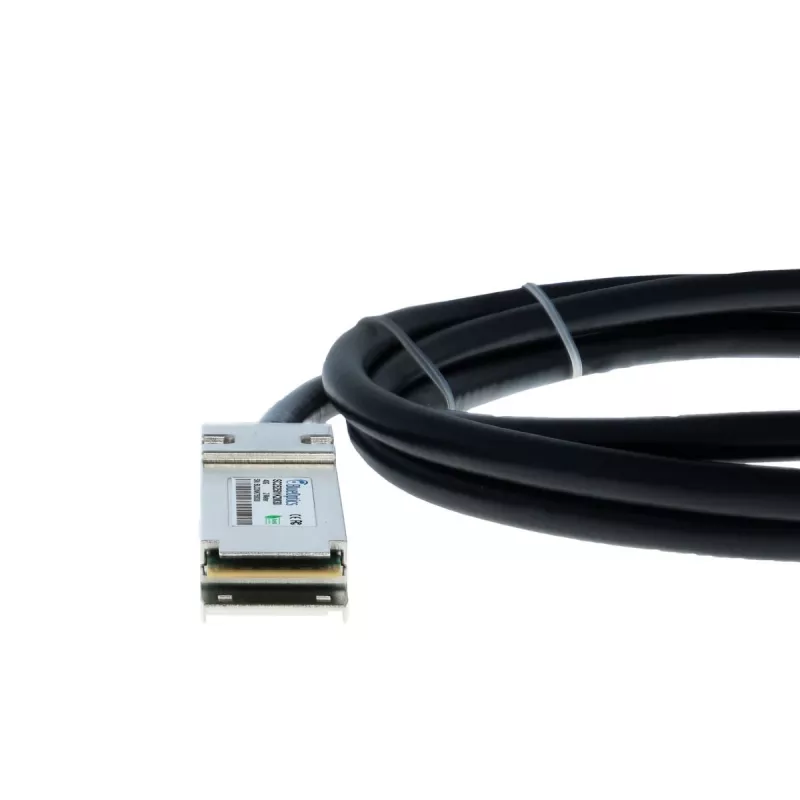

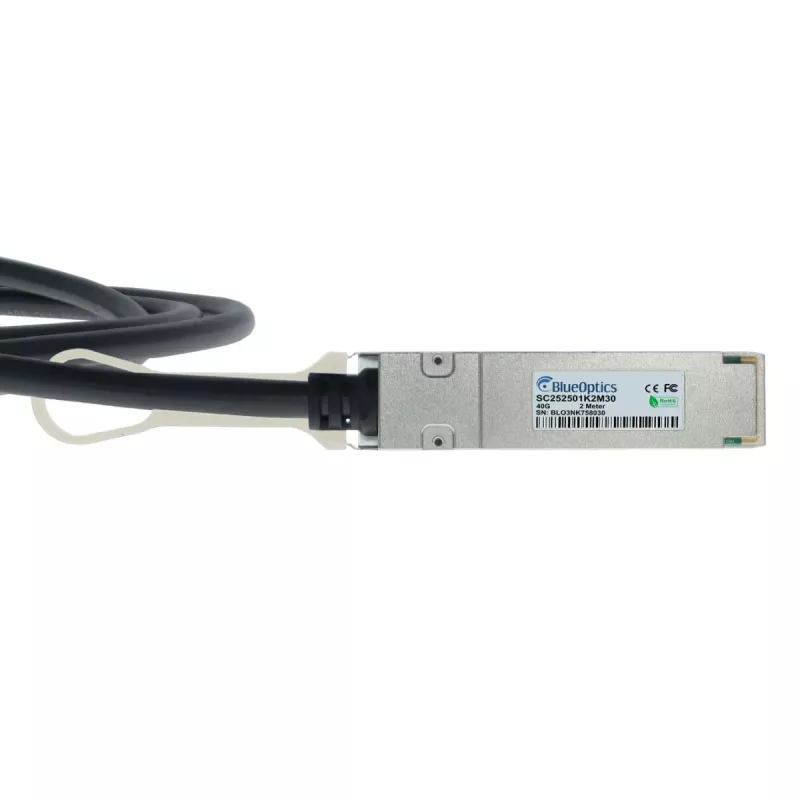

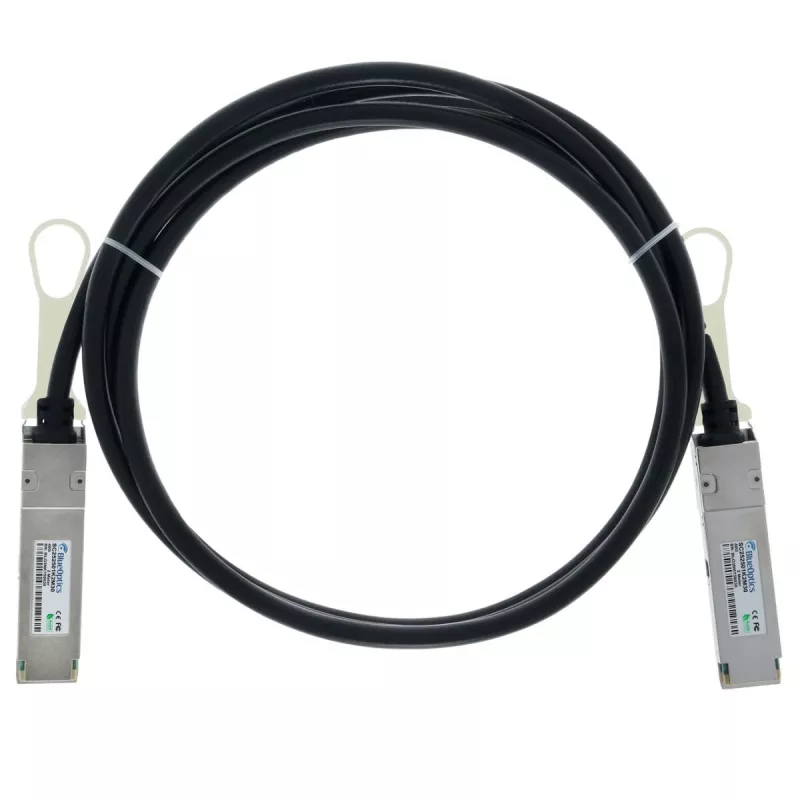

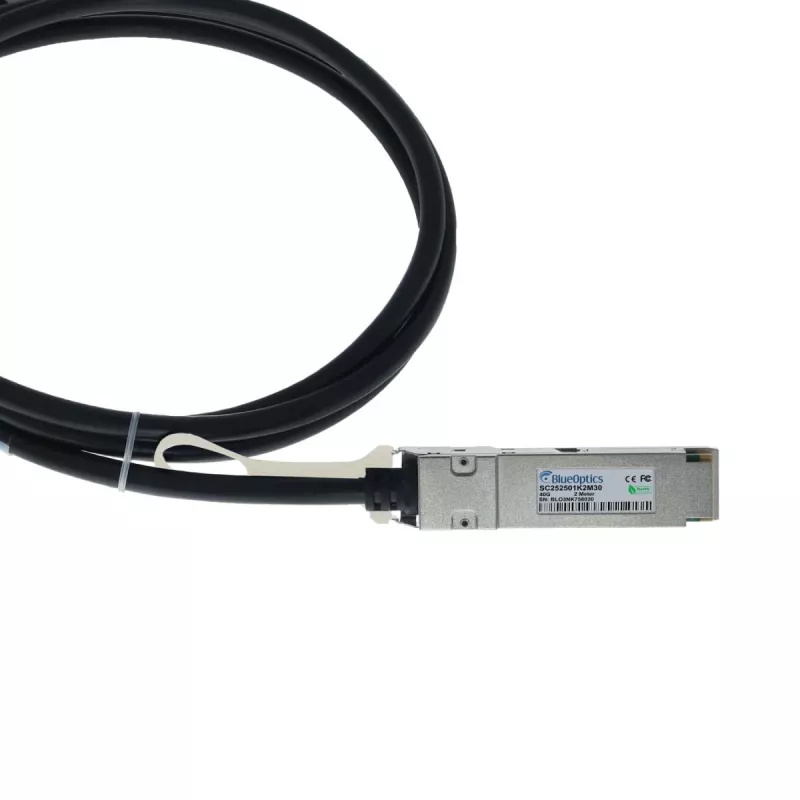

BlueOptics Ruckus E40G-QSFP-QSFP-P-0101 Cable DAC QSFP+ BlueLAN compatible - 1m

The BlueOptics Ruckus E40G-QSFP-QSFP-P-0101 Compatible BlueLAN DAC QSFP+ Cable is a high-performance direct attach copper (DAC) cable designed for 40 Gigabit Ethernet connectivity. It provides a cost-effective and reliable solution for short-range interconnections in data centers and enterprise networks.

Advantages

This passive DAC cable offers low power consumption (<0.5 W) and hot-swappable capability, ensuring easy installation and minimal downtime. It is MSA compliant and compatible with Ruckus E40G-QSFP-QSFP-P-0101 equipment, guaranteeing seamless integration.

Suitable for

• Data center top-of-rack and end-of-row connections
• High-performance computing (HPC) clusters
• Enterprise networking environments requiring 40GbE links

Key specifications

• Cable Type: Direct Attach Copper (DAC)
• Connector Type: QSFP+ to QSFP+
• Data Rate: 40 Gigabit Ethernet (40GBASE-CR4)
• Cable Length: 1 meter (3.3 feet)
• Wire Gauge: 30 AWG
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Compliance: CE, FCC, RoHS

Recommendations

For optimal performance, ensure that both ends of the cable are securely connected to compatible QSFP+ ports. This cable is ideal for short-distance, high-speed links within racks or between adjacent racks.
