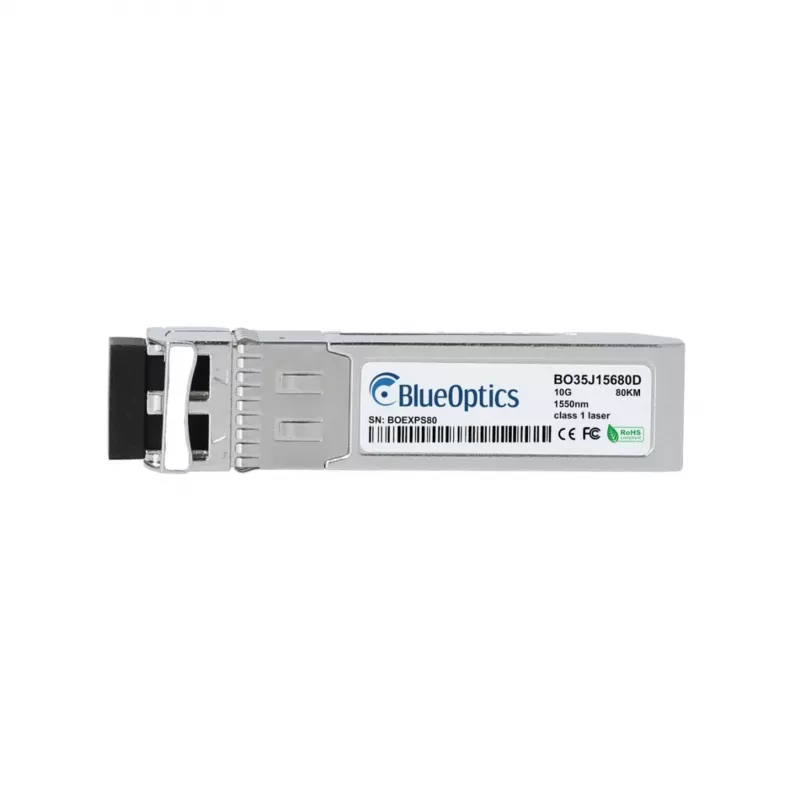

BLUEOPTICS SFP-10G-ZR-TL-BO Módulo transceptor SFP+ 10GBase-ZR, 10 Gbit/s, 80 km, 1550 nm, LC Dúplex, SMF, para TP-Link

The BLUEOPTICS SFP-10G-ZR-TL-BO is a high-performance SFP+ transceiver module designed for 10 Gigabit Ethernet over single-mode fiber. It is fully compatible with TP-Link JetStream switches and other MSA-compliant equipment, delivering reliable connectivity for long-haul data transmission up to 80 km.

Advantages

This transceiver offers exceptional reach and performance for metropolitan and wide area networks. With a wavelength of 1550 nm and EML laser technology, it ensures stable and efficient signal transmission over long distances. The hot-pluggable SFP+ form factor allows for easy installation and maintenance without disrupting network operations. Digital Diagnostic Monitoring (DDM) provides real-time monitoring of key parameters for proactive network management.

Suitable for

• 10 Gigabit Ethernet connections in data centers, enterprise networks, and service provider infrastructures
• Long-haul fiber optic links up to 80 km
• TP-Link JetStream switches and other MSA-compliant SFP+ ports

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps (10 Gigabit Ethernet)
• Max Transmission Distance: 80 km
• Fiber Type: Single-Mode Fiber (SMF)
• Wavelength: 1550 nm
• Connector Type: LC Duplex
• Standards Compliance: IEEE 802.3ae 10GBASE-ZR/ZW
• Hot-Swappable: Yes
• Digital Diagnostic Monitoring (DDM): Yes
• Power Consumption: < 1.5 W
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Laser Type: EML (Electro-absorption Modulated Laser)
• Transmit Power: 0 to 4 dBm
• Receiver Sensitivity: -24 dBm
• Compatibility: MSA Compliant, optimized for TP-Link JetStream switches

Recommendations

For optimal performance, pair this transceiver with single-mode fiber optic cables and ensure proper cleaning of LC connectors before installation. Compatible with any SFP+ port that supports 10GBASE-ZR standards.
