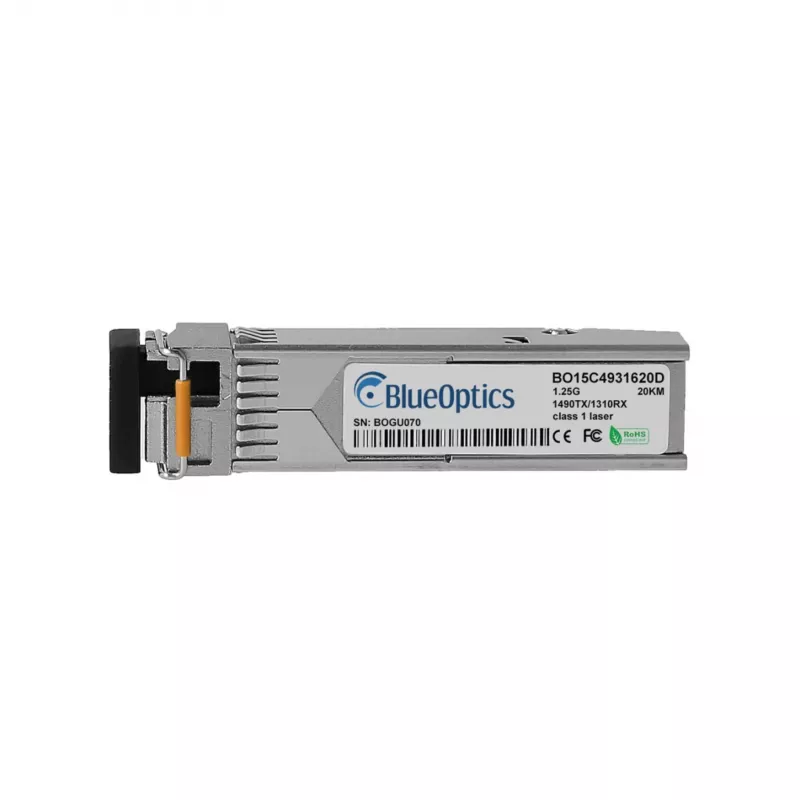

BlueOptics SFP BO15C4931620D compatible con Ruckus E1MG-BXD-TA

The BlueOptics BO15C4931620D is a high-performance SFP transceiver designed for compatibility with Ruckus E1MG-BXD-TA and other MSA-compliant equipment. This BiDi module operates over single-mode fiber at 1.25 Gbps, supporting distances up to 20 km. It features LC simplex connectors, with transmit wavelength at 1490 nm and receive at 1310 nm. Built with metal housing and low power consumption (<1.0W), it supports DDM/DOM for real-time monitoring. Ideal for Gigabit Ethernet applications in enterprise networks.

Advantages

Reliable BiDi technology reduces fiber infrastructure costs by using a single fiber strand. Hot-swappable design simplifies installation and maintenance. MSA compliance ensures broad compatibility with various switches and routers. Low power consumption and wide operating temperature range (0°C to 70°C) make it suitable for diverse environments.

Suitable for

• Ruckus E1MG-BXD-TA switches and routers
• Gigabit Ethernet connections over single-mode fiber
• Metro and access networks requiring 20 km reach
• Data centers and enterprise LANs

Key specifications

• Module Type: SFP
• Data Rate: 1.25 Gbps
• Max Distance: 20 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Simplex
• Wavelength (TX): 1490 nm
• Wavelength (RX): 1310 nm
• Bi-directional (BiDi): Yes
• DDM/DOM Support: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 1.0 W
• Hot-Swappable: Yes
• MSA Compliant: Yes
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, ensure your equipment supports BiDi SFP modules and the correct wavelength pairing. This transceiver is a cost-effective alternative to OEM modules, offering full compatibility and reliability.
