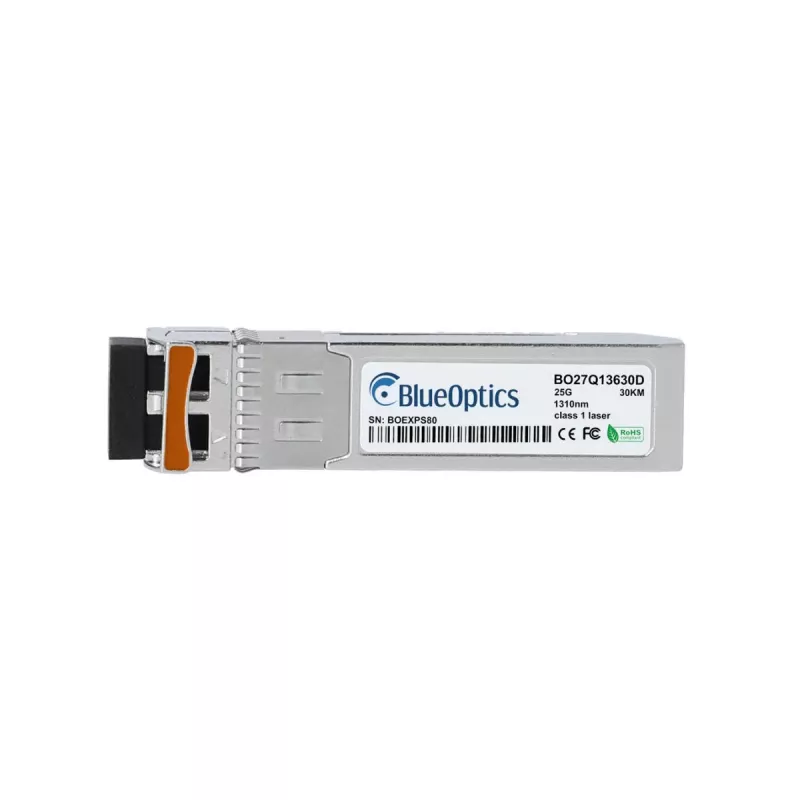

BlueOptics SFP28-25G-ERL-30-TL-BO Módulo transceptor SFP28, 25GBASE-ERL, 30 km, 1310 nm, LC dúplex, SMF, para TP-Link

The BlueOptics SFP28-25G-ERL-30-TL-BO is a high-performance SFP28 transceiver module designed for 25 Gigabit Ethernet applications. It is fully compatible with TP-Link switches and other MSA-compliant devices, delivering reliable connectivity over single-mode fiber at distances up to 30 km. This module is ideal for enterprise data centers, service provider networks, and high-bandwidth campus backbones.

Advantages

This transceiver offers a cost-effective solution for upgrading network infrastructure to 25 Gbps speeds while maintaining backward compatibility with existing SFP28 ports. Its low power consumption (<1.5 W) and hot-pluggable design ensure minimal downtime during installation or replacement. The rugged metal housing provides durability in demanding environments.

Suitable for

• Enterprise and data center networks requiring high-speed 25 Gbps links
• Service provider access and aggregation networks
• Campus backbone connections over single-mode fiber
• TP-Link compatible switches and routers

Key specifications

• Form Factor: SFP28
• Data Rate: 25 Gbps
• Max Distance: 30 km
• Wavelength: 1310 nm
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Duplex
• DDM/DOM Support: Yes
• Operating Temperature: 0°C to 70°C
• Compatibility: TP-Link (and MSA compliant)
• Standard: 25GBASE-ERL
• Transmitter Type: DFB Laser
• Receiver Type: APD
• Power Supply: 3.3V
• Hot-Pluggable: Yes
• Power Consumption: <1.5 W
• Protocol: Ethernet
• Media Interface: Optical
• Housing Material: Metal

Recommendations

For optimal performance, use with single-mode fiber (OS2) and ensure proper cleaning of LC connectors. This module is a direct replacement for TP-Link original transceivers, offering comparable performance at a lower cost.
