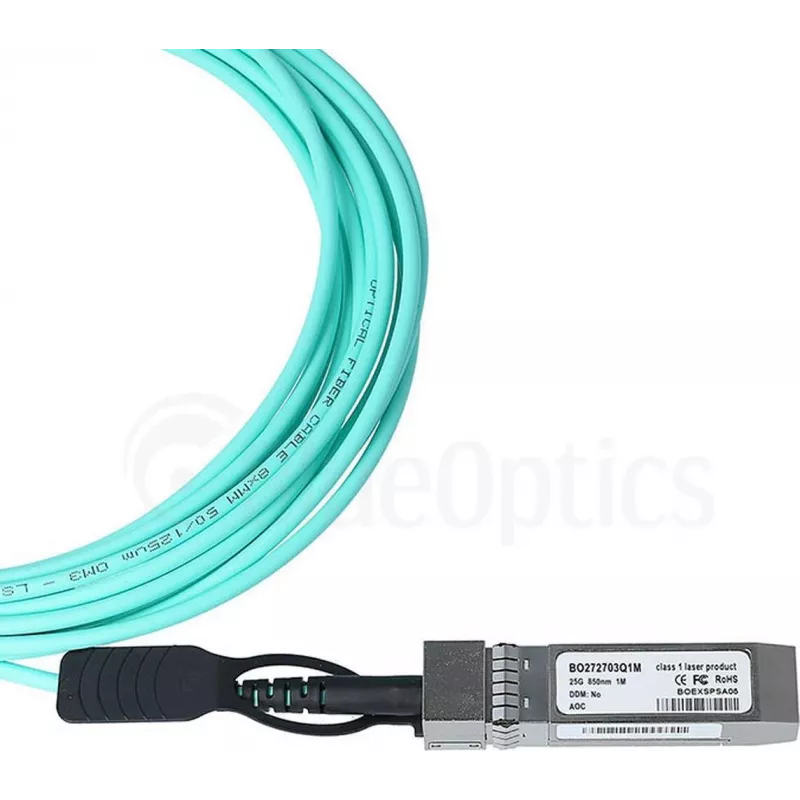

BlueOptics SFP28-AOC-20M-RW-BO cable óptico activo 25G, 20m, aqua

Active Optical Cable (AOC) delivering 25 Gbps data rate over 20 meters with integrated SFP28 transceivers on both ends. This cable supports InfiniBand EDR and 25 Gigabit Ethernet, making it a strong fit for high-density data center interconnects and high-performance computing clusters.

Advantages

Low latency and high EMI/RFI immunity ensure reliable signal integrity in electrically noisy environments. The LSZH jacket provides safety in case of fire, and the hot-pluggable design allows for easy installation without powering down equipment.

Suitable for

• Data center top-of-rack to end-of-row connections
• High-performance computing (HPC) clusters
• Enterprise networking requiring 25GbE or InfiniBand EDR

Key specifications

• Cable Type: Active Optical Cable (AOC)
• Connector Type: SFP28 to SFP28
• Data Rate: 25 Gbps
• Cable Length: 20 meters
• Cable Color: Aqua
• Protocol Support: InfiniBand EDR, 25 Gigabit Ethernet
• Fiber Type: Multimode Fiber (MMF)
• Hot-Pluggable: Yes
• Power Consumption: < 1W per end (typical)
• Voltage Supply: 3.3V
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: MSA Compliant, RoHS, CE, FCC
• Jacket Material: LSZH

Recommendations

Ideal for short to medium reach 25G connections where low latency and high reliability are critical. Pair with compatible SFP28 ports on switches, NICs, or servers.
