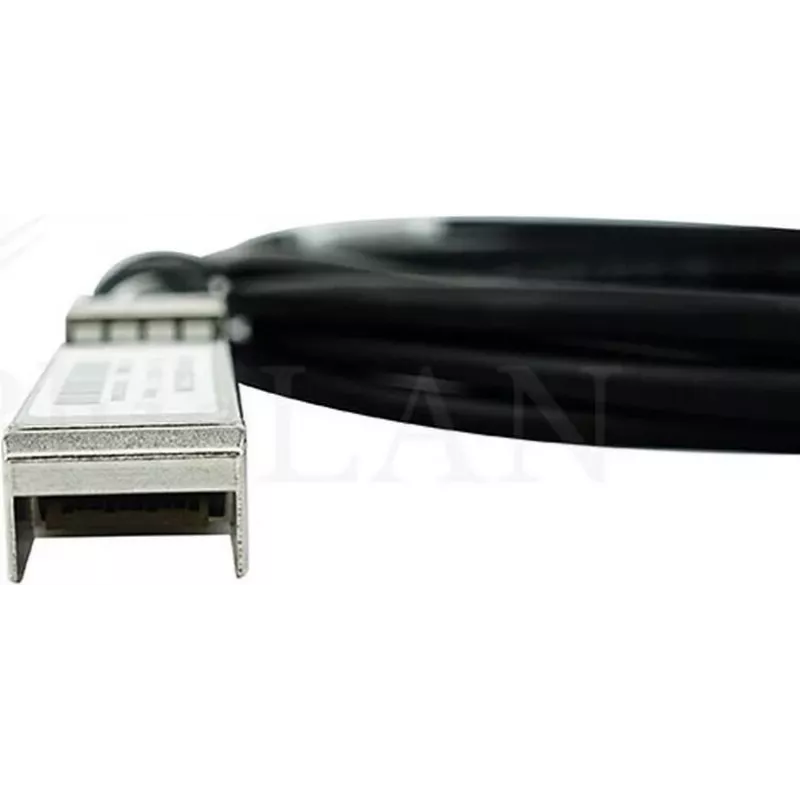

BlueOptics Supermicro CBL-NTWK-0944-SS28C50M cable de cobre direct attach SFP28 pasivo BlueLAN 25GBASE-CR compatible, 5m, AWG26

The BlueOptics BlueLAN CBL-NTWK-0944-SS28C50M-BL is a high-performance, passive Direct Attach Copper (DAC) cable designed for 25 Gigabit Ethernet connectivity. This SFP28 to SFP28 cable is fully compatible with Supermicro equipment and offers a cost-effective, low-latency solution for short-range interconnects in data centers and enterprise networks.

Advantages

This passive DAC cable provides reliable 25 Gbps data transmission over a 5-meter length with minimal power consumption (<0.1W). It is hot-pluggable, RoHS compliant, and built with 26 AWG wire for flexibility and durability. The cable eliminates the need for separate transceivers, reducing cost and complexity.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing (HPC) clusters
• Enterprise network switches and routers
• Storage area networks (SAN) and Fibre Channel applications

Key specifications

• Brand: BlueOptics
• Model: CBL-NTWK-0944-SS28C50M-BL
• MPN: CBL-NTWK-0944-SS28C50M-BL
• EAN: 4063232262093
• Cable Type: Direct Attach Copper (DAC)
• Connector Type: SFP28 to SFP28
• Data Rate: 25 Gbps
• Ethernet Standard: 25GBASE-CR
• Cable Length: 5 meters (16.4 ft)
• Wire Gauge: 26 AWG
• Impedance: 100 Ohm
• Protocol Support: Ethernet, Fibre Channel, InfiniBand
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: <0.1W
• Compliance: RoHS, CE, FCC
• Jacket Material: PVC
• Hot-Pluggable: Yes

Recommendations

For optimal performance, ensure your network equipment supports SFP28 interfaces and 25GBASE-CR standard. This cable is ideal for short-distance, high-speed connections within racks or between adjacent racks.
